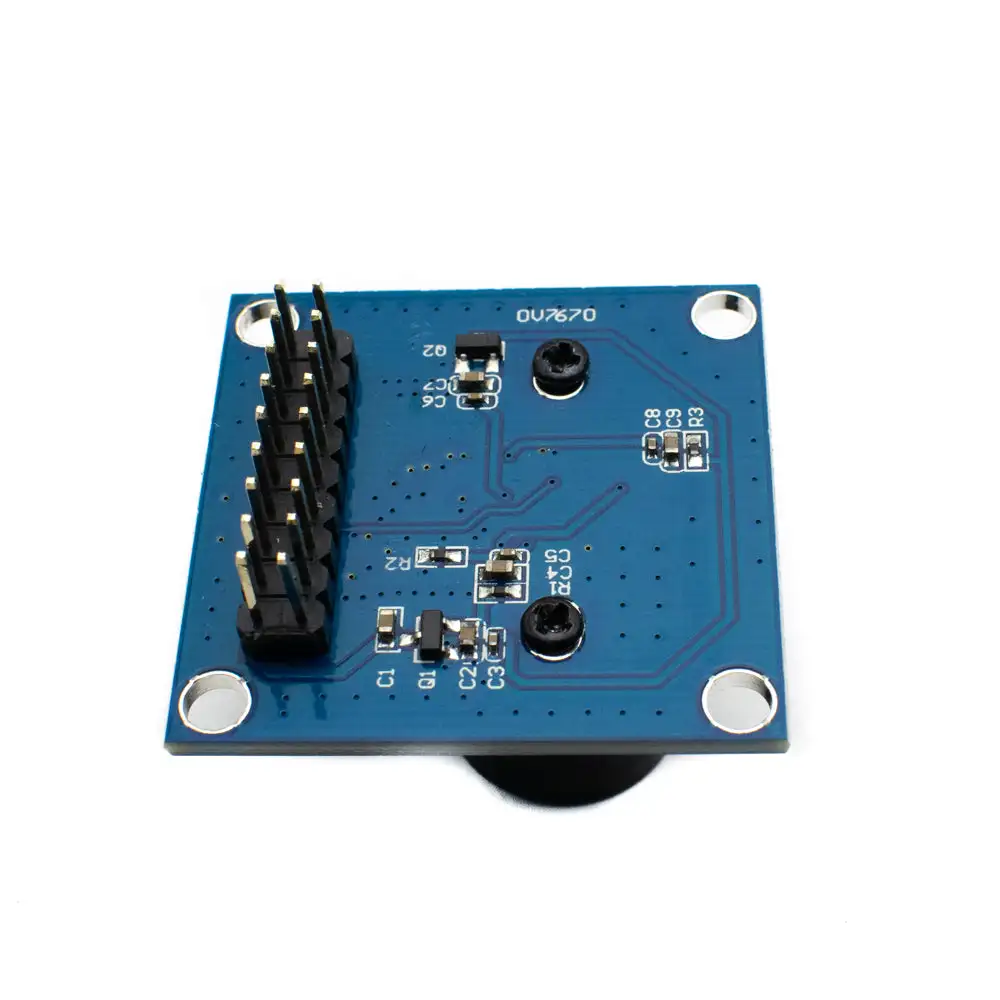

CMOS OV7670 Camera Module

The OV7670 CAMERACHIPTM is a low voltage CMOS image sensor with the capability of a single-chip VGA camera and image processor in a compact footprint device. The OV7670 captures full-frame, sub-sampled, or windowed 8-bit pictures in a variety of formats using the Serial Camera Control Bus (SCCB) interface. This device contains an image array that can operate at up to 30 frames per second (fps) in VGA and allows the user total control over picture quality, formatting, and output data transmission.

The SCCB interface also allows you to programme all of the necessary image processing operations, such as exposure control, gamma, white balance, colour saturation, hue adjustment, and more. Furthermore, OmniVision CAMERACHIPs employ proprietary sensor technology to improve image quality by reducing or eliminating common lighting/electrical sources of image contamination, such as fixed pattern noise (FPN), smearing, blooming, and so on, in order to produce a clean, fully stable colour image.

Pin Number

Pin Type

Description

1

VCC

+3.3V DC power input

2

GND

Ground

3

SCL

I2C Serial Clock

4

SDA

I2C Serial Data I/O

5

VSYNK

Vertical Sync output; Active High; Indicates active frames

6

HREF

Horizontal Reference; Active High; Indicates active pixels

7

PCLK

Pixel clock output from the sensor

8

XCLK

Master clock into the sensor

9

Dout9

Pixel Data Outuput 9(MSB)

10

Dout8

Pixel Data Output 8

11

Dout7

Pixel Data Output 7

12

Dout6

Pixel Data Output 6

13

Dout5

Pixel Data Output 5

14

Dout4

Pixel Data Output 4

15

Dout3

Pixel Data Output 3

16

Dout2

Pixel Data Output 2(LSB)

17

RESET

18

PWDN

Operating voltage

3.3V DC

Active Array Size

640x480

Optical Size

⅙ inch

Power Requirements

Active: 60 mW typical (15fps VGA YUV format)

Standby: <20 μA

S/N Ratio

46 dB

Temperature Range

Operation: -30°C to 70°C

Stable Image: 0°C to 50°C
