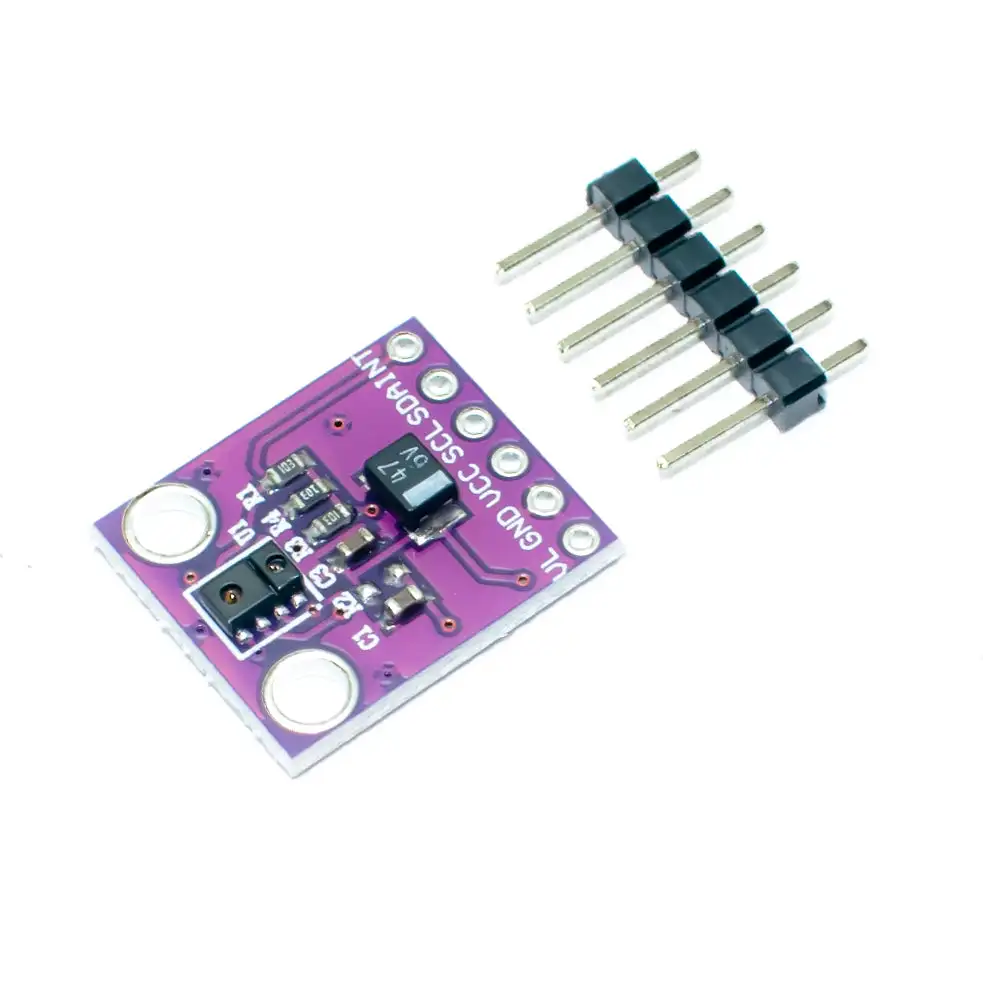

CJMCU 9930 APDS-9930 Digital Proximity And Ambient Light Sensor

This is the CJMCU 9930 APDS-9930 Digital Proximity And Ambient Light Sensor. In a single 8-pin package, the APDS-9930 provides digital ambient light sensing (ALS), an IR LED, and a comprehensive proximity detection system. The proximity function provides plug-and-play detection up to 100 mm (without front glass), obviating the need for end equipment or sub-assembly factory calibration.From broad sunlight to dark interiors, the proximity sensing feature works wonderfully. The large dynamic range also enables operation behind dark glass, such as a cell phone, enabling short-range detection. An inbuilt state machine allows the device to enter a low-power mode in between ALS and proximity readings, resulting in extremely low average power consumption. In very low light or behind a dark faceplate, the ALS delivers a photopic response to light intensity.

Proximity detection
