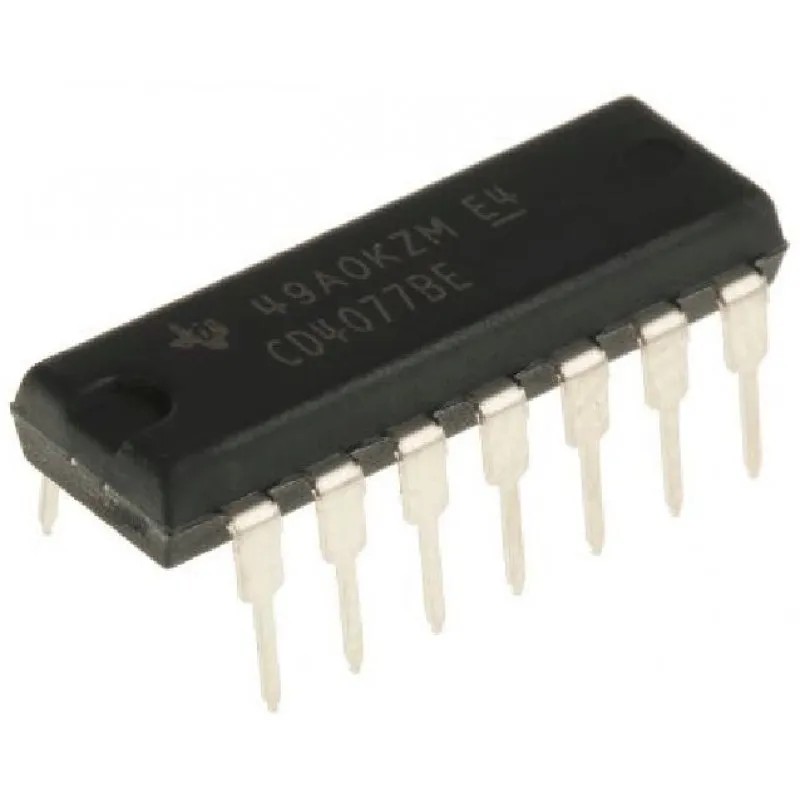

CD4077 Quad 2-Input Exclusive-NOR Gate IC DIP-14 Package

CD4077 belongs to the CD4000 IC series. CD4077 is a Quad 2-input exclusive NOR gate gate, designed by using the complementary MOS (CMOS) technology, integrated with P & N type enhancement mode transistors. This IC allows design engineers to directly implement positive logic exclusive NOR gate. CD4077 has a wide range working voltages and conditions. The offers many features such as high noise immunity and static protection through clamping diodes.

What is EXCLUSIVE-NOR Gate?

XNOR Gate is a type of digital logic gate that receives two inputs and produces one output. All inputs are treated with the same logic, responding equally to similar inputs. It is also known as an ‘Equivalence Gate’. If all inputs to the XNOR gate are 0, the gate will produce a 1. If all inputs are 1, the gate will also produce a 1. However, if any input to the gate differs from the other, the gate will output a 0.

Applications:-

• Logical Comparators
• Adders/Subtractors
• Parity Generators and Checkers

Features:-

• Wide supply voltage range 3.0V to 15V
• High noise immunity 0.45 VDD typ.
• Low power TTL Fan out of 2 driving 74L
• compatibility or 1 driving 74LS
• CD4077BÐEquivalent to MC14077B
• Four Independent 2-input EXCLUSIVE-NOR Gates
• Wide Operating Voltage Range
• Standard CD4077 14-Pin CMOS IC
• Equivalent to MC14077, HCF4077, TC4077

Specifications:-

• Quad Exclusive NOR Gates
• Supply Voltage Range: 3 to 18V
• Input Current: ±10mA
• Power Dissipation: 500mW
• Quiescent Current Max.: 0.25µA
• Low level Output Voltage Max.: 0.05V
• High level Output Voltage Min.: 4.95V
• Low level Input Voltage Max.: 1.5V
• High level Input Voltage Min.: 3.5V
• Propagation Delay Time Max.: 350ns
• Package: DIP-14

Package Includes:-

1 x CD4077 Quad 2-Input Exclusive-NOR Gate IC DIP-14 Package
