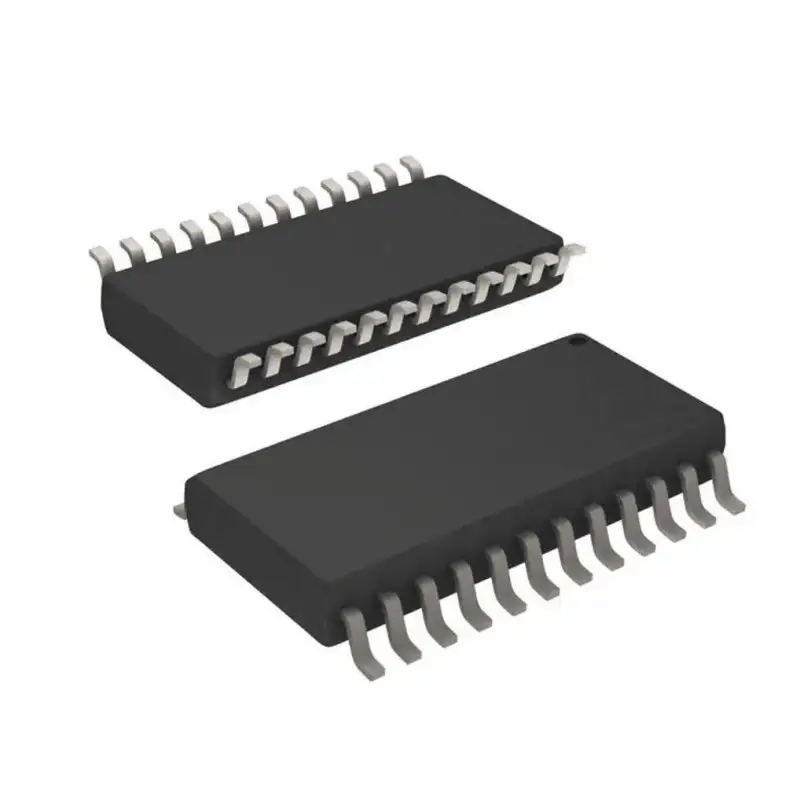

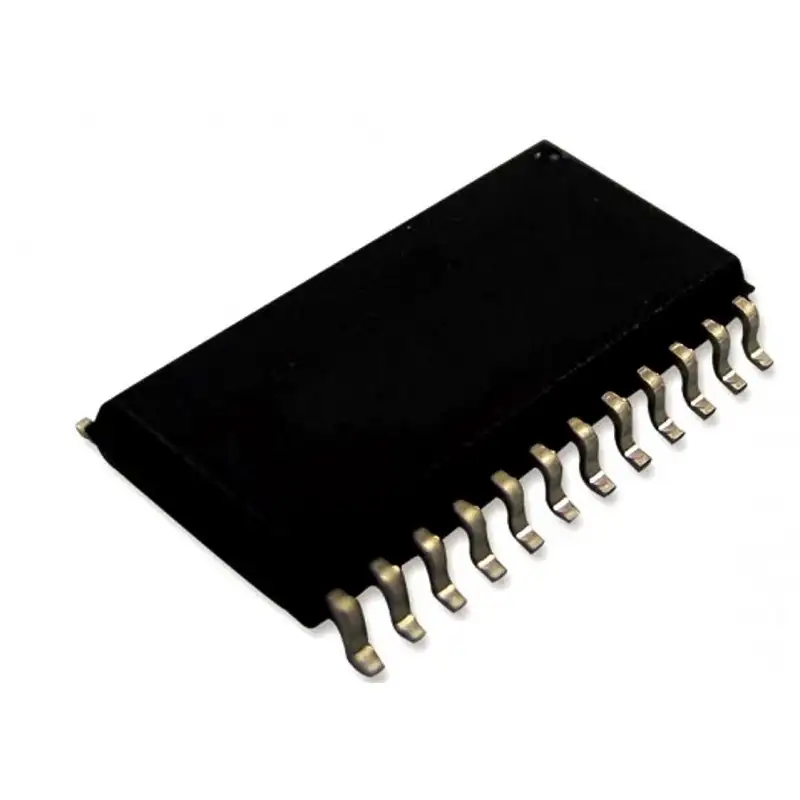

The CD4067 CMOS analog multiplexers/ demultiplexers are digitally controlled analog switches having low ON Impedance, low OFF leakage current, and internal address decoding. In addition, the ON resistance is relatively constant over the full input-signal range. The CD4067 is a 16 channel multiplexer with four binary control inputs, A, B, C, D and an inhibit input, arranged so that any combination of the inputs selects one switch. The inputs permit selection of one of eight pairs of switches. A logic “1†present at the inhibit input turns all channels off. The CD4067 are supplied in these 24 lead outline packages:
Braze Seal DIP: H4V †H6M
Frit Seal DIP: H1Z †HFN
Ceramic Flatpack: H4P †H4P
Features:-
• High Voltage Types (20V Rating)
• CD4067 Single 16 Channel Multiplexer/Demultiplexer
• Low ON Resistance: 125Ω (typ) Over 15Vp-p Signal Input Range for VDD - VSS = 15V
• High OFF Resistance: Channel Leakage of ±10pA (typ) at VDD - VSS = 18V
• Matched Switch Characteristics: RON = 5Ω (typ) for VDD - VSS = 15V
• Very Low Quiescent Power Dissipation Under All Digital Control Input and Supply Conditions: 0.2µW (typ) at VDD - VSS = 10V
• Binary Address Decoding on Chip
• 5V, 10V and 15V Parametric Ratings
• 100% Tested for Quiescent Current at 20V
• Maximum Input Current of 1µA at 18V Over Full Package Temperature Range; 100nA at 18V and +25oC
• Standardized Symmetrical Output Characteristics
Applications:-
• Analog and Digital Multiplexing and Demultiplexing
• A/D and D/A Conversion
• Signal Gating: When these devices are used as demultiplexers the “CHANNEL IN/OUT†terminals are the outputs and the “COMMON OUT/IN†terminals are the inputs.
Specification:-
Symbol | Parameter | Values |
VDD | DC Supply Voltage | -0.5V to +20V |
VIN | Input Voltage | -0.5V to VDD +0.5V |
TS | Storage Temperature | −65°C to +150°C |
PD | Power Dissipation | 700 mW |
TL | Lead Temperature | 265°C |
TJ | Operating Temperature Range | -55°C to +125°C |
IC | DC Input Current | ±10mA |
