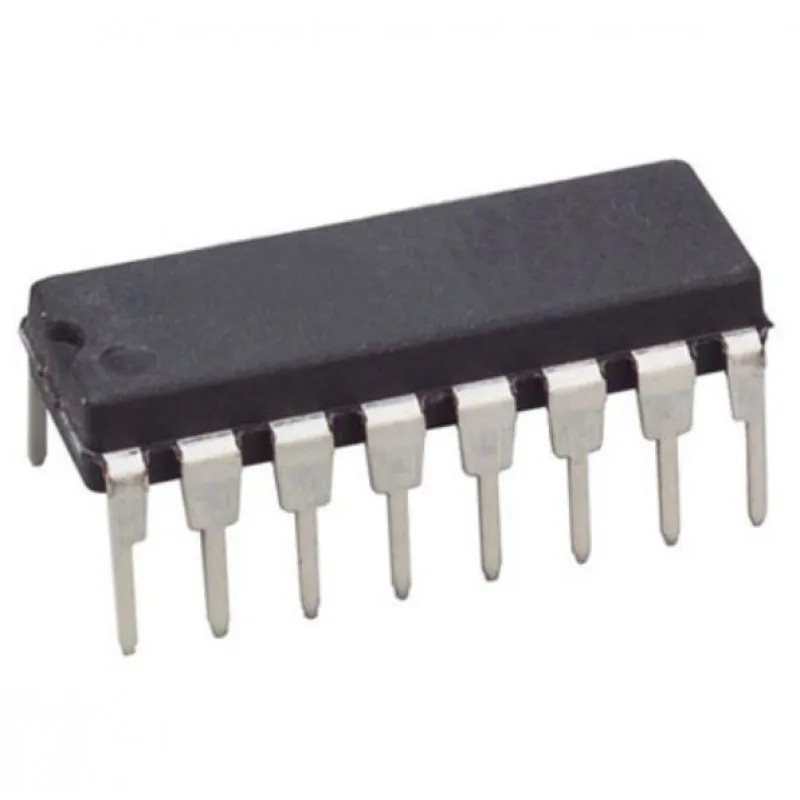

CD4017 Decade Counter IC DIP-16 Package

In Stock

Brand: Generic | SKU: 4799304

₹ 15.00

~~₹ 25.00~~

Save 40%

Tax Included and Shipping Rate Calculated at Checkout

Min Qty: 1

Check Delivery Availability:

Enter your pincode to check delivery options

Offer & Other Details

Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
Sales Assistance: Contact us +91 8903831010 for personalized advice.

Description

The CD4017 is a 5-stage divide-by-10 Johnson counter with 10 decoded outputs and a carry out bit. The configuration of the CD4017 permits medium speed operation and assures a hazard free counting sequence. The 10/8 decoded outputs are normally in the logical â€œ0â€ state and go to the logical â€œ1â€ state only at their respective time slot. Each decoded output remains high for 1 full clock cycle. The carry-out signal completes a full cycle for every 10/8 clock input cycles and is used as a ripple carry signal to any succeeding stages.

Features:-

Wide supply voltage range: 3.0V to 15V
High noise immunity: 0.45 VDD (typ.)
Low power Fan out of 2 driving 74L TTL compatibility: or 1 driving 74LS
Medium speed operation: 5.0 MHz (typ.) with 10V VDD
Low power: 10 ÂµW (typ.)
Fully static operation

Specifications:-

Parameter	Specification
Input Voltage (VIN)	âˆ’0.5 VDC to VDD +0.5 VDC
Storage Temperature (TS)	âˆ’65Â°C to +150Â°C
DC Supply Voltage (VDD)	âˆ’0.5 VDC to +18 VDC
Power Dissipation (PD): Dual-In-Line	700 mW
Lead Temperature (TL)	260Â°C
