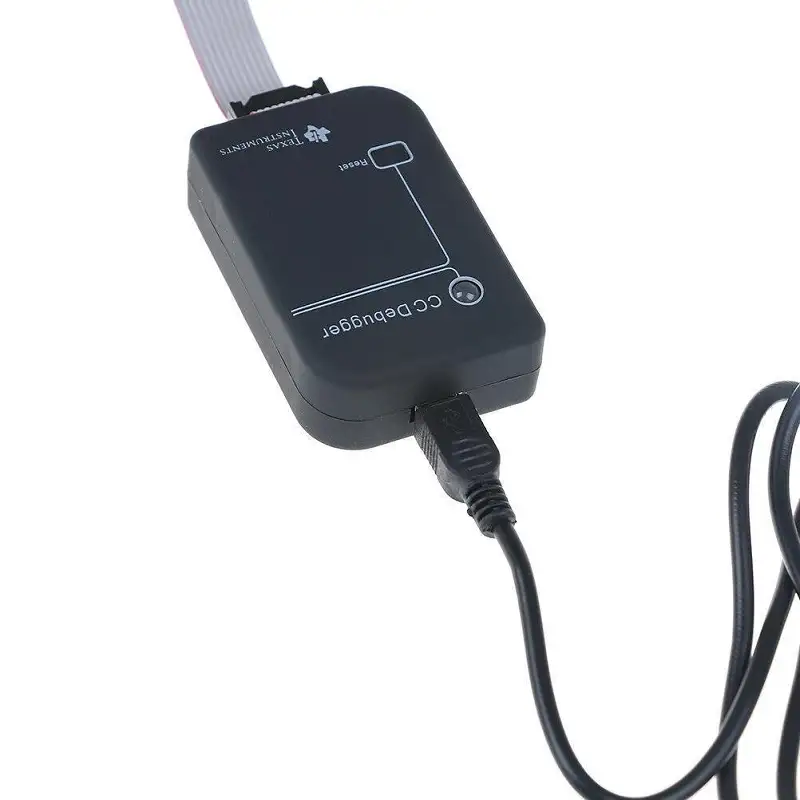

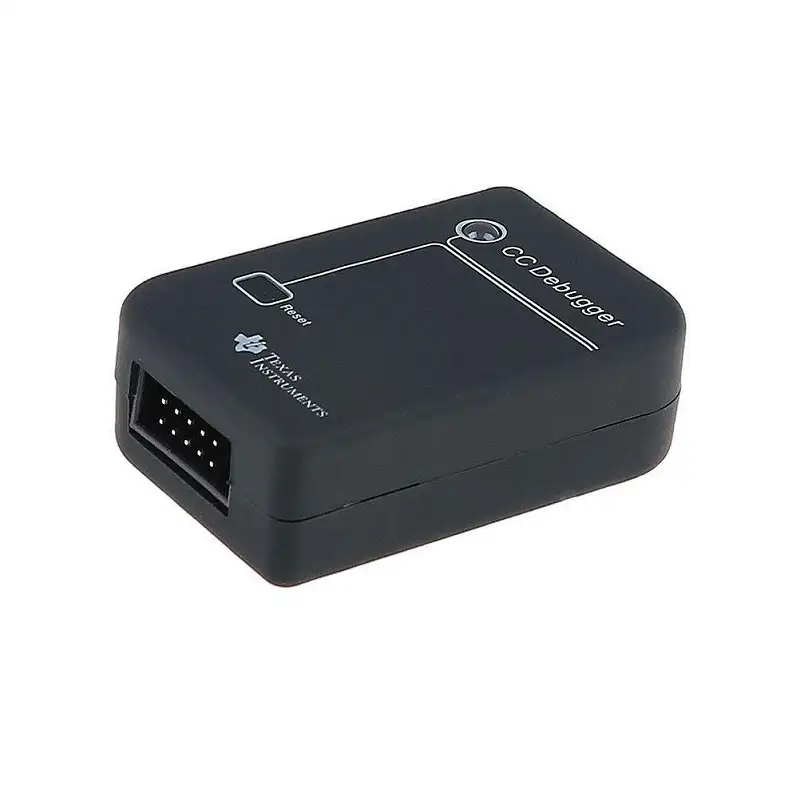

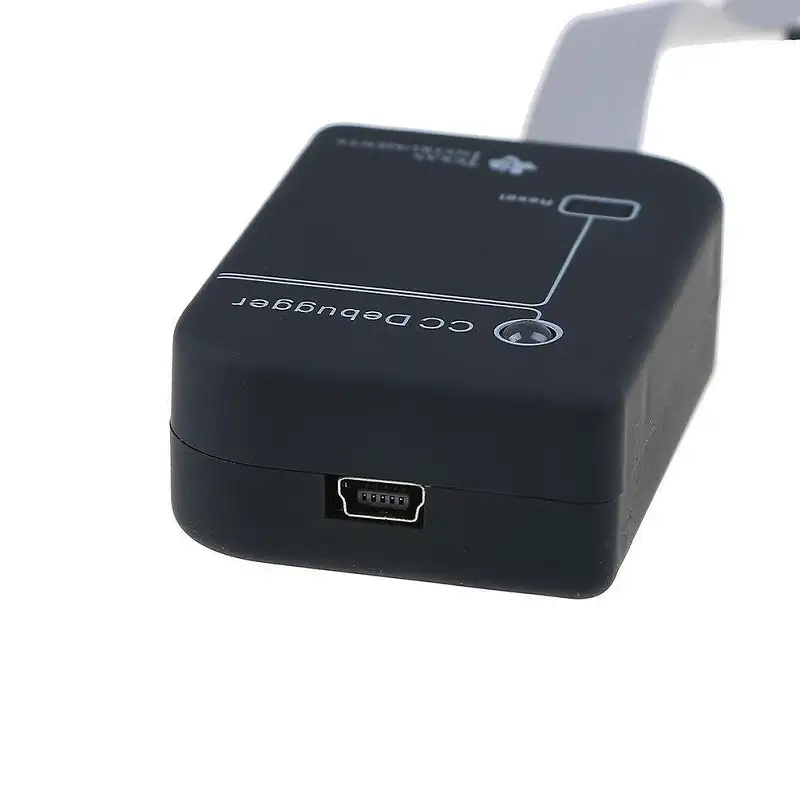

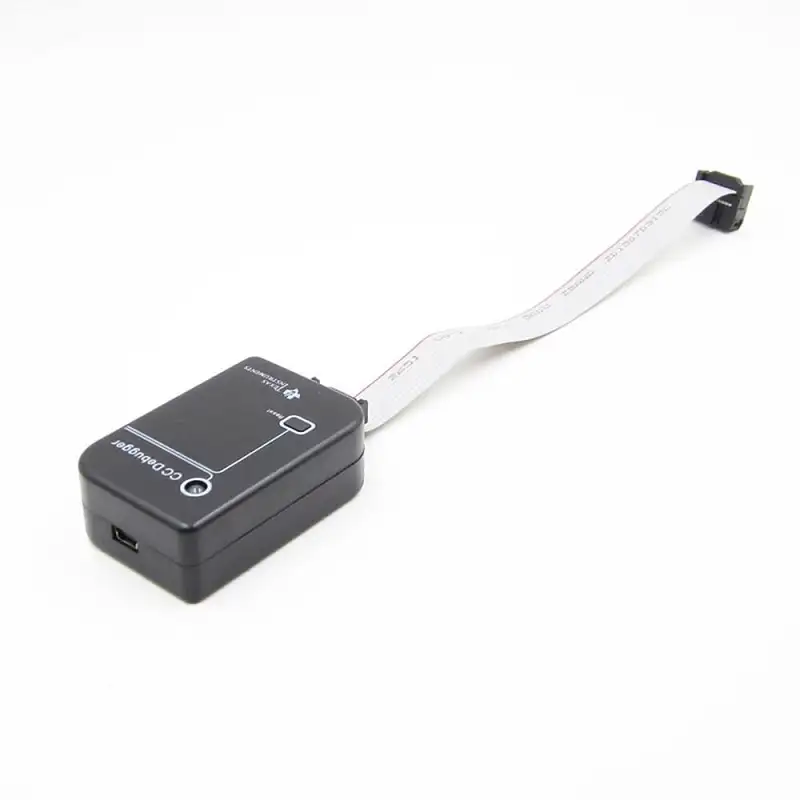

CC-DEBUGGER - Programmer for RF Sys-on-Chips

The CC Debugger is a small programmer and debugger for the TI Low Power RF System-on-Chips. It can be used together with IAR Embedded Workbench for 8051 (version 7.51A or later) for debugging and SmartRF Flash Programmer for flash programming. The CC Debugger can also be used for controlling selected devices from SmartRF Studio.

Features:

1. CC-Debugger can be used to program and debug the following 8051-based system-on-chips from Texas Instruments:

• • CC1110, CC1111
  • CC2430, CC2431
  • CC2510, CC2511
  • CC2530, CC2531, CC2533
  • CC2540, CC2541
  • CC2543, CC2544, CC2545

2.It is possible to control the same devices from SmartRF Studio. In addition, CC-Debugger can control the following transceivers from SmartRF Studio:

• • CC1120, CC1121, CC1125, CC1175
  • CC1100, CC1101, CC110L, CC113L, CC115L
  • CC2500, CC2520

3.It can also be used to program the PurePath Wireless devices:

• • CC8520, CC8521
  • CC8530, CC8531

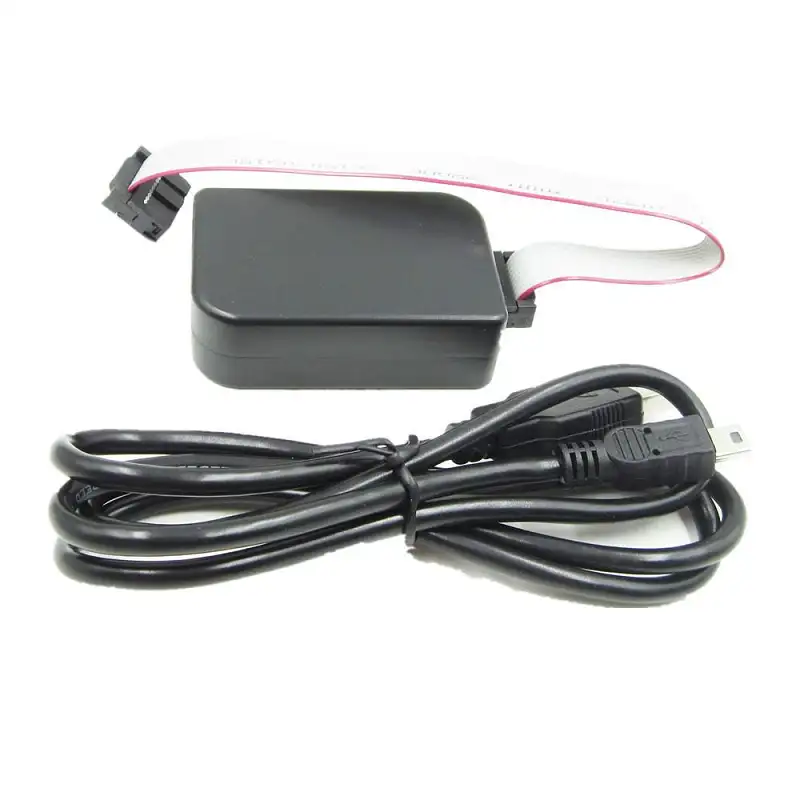

Package Includes:

1 x CC Debugger

1 x USB cable

Specifications :-

Minimum Target Voltage	1.2V
Maximum Target Voltage	3.6V
Operating Temperature	0C to 85C
Regulated Voltage on CC Debugger	3.3V
Maximum Target Current	200mA
Supported Operating Systems	Windows 7 Windows 8 Windows XP SP2/SP3 Windows 2000
Length (mm)	40
Width (mm)	60
Height (mm)	15
Weight (gm)	25
