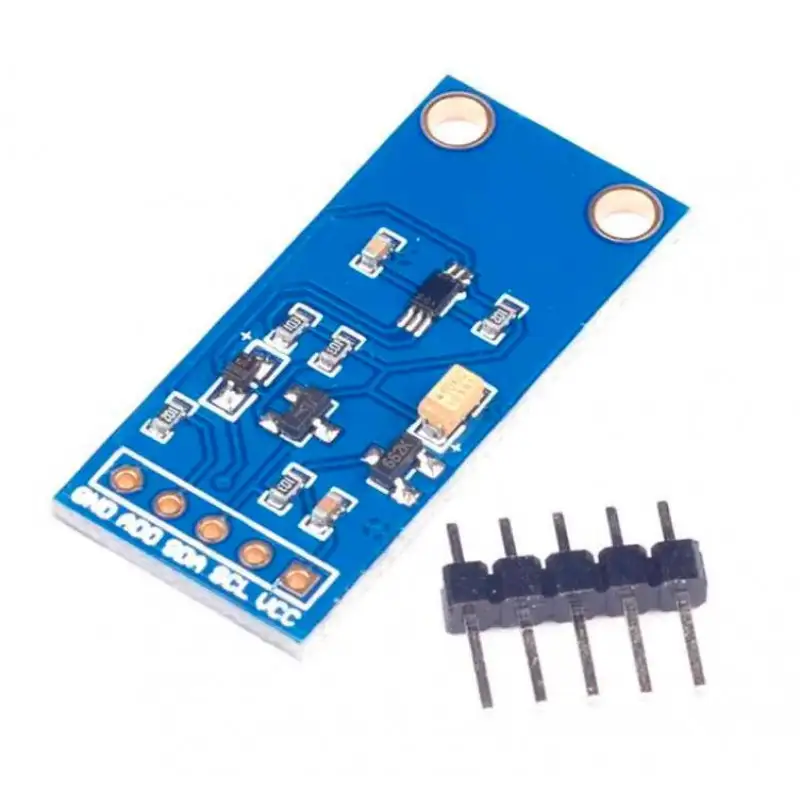

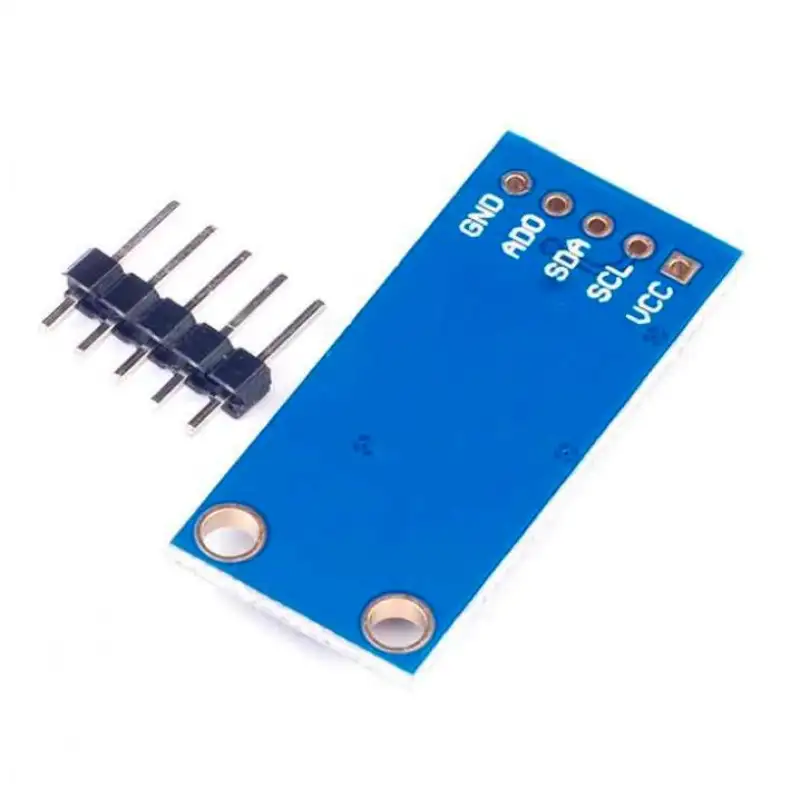

BH1750 - Light Intensity Sensor Module

Description:-

BH1750 module is a digital ambient light sensor, IIC I2C communication. Good for arduino light detection. It is a  light intensity sensor breakout board with a 16 bit AD converter built-in which can directly output a digital signal, there is no need for complicated calculations. This is a more acurate and easier to use version of the simple LDR which only outputs a voltage that needs to be calculated in order to obtain meaningful data. With the BH1750 Light Sensor intensity can be directly measured by the luxmeter, without needing to make calculations. The data which is output by this sensor is directly output in Lux (Lx). When objects which are lighted in homogeneous get the 1 lx luminous flux in one square meter ,their light intensity is 1lx. Sometimes to take good advantage of the illuminant, you can add a reflector to the illuminant.So that there will be more luminous flux in some directions and it can increase the ilumination of the target surface.

Features:-

• Digital Light intensity detection module: GY-30 Chip : BH1750FVI
• Power supply: 3V-5V power
• Light range 0-65535 lx
• Sensor built-in : 16 bitAD converter
• Direct digital output, bypassing the complex calculation, bypassing the calibration
• Don't distinguish between ambient light
• Close to the spectral characteristics of visual acuity
• widely use to 1-lux high precision measurement
• Standard NXP I2C communication agreement
• Low Current by power down function * 50Hz / 60Hz Light noise reject-function
• Light source dependency is little. ( ex. Incandescent Lamp. Fluorescent Lamp. Halogen Lamp. White LED. Sun Light)
• Small measurement variation ( /- 20%).
