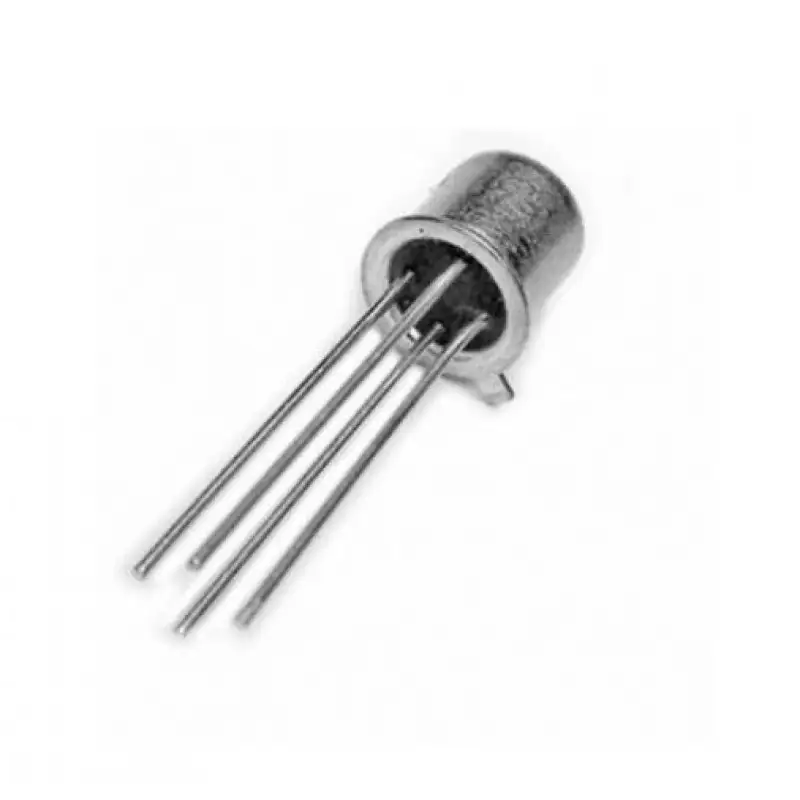

BFW10 Philips N-Channel Depletion JFET 30V 20mA TO-72 Package

In Stock

Brand: Generic   |   SKU: 1983269

144.00

₹ 266.00

Save 46%
Tax Included and Shipping Rate Calculated at Checkout

Enter your pincode to check delivery options

Offer & Other Details

  • Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
  • Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
  • Sales Assistance: Contact us +91 8903831010 for personalized advice.

Description

BFW10 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits.


Features:-

• Metal TO-72 can package

• Advanced process technology

• Low error voltage

• Fast switching speed

• Full-voltage operation

• High power and current handling capability


Detailed Specifications:-

Transistor Polarity N-Channel
Drain-Source Voltage (VDS) 30VDC
Drain-Gate Voltage (VDG) 30VDC
Reverse Gate-Source Voltage (VGSR) 30VDC
Forward Gate Current (IGF) 10mA
Gate-Source Cut-off Voltage (VGS(off)) 8VDC
Gate-Source Voltage (VGS) 7.5VDC
Zero-Gate Voltage Drain Current (IDSS) 20mA
Operating Temperature Range -65 - 150°C
Power Dissipation (PD) 300mW


Related Documents:-

BFW10 JFET Datasheet
