- BD680 PNP Power Darlington Transistor 80V 4A TO-126 Package
Click Image to Preview

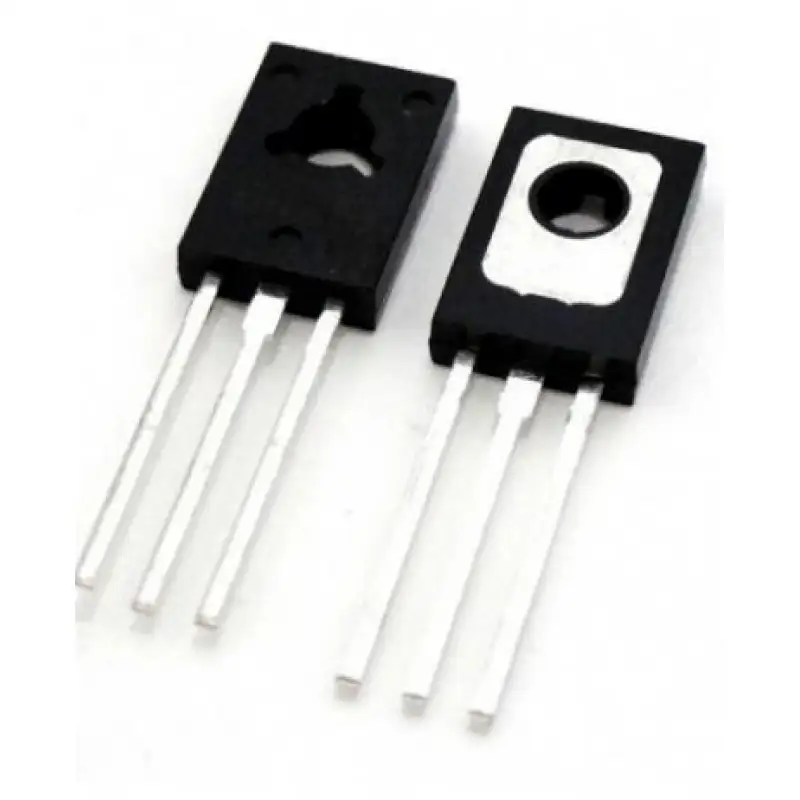

BD680 PNP Power Darlington Transistor 80V 4A TO-126 Package
Brand: Generic | SKU: 2335181
₹ 19.00
₹ 26.00
Enter your pincode to check delivery options
Offer & Other Details
- Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
- Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
- Sales Assistance: Contact us +91 8903831010 for personalized advice.
Description
BD680 is a three layer PNP device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE.
Features:-
• Low saturation voltage
• Simple drive requirements
• High safe operating area
• For low distortion complementary designs
• Easy to carry and handle
Detailed Specifications:-
| Transistor Polarity | PNP |
| Collector−Emitter Voltage (VCEO) | 80V |
| Collector−Base Voltage (VCBO) | 80V |
| Emitter Base Voltage (VEBO) | 5V |
| Continuous Collector Current (Ic) | 4A |
| Continuous Base Current (Ib) | 0.1A |
| Operating Temperature Range | -65 - 150°C |
| Power Dissipation (Pd) | 40W |
| DC Current Gain (hFE) | 750 |
