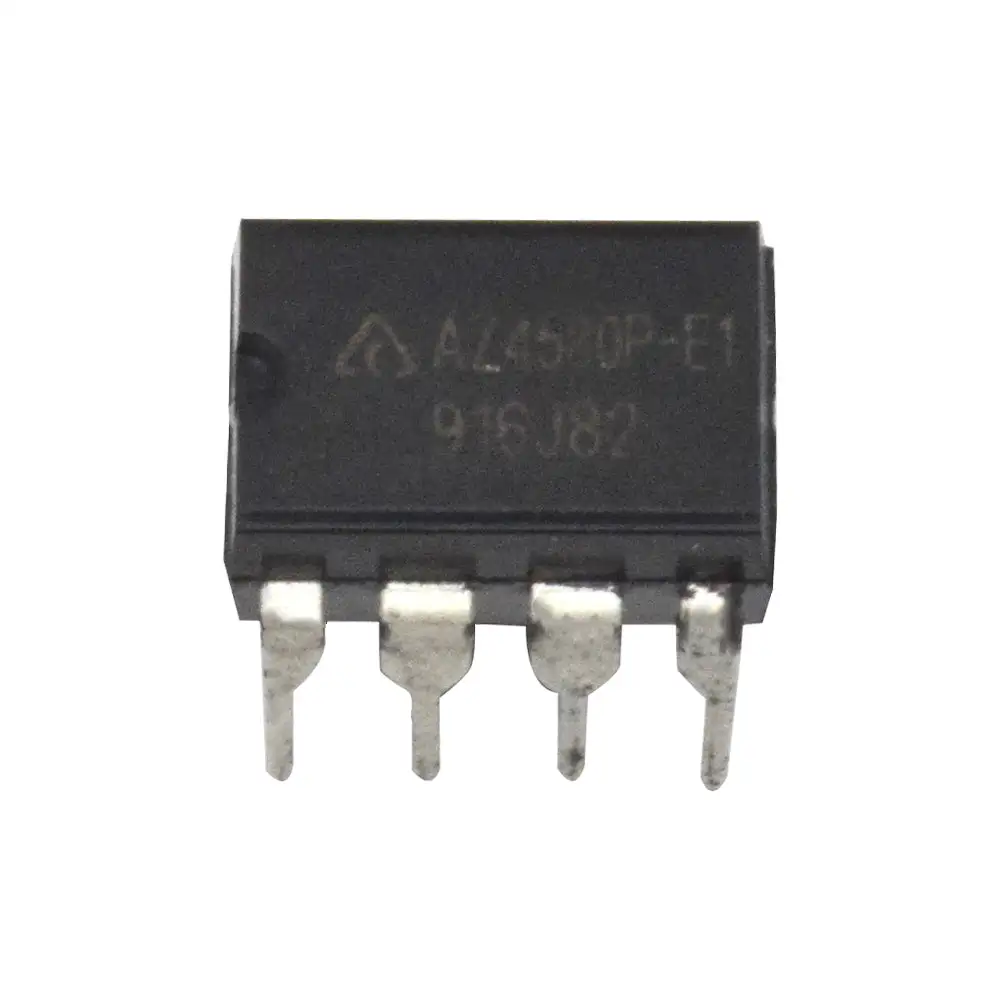

AZ4580P Low Noise Operational Amplifier

AZ4580Pis a type of Low Noise operational amplifier. As we already know, the amplifier is used to amplify the signal; it increases the strength of the weak signal for better transmission. This low-noise operational amplifier is designed to boost the audio signal strength. It can be used in pre-amplifiers, industrial measuring tools, and applications where gain and phase-matched channels are essential. It is made explicitly for audio systems to increase tone control. Internal frequency correction, low noise, low distortion, high gain, and high bandwidth are all features of the IC. The AZ4580 may run on a single power source up to 36V or a dual power supply up to 18V.

Applications:It's used in audio AC -3 Decoder systems, It's used in audio amplifiers.

Pin details: 1- OUTPUT1, 2- INPUT1-, 3- INPUT1+ ,4- VEE, 5-INPUT2+, 6- INPUT2-, 7-OUTPUT2, 8- VCC

Features

Large signal voltage gain 110DB

Low input noise Voltage 0.7Micro Volt

It has 8 Pins

Small size, Highly reliable
