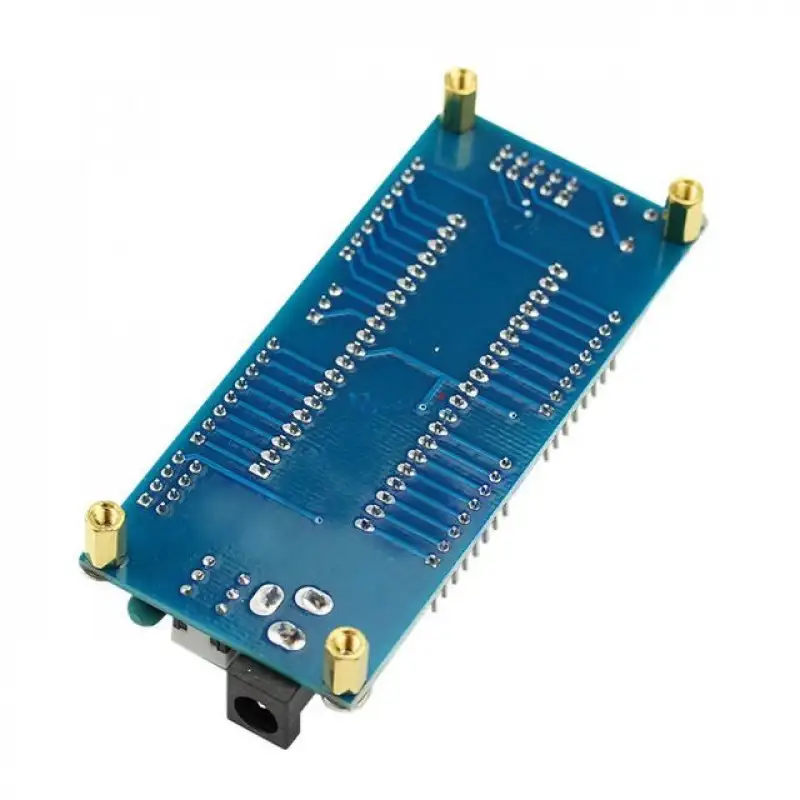

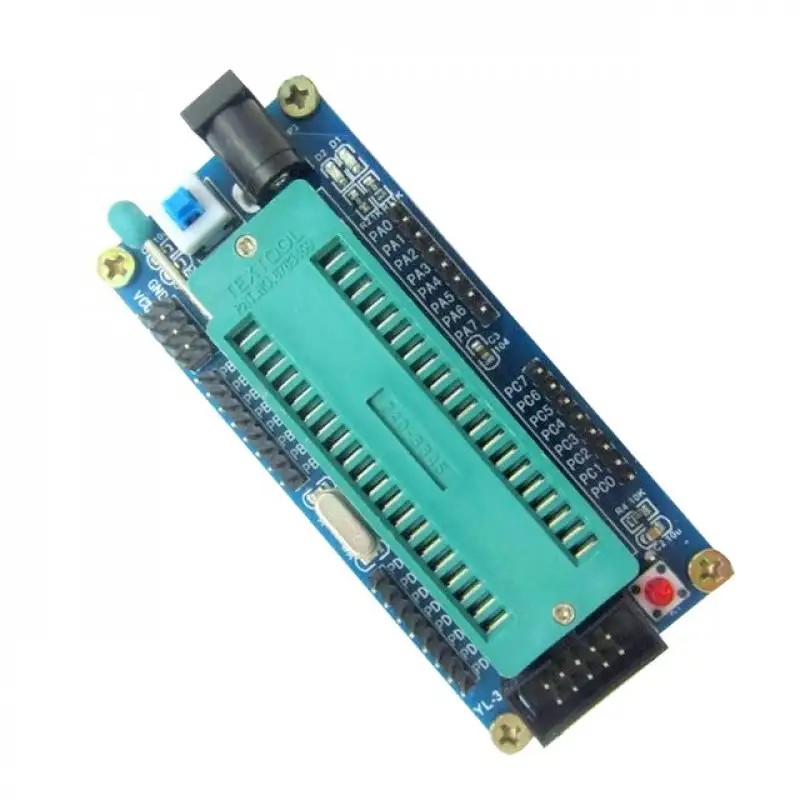

ATMEGA16 ATmega 32 ISP AVR Minimum Development System Board Module

This is ATMEGA16 ATmega 32 ISP AVR Minimum Development System Board Module.

To get a personal Development Board will help to stimulate your intelligence and inspiration. A bare board may sometimes be more helpful than an assembled one for a learner. Come here and have a look at our AVR Minimum System Development Board ISP Atmega16 Atmega32.

Adopting top quality material and with advanced technique, this board is authentically reliable. No soldering and no assembling; you can DIY whatever circuit you prefer. It is really a good assistant during your development.

Note: This minimum system development board without AVR chip, you need purchase for the chip in additional!!!

Features :

1. 32 I/O pin all the leads.
2. Classic ATmega16 minimum system, eliminating the hassle of soldering.
3. Crystal: The socket hole welding facilitates the buyer to replace the crystal, 8M crystal.
4. Support chips: ATmega16/ATmega32 and chip which pin-compatible.
5. Power supply: power adapter or external expansion pin power supply (not support ISP download interface power supply)
6. DC-005 Power Block (supporting the transposon is 5.5*2.1mm).
7. Expand outside 4 channel VCC, GND.
8. Reset: Power-on-reset and reset button.
9. Power LED (D1) and the program run indicator (D2).
10. Standard ISP download interface.

Package Includes :

1 xATMEGA16 ATmega32 AVR Minimum System Board

Specifications :-

Support Chips	ATmega16/ATmega32
Reset Button	YES
Length (mm)	90
Width (mm)	40
Height (mm)	14
Weight (gm)	46
Shipment Weight	0.05 kg
Shipment Dimensions	9 4 3 cm
