AS150 Anti Spark Self Insulating Gold Plated Bullet Connector - 1 Pair

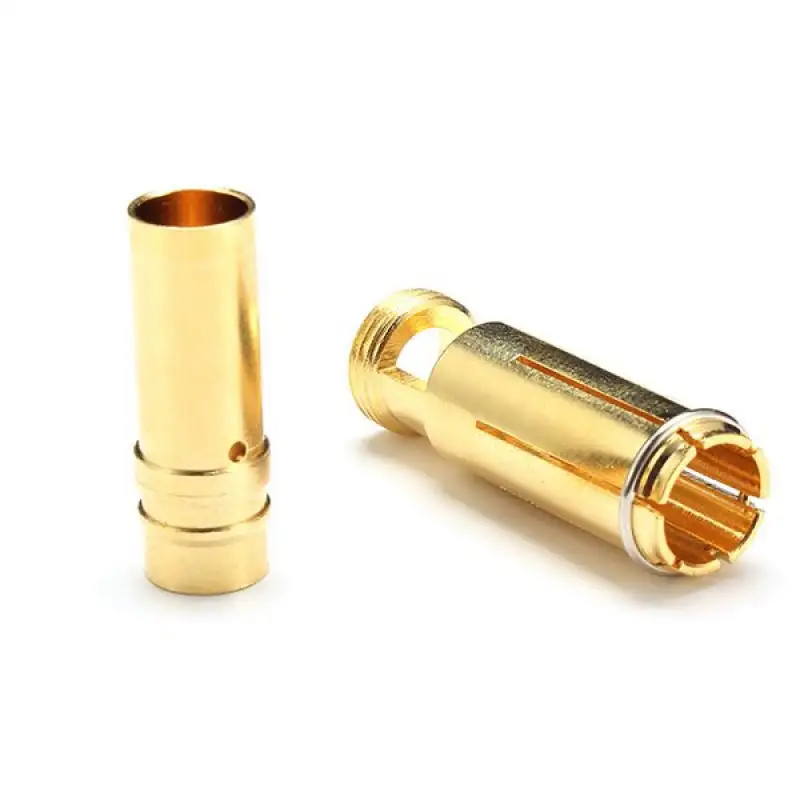

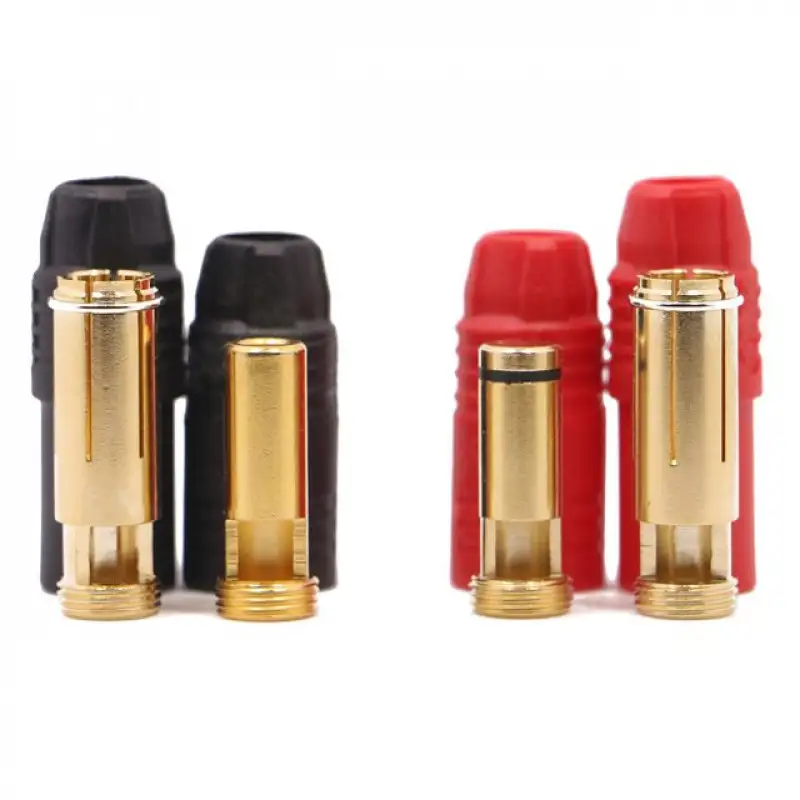

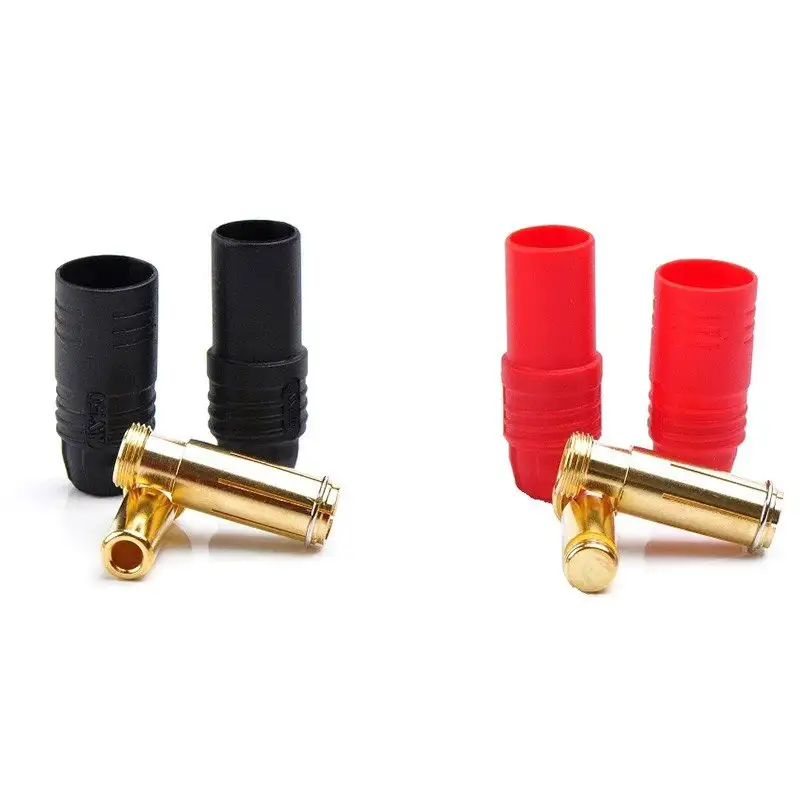

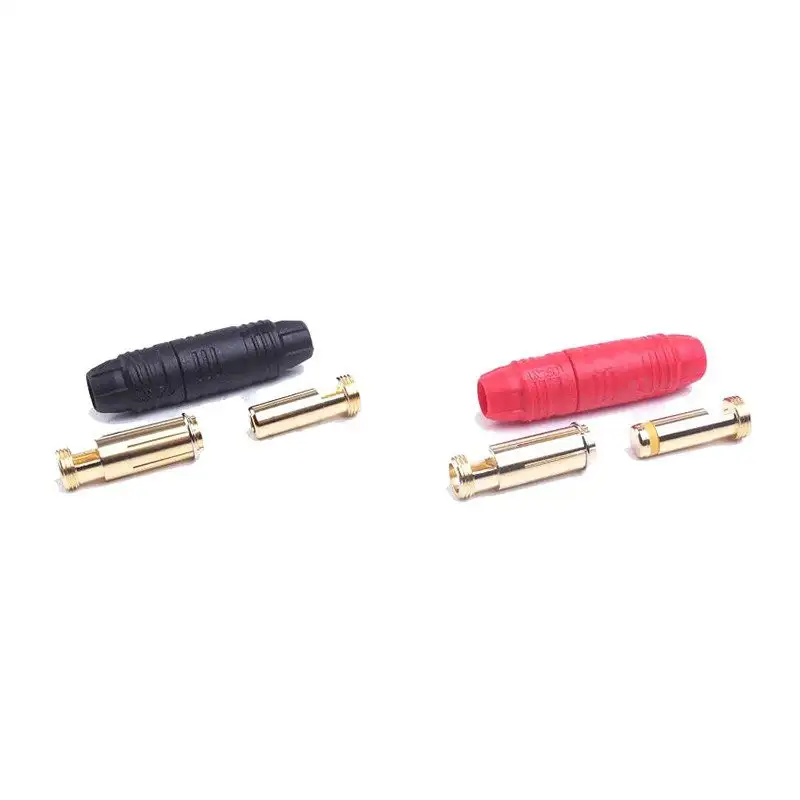

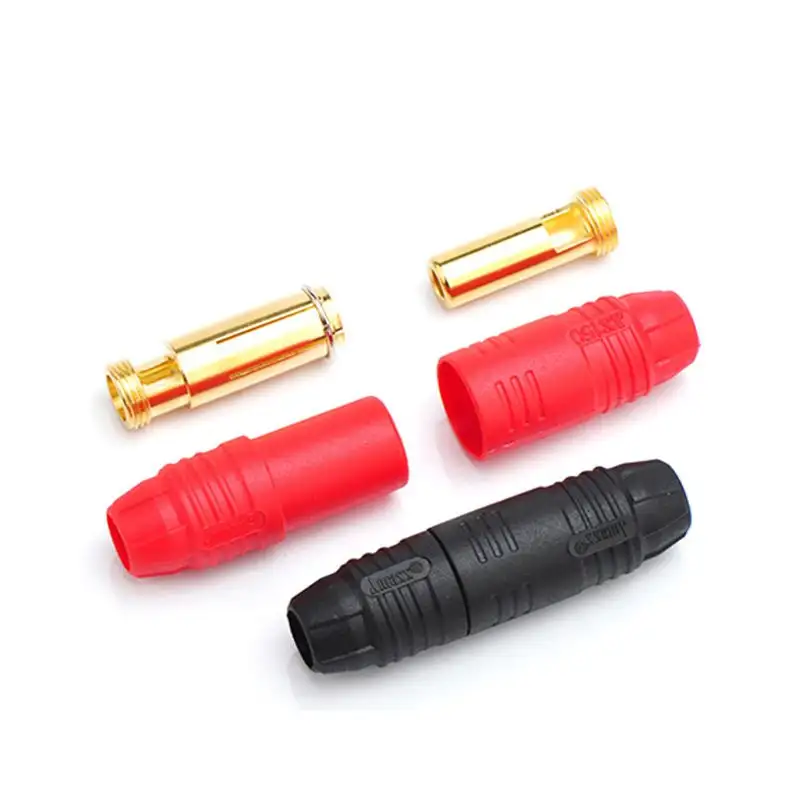

This is 7mm AS150 Anti Spark Self Insulating Bullet Connector featured with an insulated tip to stop big sparks from higher voltage applications. This coupled with the plastic self-insulating shroud offers a safe and effective connector package with no shrink tube needed.

Nowadays, Almost all above 550 class RC helicopter are using 12S Lipo even up to 14S Lipo for Power System. One of the most annoying problems is the Sparking during connecting or while Operating the 12S Lipo, Because sparking will damage the surface of the connector & cause bad contact! This AMASS AS150 Anti Spark Self Insulating Gold Plated Bullet Connector bring you the solutions!

Features:

1. Mechanical mounting for cable
2. Electrical mounting soldered
3. Patented anti-spark design
4. Open side for easy soldering
5. Low resistance cladding
6. Reusable threaded end design, easy to insert/take off from protect the case
7. Tightening ring on a Female side to prevent disconnection after long time use

Package includes:

1 x AS150 Anti Spark Self Insulating Gold Plated Bullet Connector (1 Pair)

Specifications:

Brand	Amass
Allowed Wire Size (AWG)	8 ~ 6
Gender	Mail-Female Pair
Rated Operating Voltage (VDC)	500
Current Handling Capacity (A)	150
No. of Contact Points	1
Connector Type	AS150
Contact Material	Brass
Body material	Polymide
Contact Plating	Gold flash
Color	Black and Red
Weight (gm)	8 each
Operating Temperature Range (°C)	-20 to 120
Flammability Rating	UL94V-0
