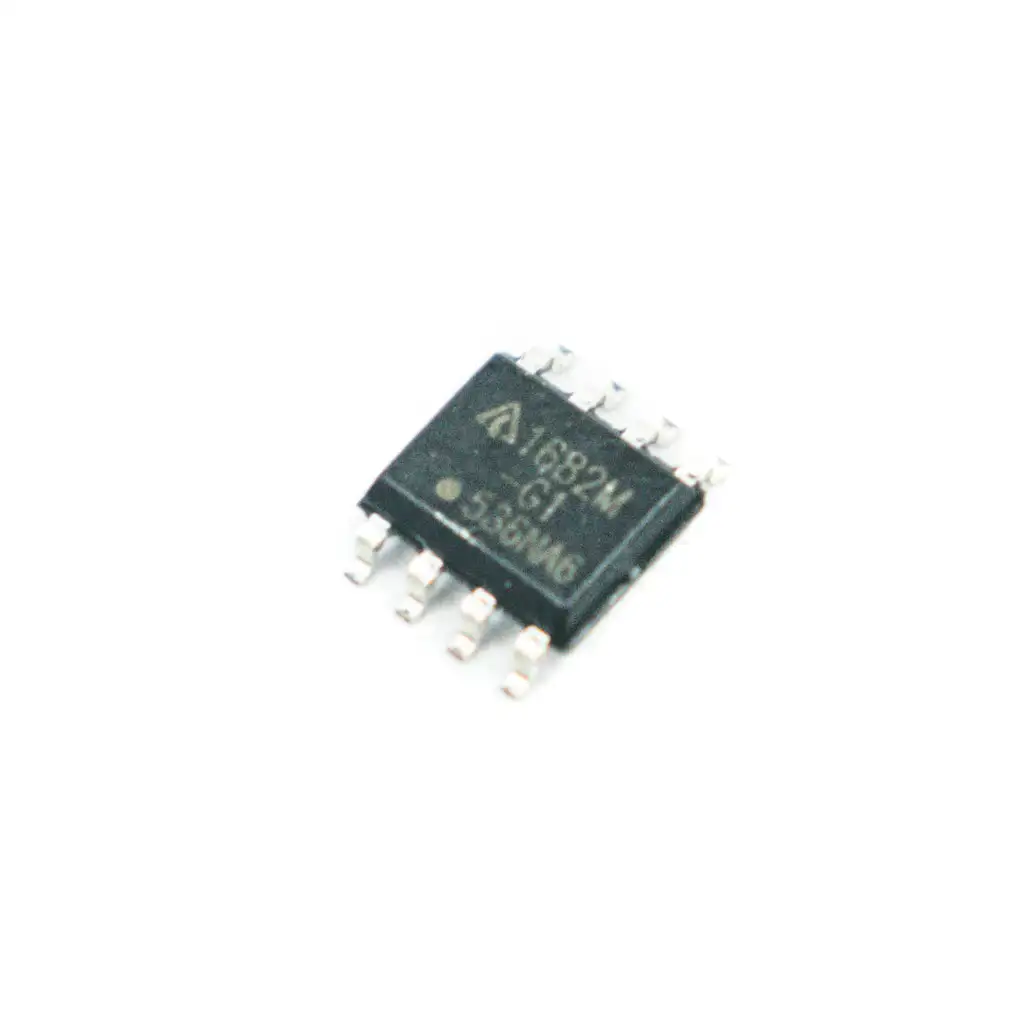

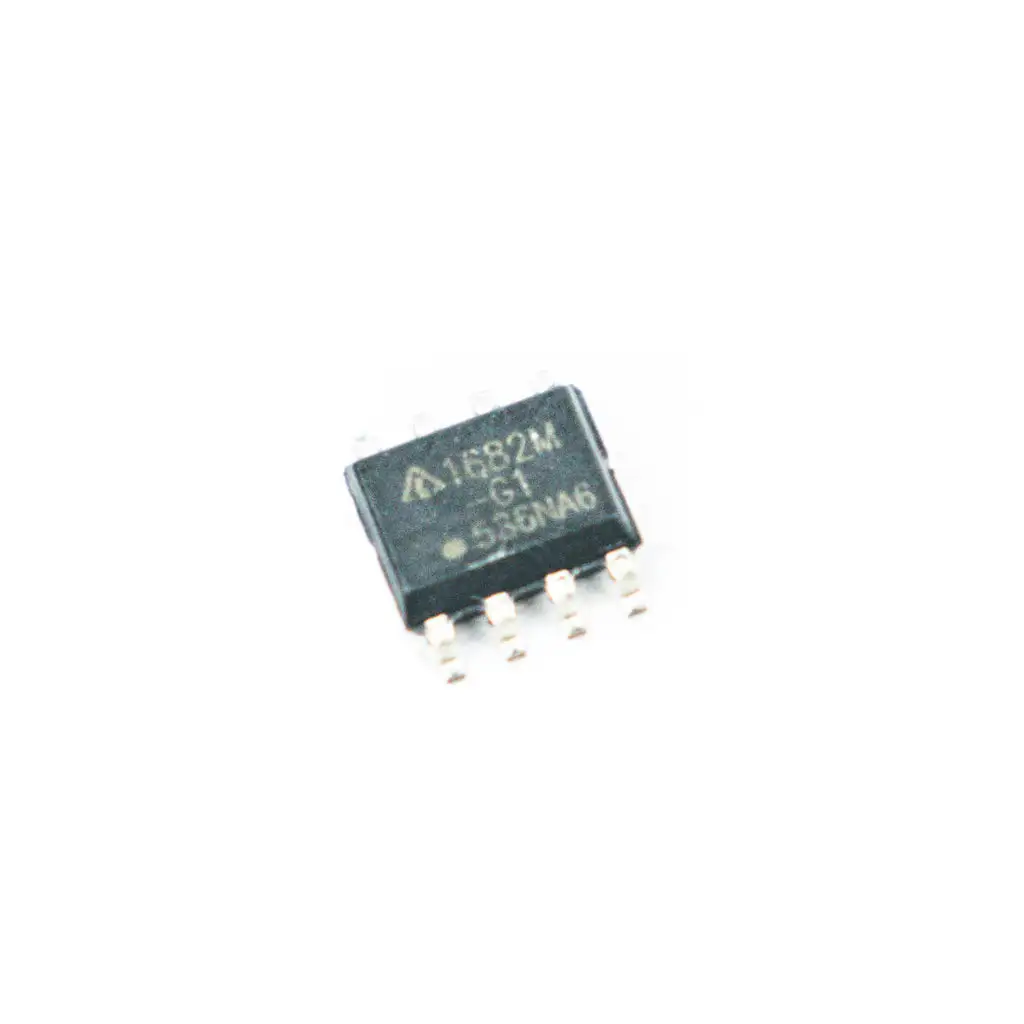

AP1682 Power Factor Controller for LED Driver

The AP1682 is a high performance AC/DC universal input Primary Side Regulation(primary-side regulation controls the output voltage and current precisely with the information in the primary side of the power supply only) Power Factor Controller(Power Factor Controller reduces the amount of reactive power generated by a device) for LED driver applications. The device regulates output current through Pulse Frequency Modulation (PFM) technology, resulting in a high power factor and reduced THD (Total Harmonic Distortion). Single-stage primary side regulation PFC controller for LED driver. The AP1682 eliminates the optocoupler and secondary control circuitry while also providing accurate constant current (CC) regulation. It also eliminates the requirement for loop correction circuitry while preserving stability.Features

Application:-

Model

AP1682

Power Supply Voltage

9-21V DC

Operating Temperature

-40°C – 105  ºC

Driver Output Current

300 mA

Operating Junction Temperature

150   ºC

Power Dissipation at T(a)=50°C

0.65 W

Start-up current

20 μA

Package

SMD
