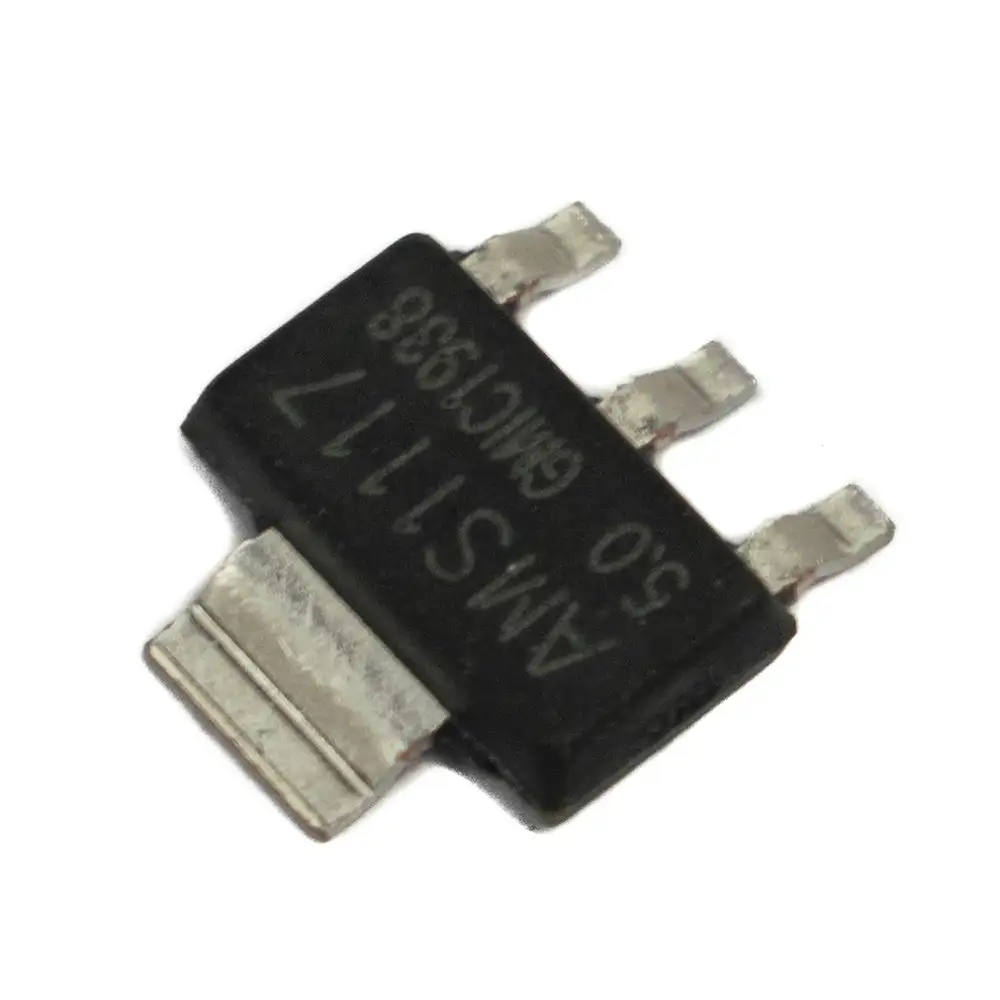

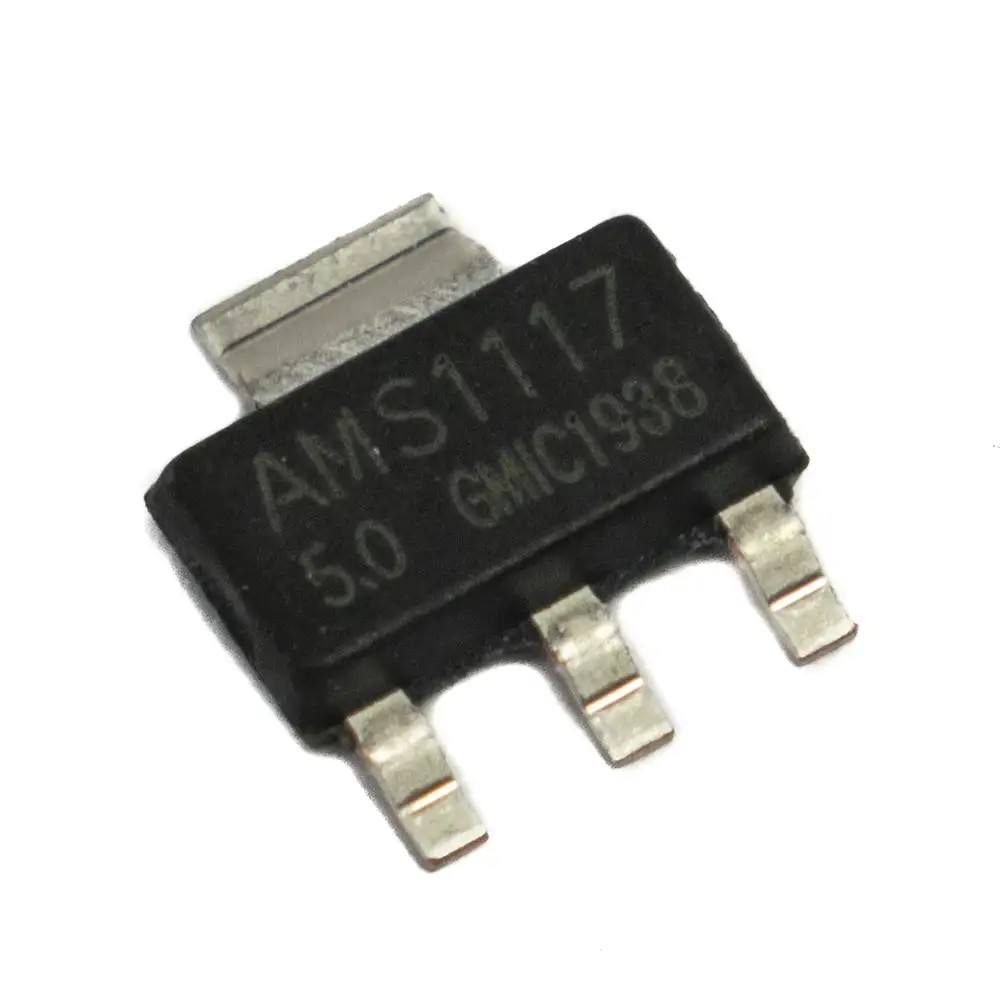

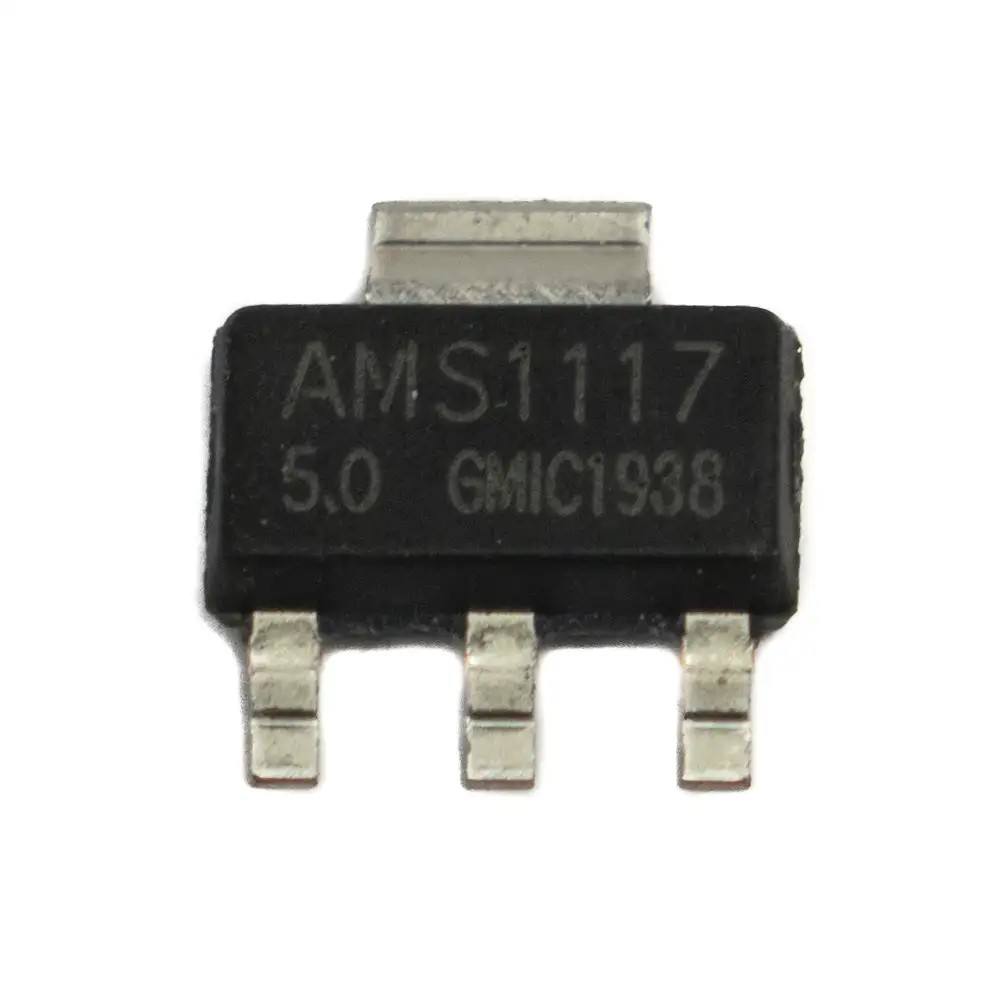

AMS1117 5V Low Voltage Dropout Regulator

The AMS1117is a popular SMD package 3-pin voltage regulator that is available in many models for fixed and adjustable voltage requirements.The IC can deliver a maximum current of 1 A and the output voltage can vary from 1.5 V to 5 V. It also has a low dropout voltage of 1.3 V when operating at maximum current.

Pin Configuration

This pin adjusts the output voltage if it is a fixed voltage regulator,it acts as a ground

The regulated output voltage set by the adjusted pin can be obtained,from this pin

The input voltage which has to be regulated is given to this pin

Features

Applications
