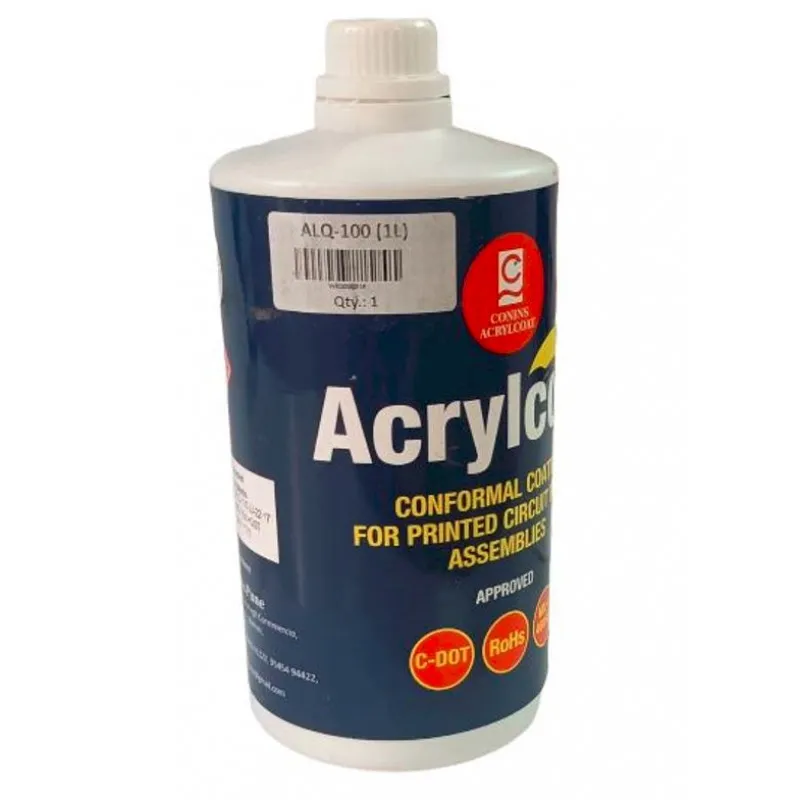

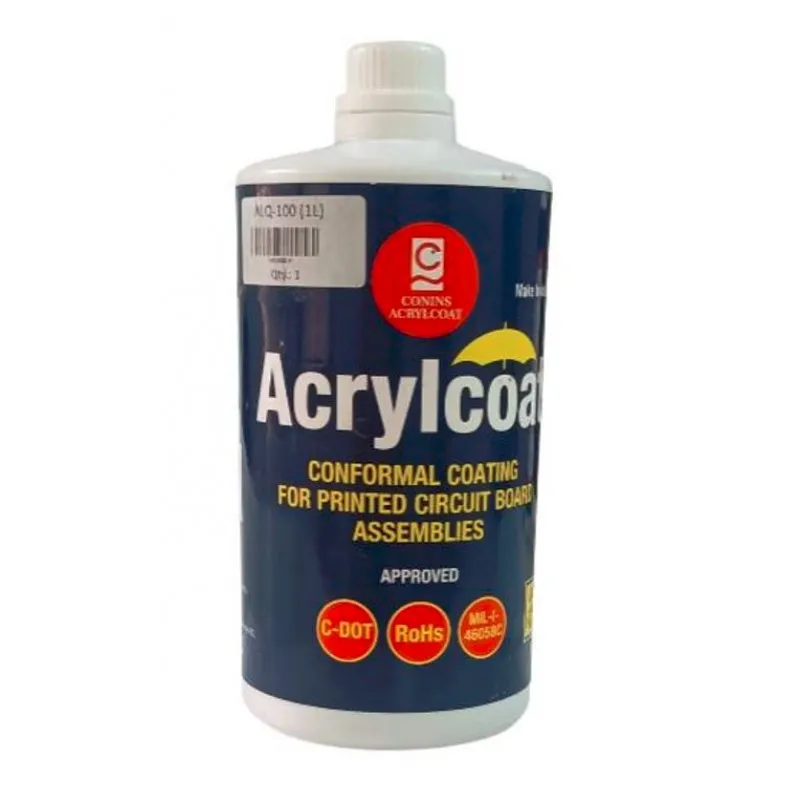

Acrylcoat ALQ-100 Conformal Coating for PCB Assemblies Solderable - 1 Litre

Conins Acrylcoat ensures total protection for PCBs and components against moisture, Oxidation, fungus etc., in extremely humid conditions. It is easy to apply and fast drying and has good flexibility. Servicing is easy as the coating is readily Solderable. Acrylcoat has high dielectric strength and it provides protection against high voltage arcing and corona shorts.

Features:-

• 100% Eco - Friendly
• Economical in use.
• Good Dielectric strength
• Excellent adhesion to all surfaces
• Easily SOLDERABLE ; Servicing is easy.
• Prevents fungus growth
• Protects component leads from corrosion
• Fast curing
• Contains UV Tracer for easy inspection

Aerosol:-

Clean the surface thoroughly. Spray Acrylcoat from a distance of 25cms. from the surface evenly. Allow the PCBs to dry in Air. Better results can be obtained if cured in a ventilated oven @ 60°C for 1 hr. The boards may be heated to 55 to 60°C just before spraying. Shake the Aerosol Bottle Well Before Each Application.

Lacquer:-

Acrylcoat Lacquer can be applied by Brushing, Dipping or by Spraying. This can be used in a Dip Coating Machine or can be applied by a dispenser.

Removal:-

The coating can be removed using Conins Thinner AR.

Storage:-

Store in a cool dry place below 40°C. Keep away from naked flame or flammable material. The contents are highly inflammable. Destroy the container after use

Specifications:-

• Flash Point : Less Than 40
• Appearance : Clear, Transparent
• Specific Gravity (Density@25 degree C) : 0.919
• Viscosity @25degreeC : 100 Sec (Zans G1 Cup)
• Comparative Tracking Index (CTI Value) : 600
• Coating Thickness (Single Coat ) : 50 micron
• Dielectric Strength : 15 KV/mm
• Hard Dry : 15 min
• Curing Time : 24 Hours
• Shelf Life : 12 Months
• Packaging Size : 1 Litre
• Model : ALQ-100
• Made in : India

Package Includes:-

1 x Acrylcoat ALQ-100 Conformal Coating for PCB Assemblies Solderable - 1 Litre
