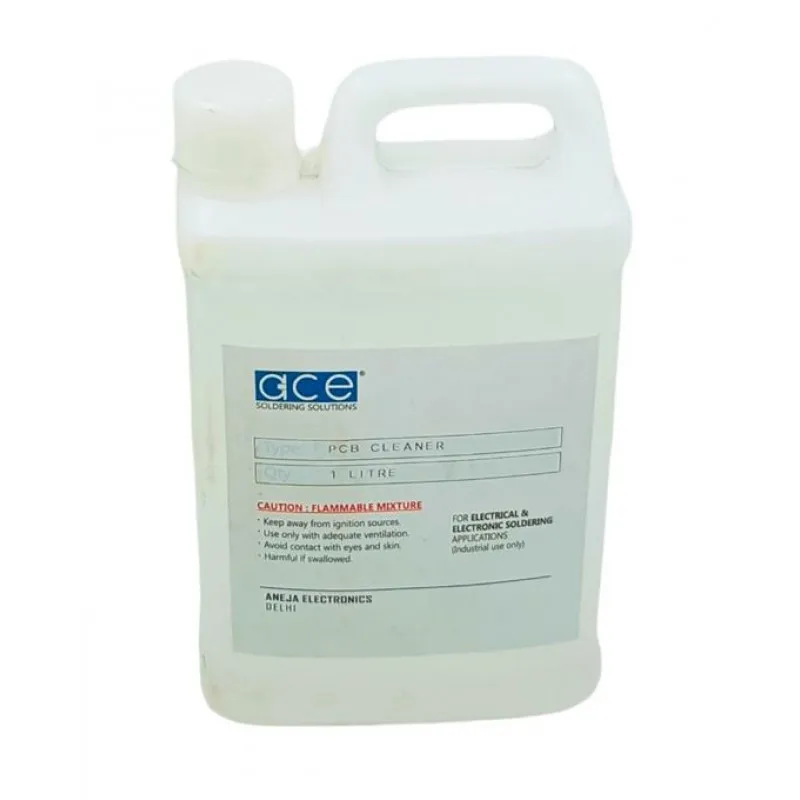

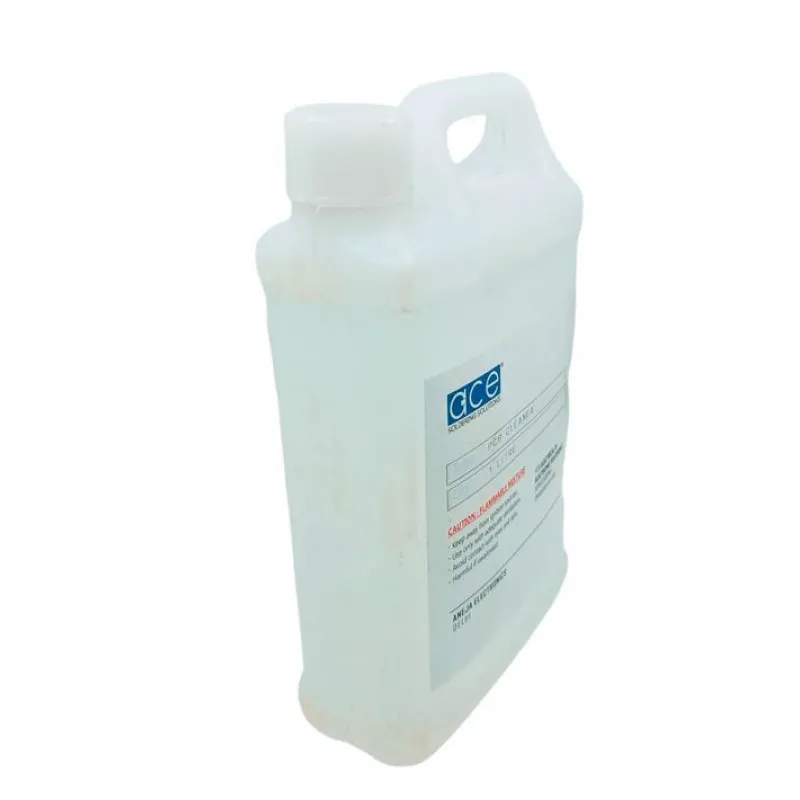

ACE 1 Litre PCB Cleaner

It is effective as a solvent to dissolve misprinted solder paste, wave soldered flux residues and other organic contaminants from electronic assemblies. It provides rapid, effective and safe cleaning action. This cleaning solvent is a non-ionic and relatively non-toxic liquid with a mild odour.

Performance Characteristics:

• Excellent cleaning efficiency at room temperature
• Non-ionic and non-corrosive
• Fast evaporation rate which reduces process time
• Non-carcinogenic and relatively nontoxic

Application:

It may be used at ambient temperature with spray equipment or manual application. When the residue has completely dissolved and is no longer visible, the residual solution should be rinsed off with more solvent. The purpose is not to only dissolve the residue, but also to remove it after it is dissolved.

Physical Properties:

• Specification: Flammable Liquid
• Content, wt.% min: 99.91
• Specific Gravity: 0.792 to 0.795
• Water content, wt. % max: 0.01
• Appearance: Clear
• Color, max: 15 Hazen
• Odor: Alcohol-like
• Weight : 1L

Package Includes:

1 x Ace 1 Litre PCB Cleaner
