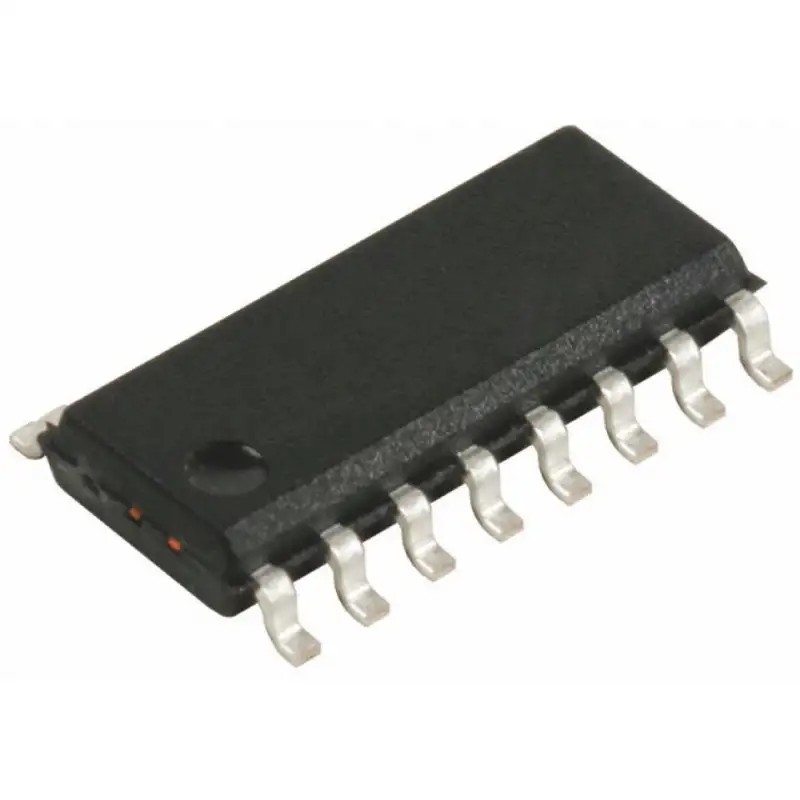

74LS31 IC - (SMD Package) Hex Delay Line Generator IC (7431 IC)

In Stock

Brand: Generic | SKU: 2167499

₹ 31.00

~~₹ 55.00~~

Save 44%

Tax Included and Shipping Rate Calculated at Checkout

Min Qty: 1

Check Delivery Availability:

Enter your pincode to check delivery options

Offer & Other Details

Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
Sales Assistance: Contact us +91 8903831010 for personalized advice.

Description

These LS31 delay elements are intended to provide well-defined delays across both temperature and VCC ranges. Used in cascade, a limitless range of delay gating is possible. All inputs are PNP with IL MAX of -0.2 mA. Gates 1, 2, 5, and 6 have standard Low-Power Schottky output sink current capability of 4 and 8 mA IOL Buffers 3 and 4 are rated at 12 and 24 mA. The 74LS31 is characterized for operation from 0Â°C to 70Â°C

Features :-

Delay Elements for Generating Delay Lines
Inverting and Non-inverting Elements
Buffer NAND Elements Rated at JOL of 12/24 mA
PNP Inputs Reduce Fan-In (IIL=-0.2 mA MAX)
Worst Case MIN/MAX Delays Guaranteed Across Temperature and VCC Ranges

Specifications :-

Symbol	Parameter	Min	Max	Unit
VCC	Supply Voltage	4.75	5.25	V
VIH	HIGH Level Input Voltage	2	-	V
VIL	LOW Level Input Voltage	-	0.8	V
VOH	HIGH Level Output Voltage	-	-0.4	V
IOL	LOW Level Output Current	-	8	mA
TA	Free Air Operating Temperature	0	70	oC
