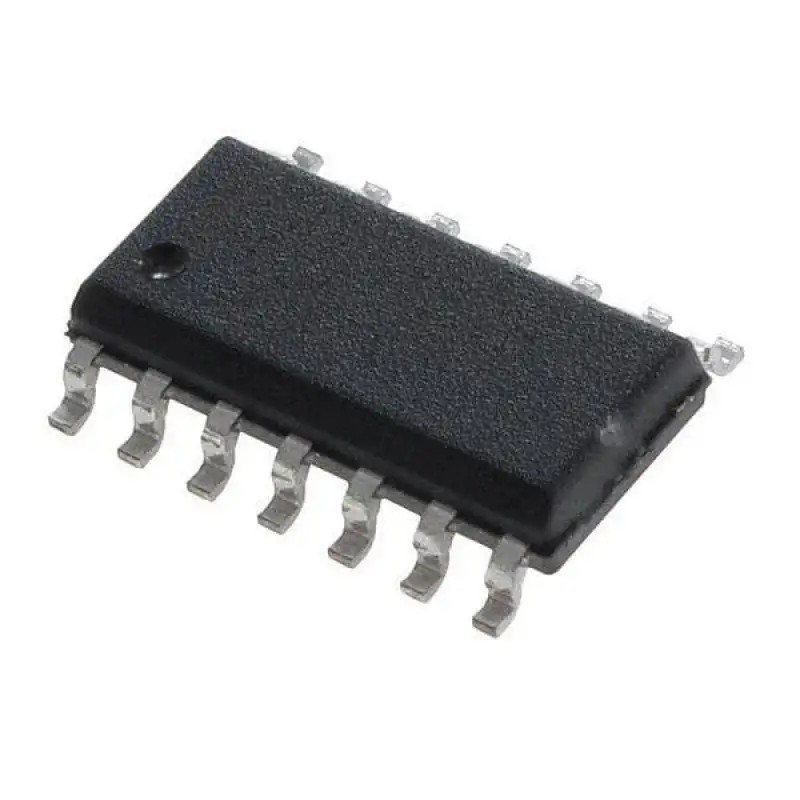

74HC20 IC - (SMD Package) - Dual 4-input NAND Gate IC (7420 IC)

The 74HC20; 74HCT20 is a dual 4-input NAND gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Features :-

• Complies with JEDEC standard JESD7A
• Low-power dissipation
• Input levels:

For 74HC20: CMOS level
For 74HCT20: TTL level

• ESD protection:

HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V

• Multiple package options

Specified from °C40 °C to +80 °C and from °C40 °C to +125 °C.

Specifications :-

• Supply voltage min : -0.5V
• Supply voltage max : +7V
• Input clamping current max : +20mA
• Output clamping current max : +20mA
• Output current max : +25mA
• Supply current max : 50mA
• Ground current min : -50mA
• Storage temperature min : -65 °C
• Storage temperature max : +150°C
• Total power dissipation max : mW

Package Includes :-

1 X 74HC20 Dual 4-input NAND Gate IC (7420 IC) DIP-14 Package
