Brand: Generic | SKU: 6107418
₹ 8.86
₹ 11.00
Enter your pincode to check delivery options

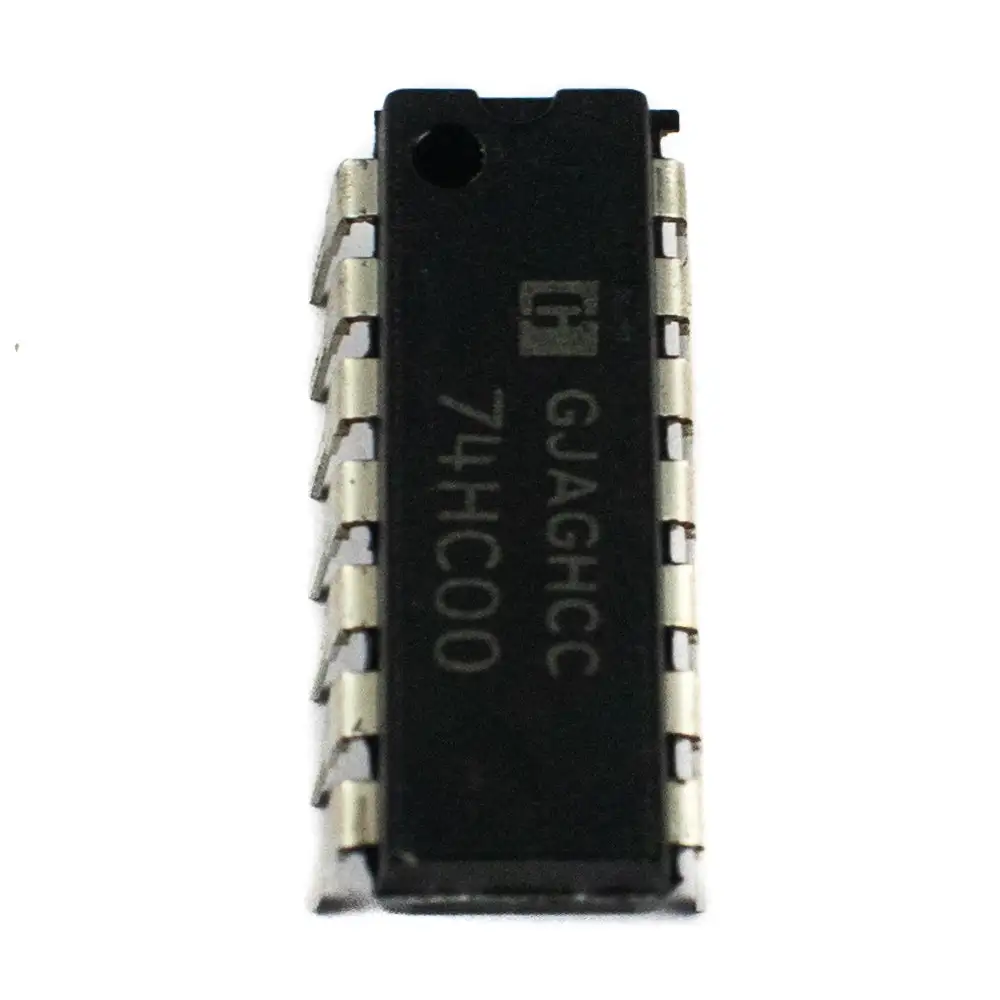

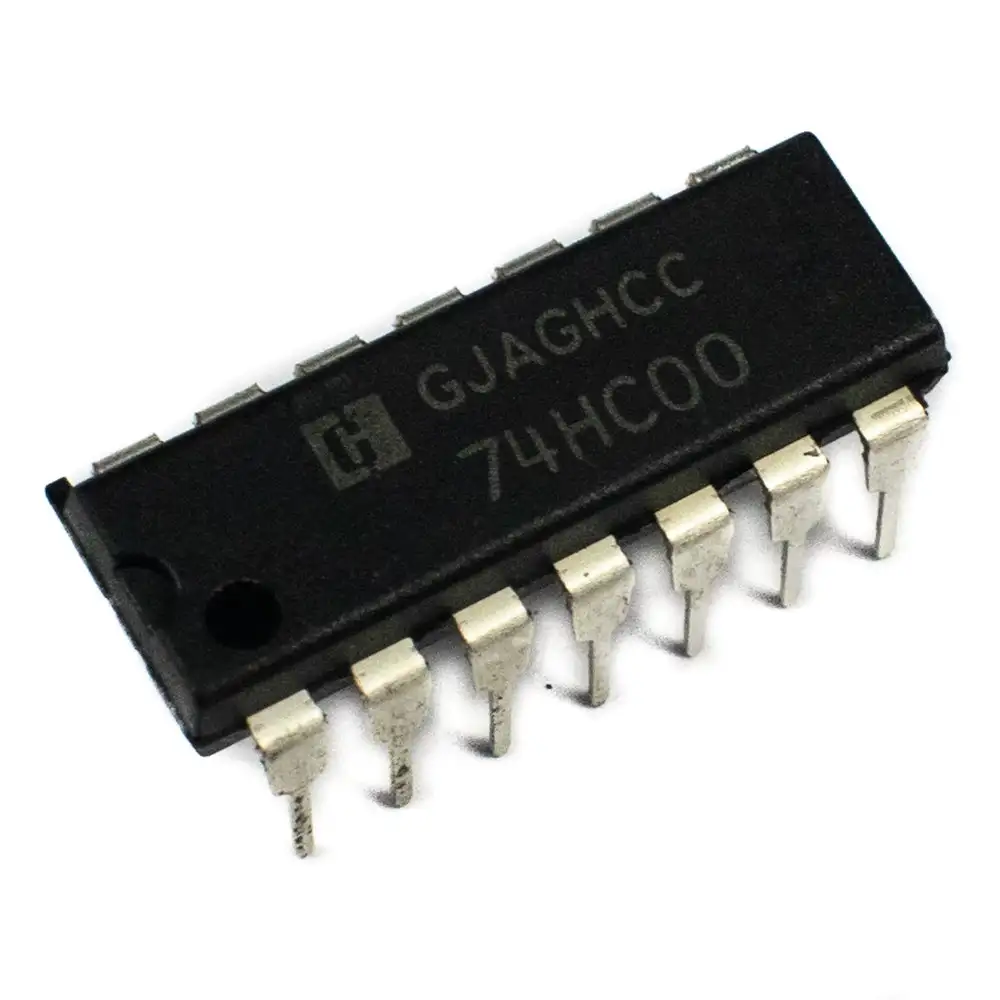

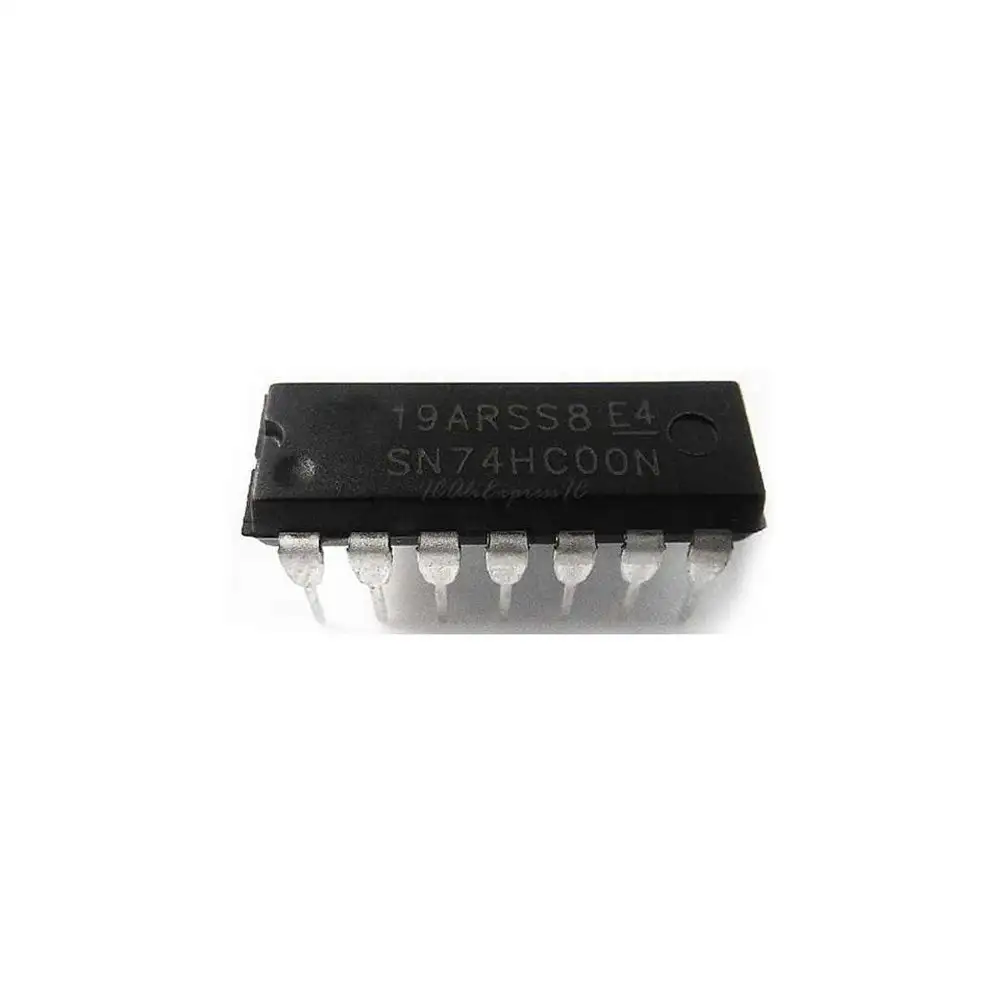

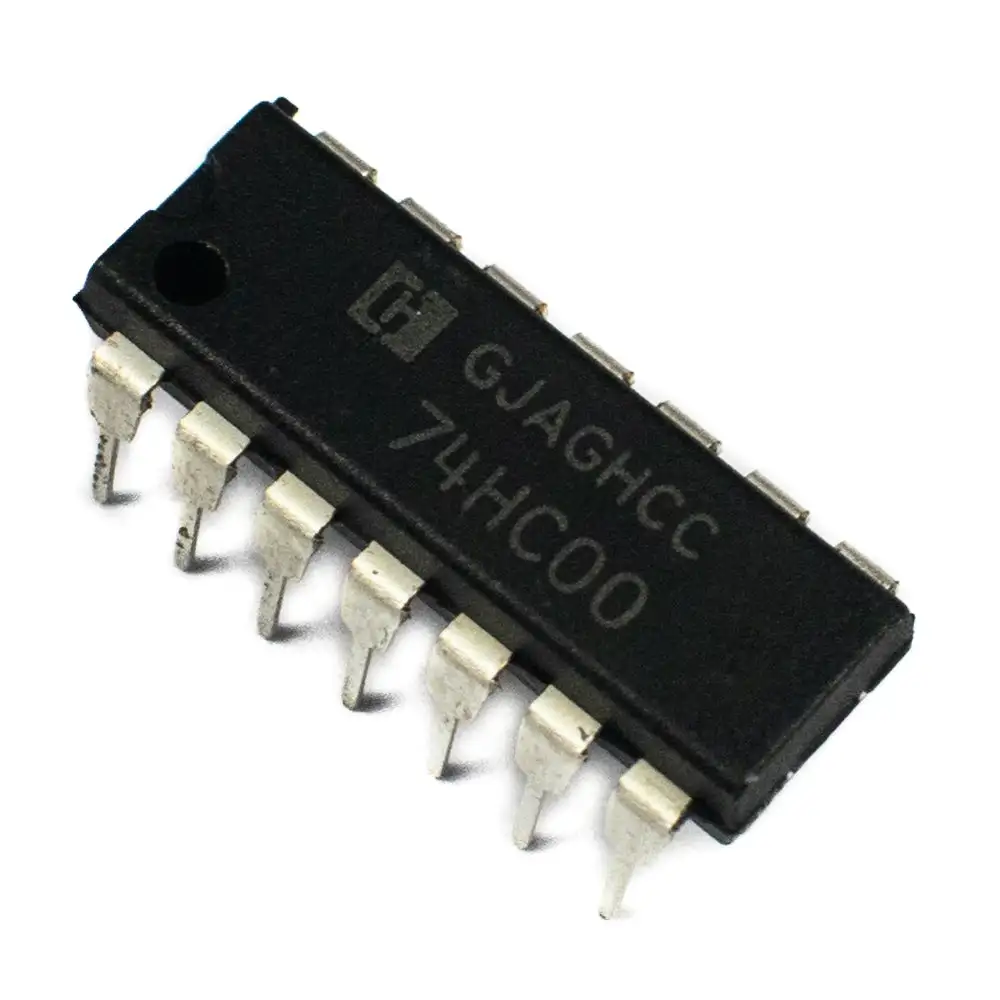

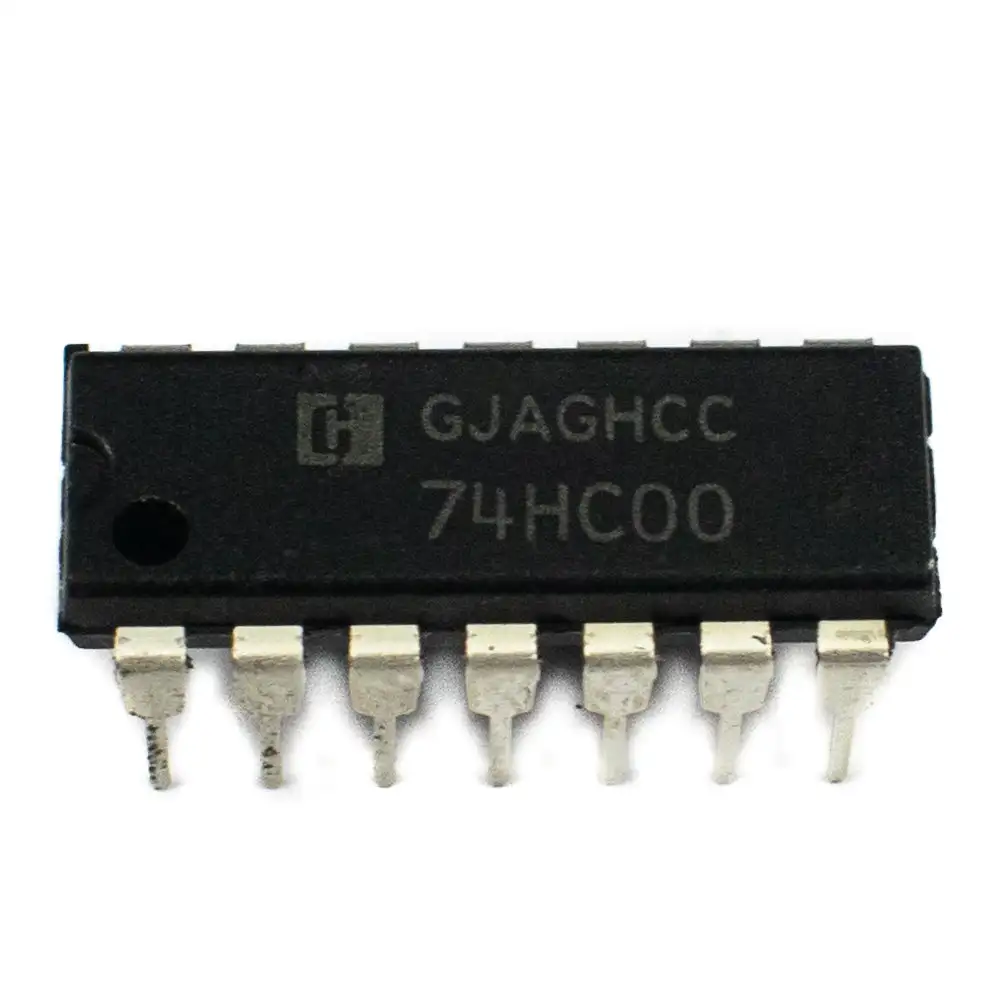

74HC series ICs are High-speed logic gates with very low power consumption thatutilize advanced silicon-gate CMOS technologyand 74HC00 is one of them. 74HC00 ICs contain 4 independent, 2 input NAND gate. The boolean expression can be written as Y = ( A.B )’ for each NAND gate.Internal Structure of 74HC00 device,
The 74HC00 ICs have a wide operating range of VCC from 2 V to 6 V. Maximum current consumption is 20 uA through Icc and 1 uA per input pin. And the propagation delay is 8-9 ns. They can drive 10 LS-TTL loads at a time. This means that the single output pin of the NAND gate can drive 10 TTL-based Low-PowerSchottky( LS ) input pins. They can provide 4 mA on outputs at 5 V VCC. They allow inputs and outputs up to VCC. Recommended operating VCC is 5 V. Load Current can reach up to 25 mA per output pin and 50 mA for overall pins in between 0 V to VCC.
Specification:
Pin Configuration:
Applications:
