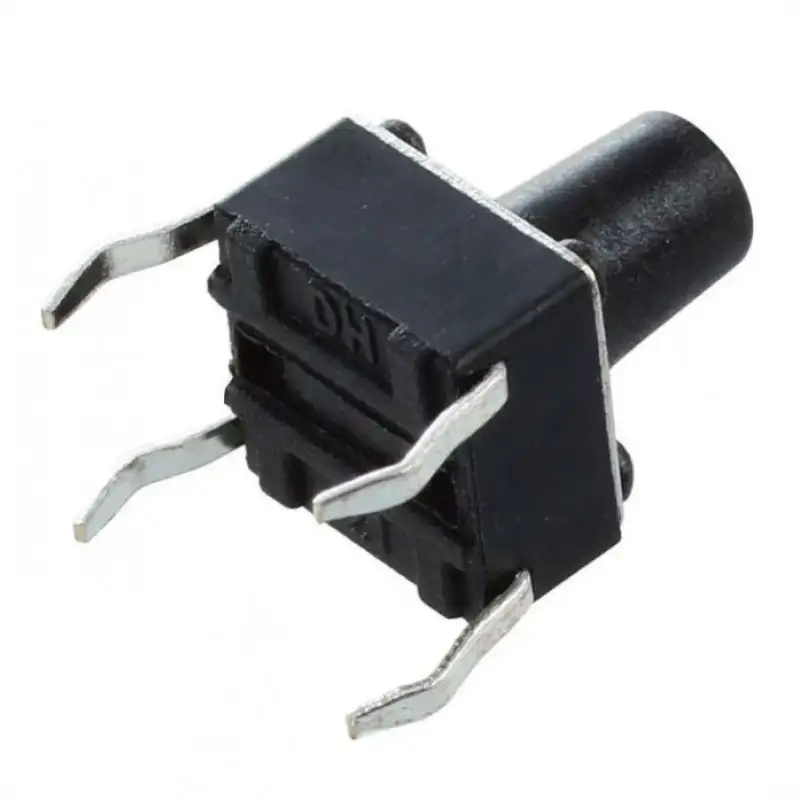

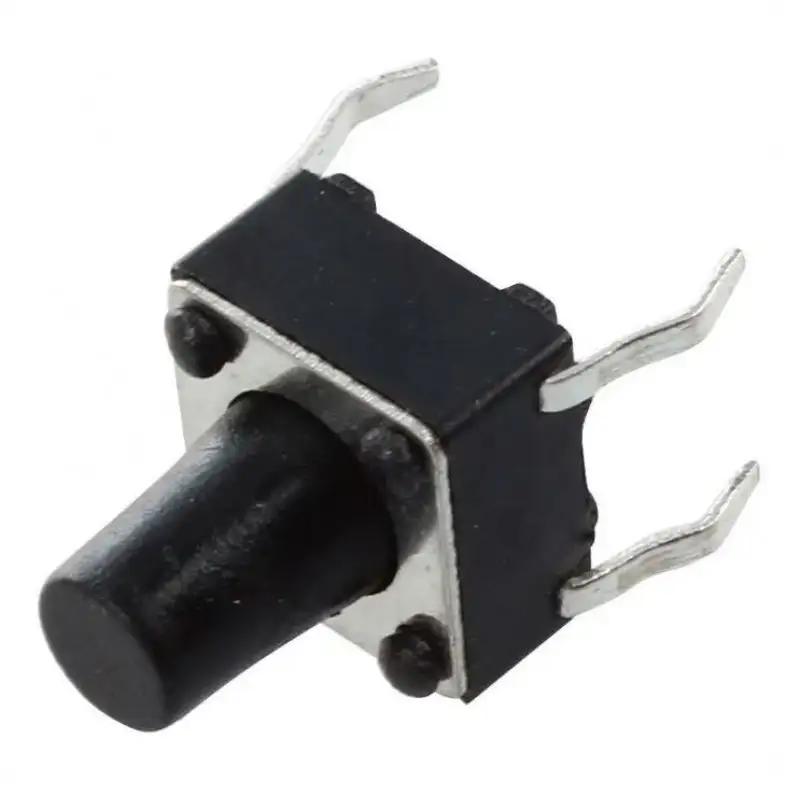

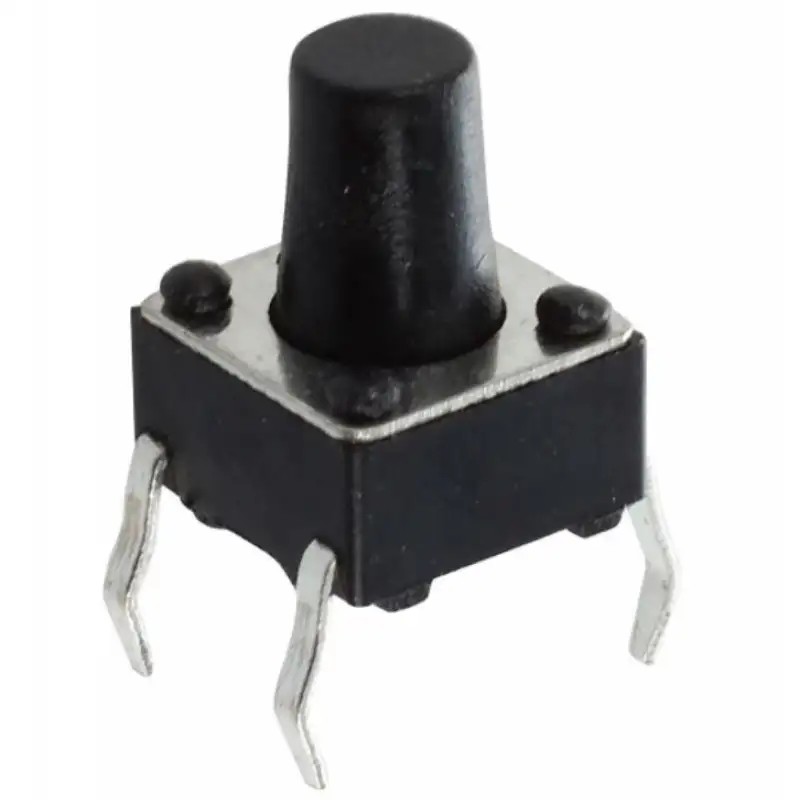

6x6x9mm Tactile 4 Pin Push Button Switch - 5 Pieces Pack

In Stock

Brand: Generic   |   SKU: 4862305

23.00

₹ 42.00

Save 45%
Tax Included and Shipping Rate Calculated at Checkout

Enter your pincode to check delivery options

Offer & Other Details

  • Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
  • Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
  • Sales Assistance: Contact us +91 8903831010 for personalized advice.

Description

6x6x9mm Tactile 4 Pin Push Button Switch is widely used as a standard input buttons on electronic projects. These work best when you mount it on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed and complete the circuit.

This tact switch also offers reliable dome contact technology and strong tactile feedback, with multiple operating forces to choose from. Applications include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals.


Features :

  1. Through-hole design.
  2. High operating force (1.5N or 2.5N) suited to automotive equipment requirements
  3. The long life of 300,000 cycles realized despite the high operating force
  4. Middle stroke (1.05mm)
  5. Used in the fields of electronic products, household appliances and more.
  6. This light touch switch is waterproof, prevent oil, anti-pollution, anti-static interference.
  7. High precision mechanism design offers acute operation and long service life.
  8. Compact and lightweight, easy to carry and dismantling.
  9. Good electrical conductivity.


Specifications:

Operating Voltage (VDC)

12

Max. Operating Current (mA)

50mA

On/Off Function

Push to ON

Switch Type

Momentary

Contact Type

Through-hole

Contact Material

Brass

Contact Resistance

50m Ω

Insulation Resistance (MΩ)

100

Operating Temperature Range (°C)

-20 to 70

Operation Force

1.56 +/- 0.5 N

Operation Stroke

0.25+0.2/-0.1mm

Body Material

Plastic

Mech. & Electrical Lifecycle

50000

Protection Standard

IP65

Length (mm)

6

Width (mm)

6

Height (mm)

9

Weight (gm)

1 (approx) (each)


Package Includes :

5 x 6x6x9mm Tactile 4 Pin Push Button Switch
