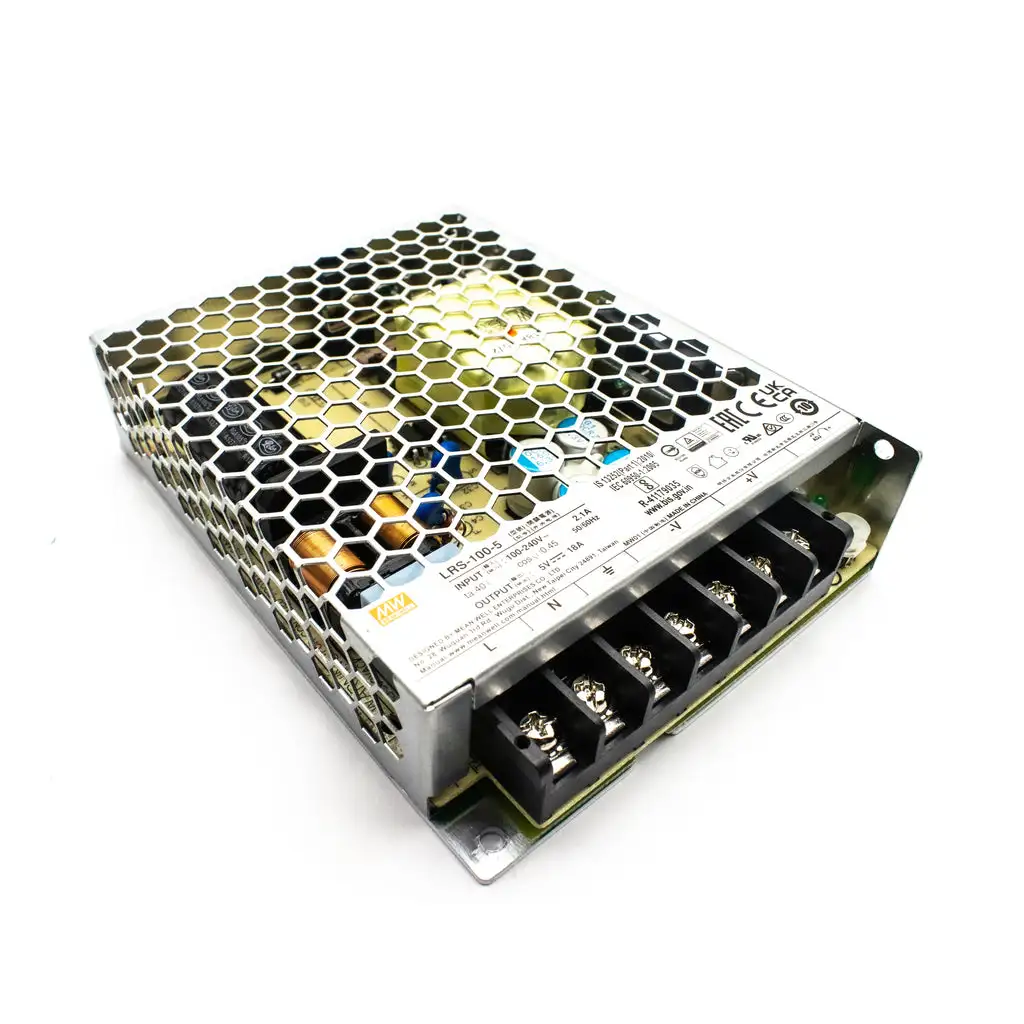

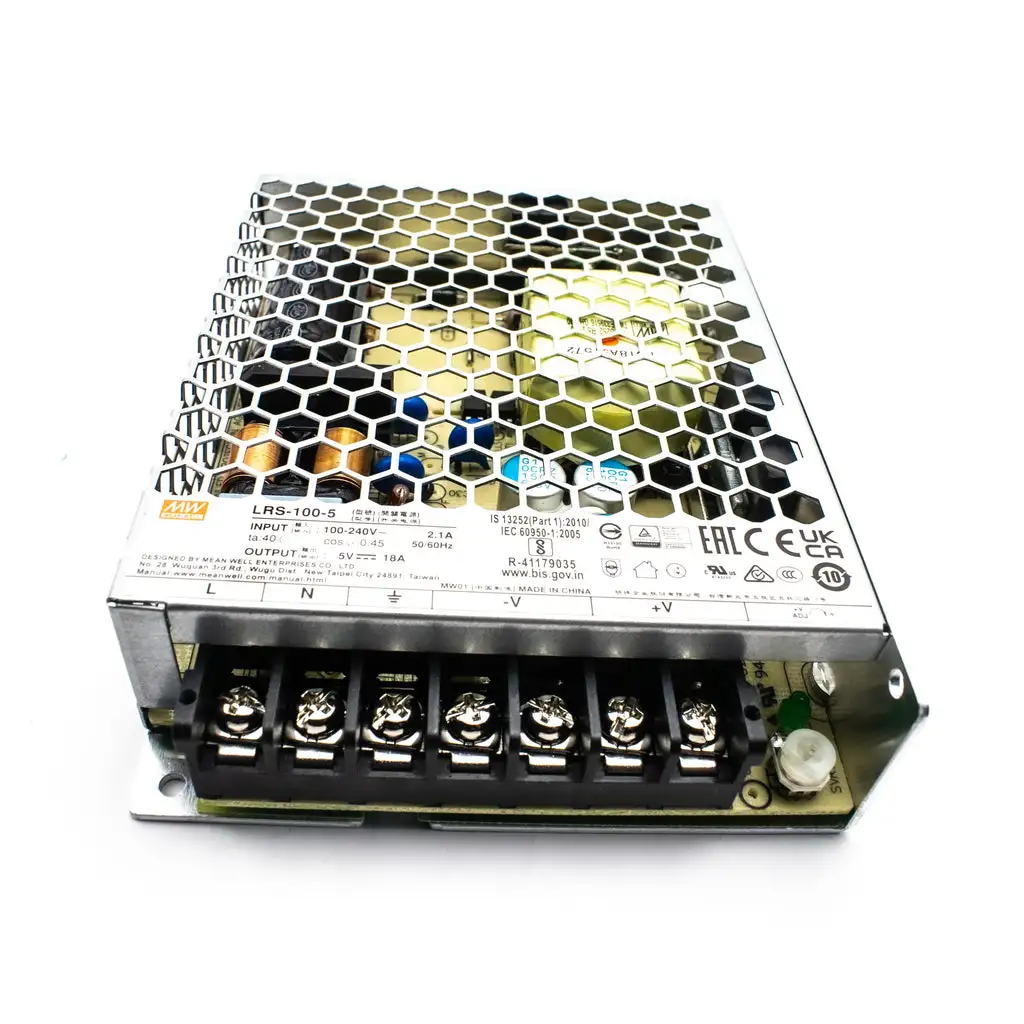

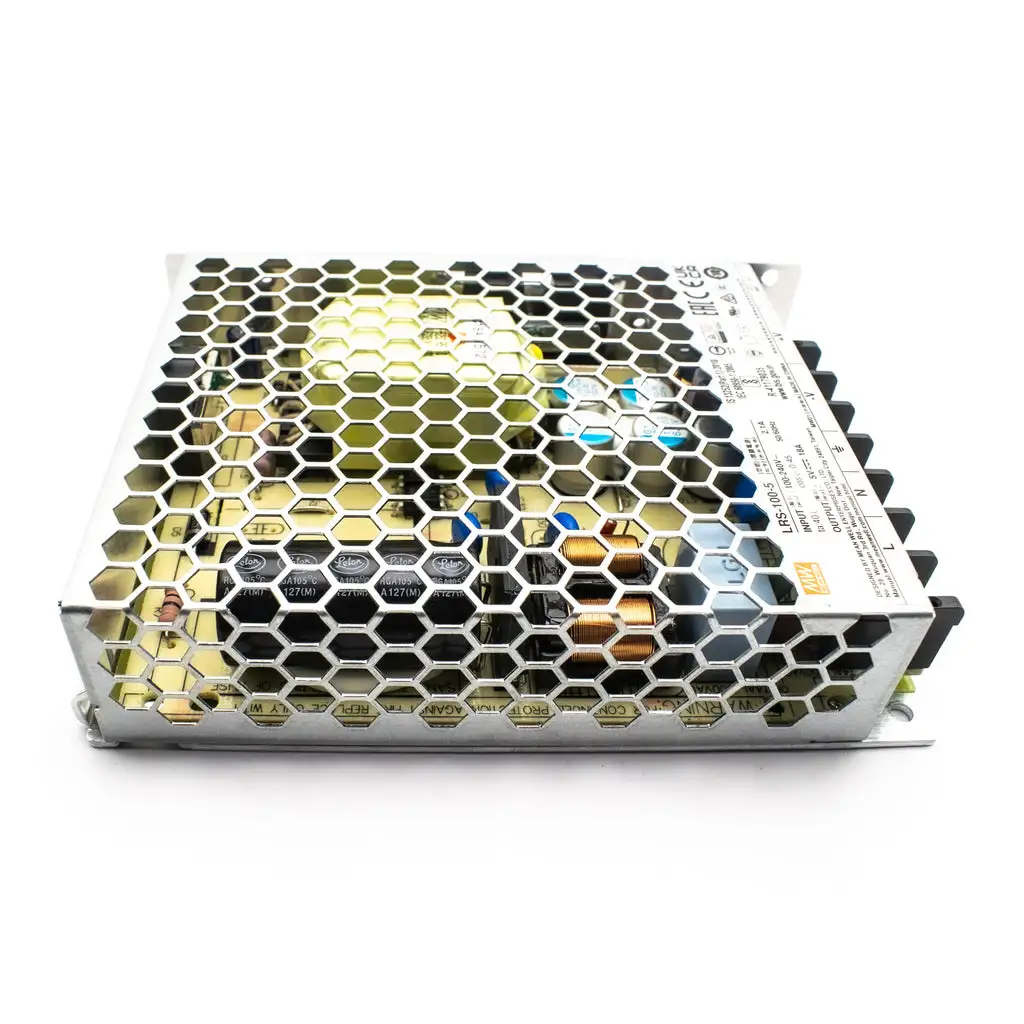

5V 90W Meanwell SMPS (LRS-100-5)

LRS-100 series is a 100W single-output enclosed type power supply with 30mm of low profile design. The AC input is 85~264VAC which could be directly supplied from the house supplied voltage. The output from SMPS will be 5V. The SMPS has high efficiency up to 86%, the design is of metallic mesh case which enhances the heat dissipation of LRS-100 that the whole series operates from -30°C through 70°C under air convection without a fan. It has extremely low no-load power consumption (less than 0.3W), which allows the end system to easily meet the worldwide energy requirement. LRS-100 has the complete protection functions and 5G antivibration capability; it complies with international safety regulations such as TUV EN60950-1, EN60335-1, EN61558-1/-2-16, UL60950-1 and GB4943. LRS-100 series can be used for many purposes with the best performance from it.

Feature

47~63Hz

86%

4.5V~5.5V

-30°C to 70°C

20~90%

129*97*30mm (L*W*H)
