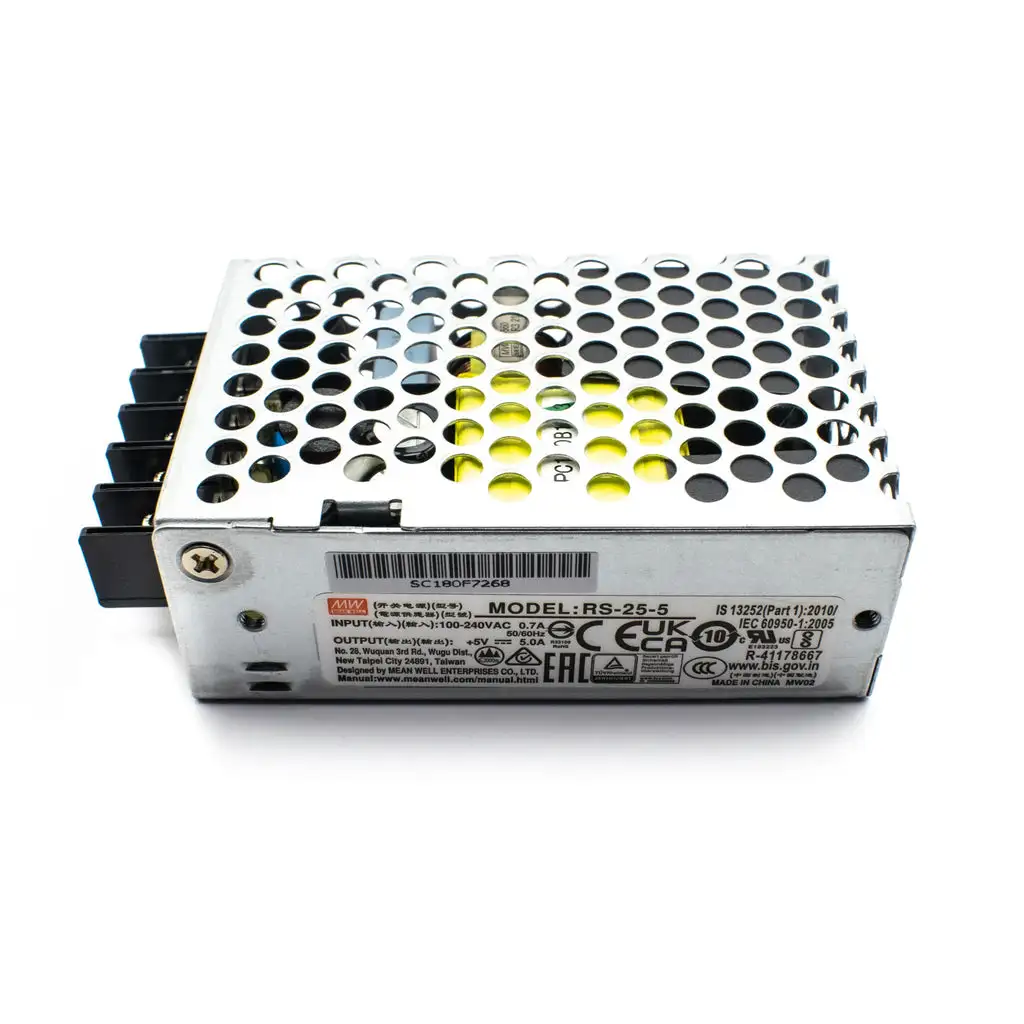

5V 25W Meanwell SMPS (RS-25-5)

Meanwell's RS-25 series is a 25W single-output enclosed type power supply with 30mm of low profile design. The AC input is  85-264VAC which could be directly supplied from the house supplied voltage. The output from SMPS will be 5V. The SMPS has high efficiency up to 78.5%, the design is of metallic mesh case which enhances the heat dissipation of  RS-25 that the whole series operates from -20°C through 70°C under air convection without a fan. It has extremely low no-load power consumption (less than 0.5W), which allows the end system to easily meet the worldwide energy requirement.

RS-25 has complete protection functions and 5G anti-vibration capability; it complies with international safety regulations such as UL60950-1, TUV EN60950-1, EN55022, EN61000-3-2,-3. RS-25 series can be used for many purposes with the best performance from it.

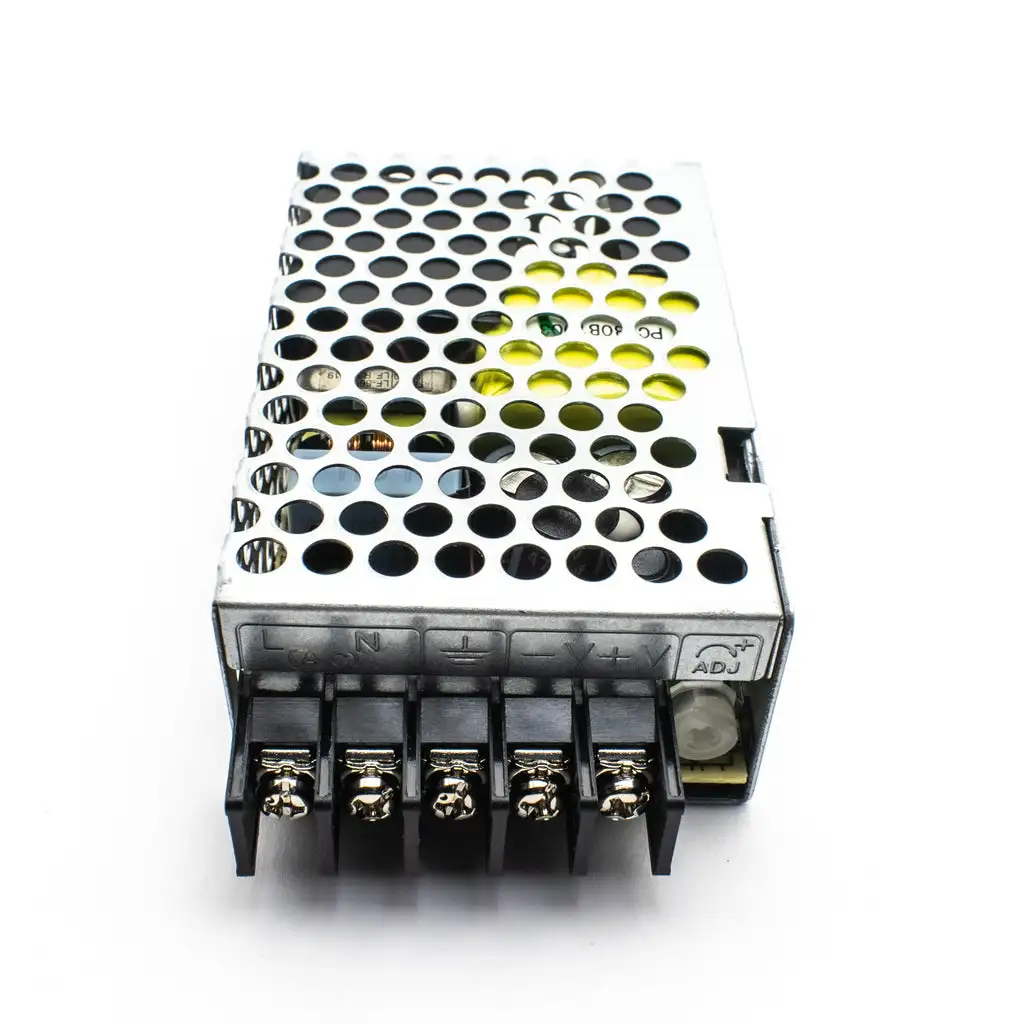

PINOUT:
