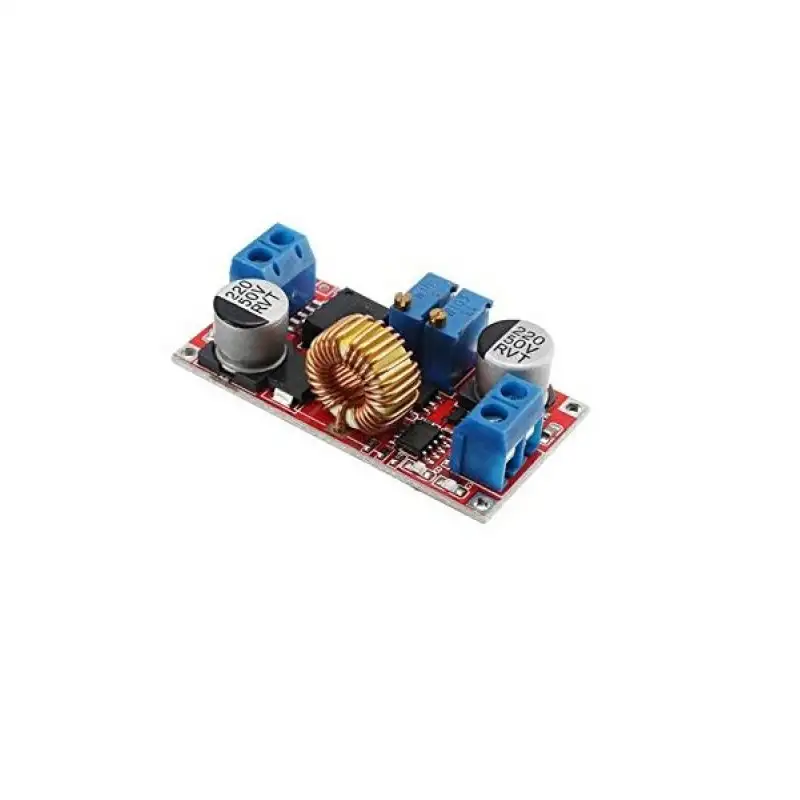

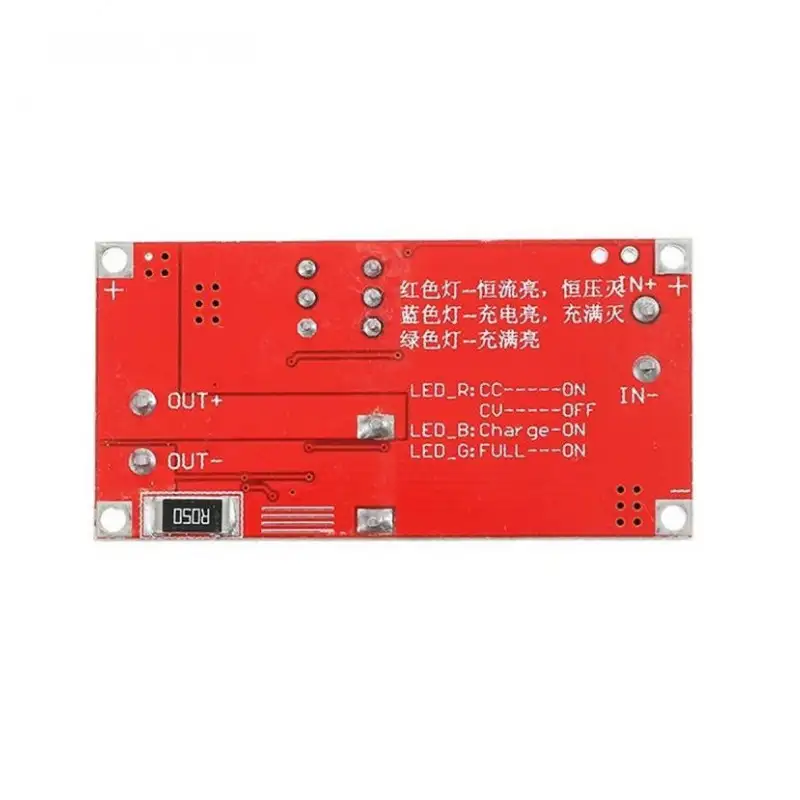

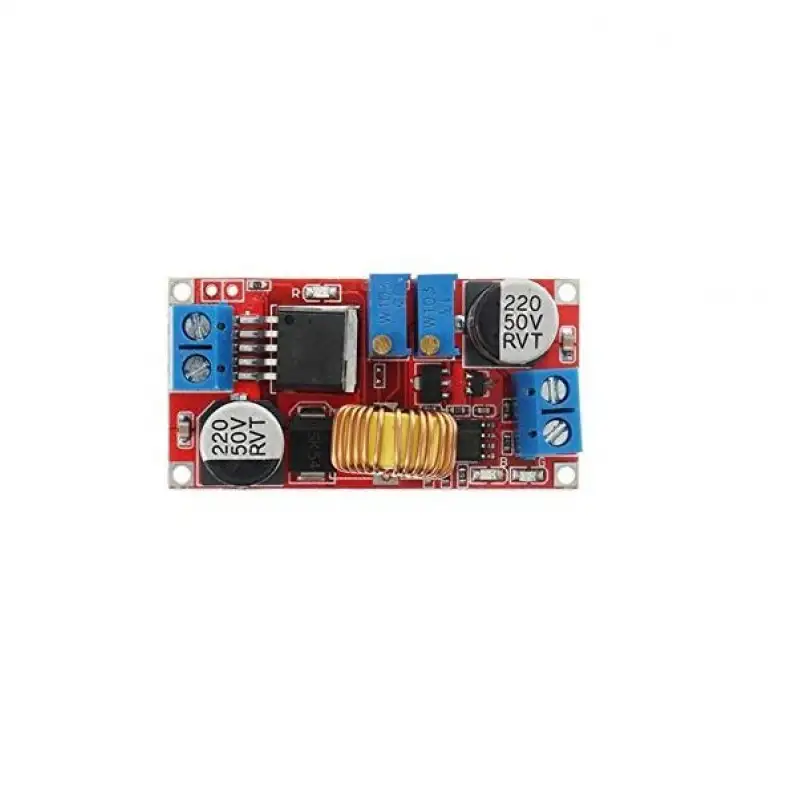

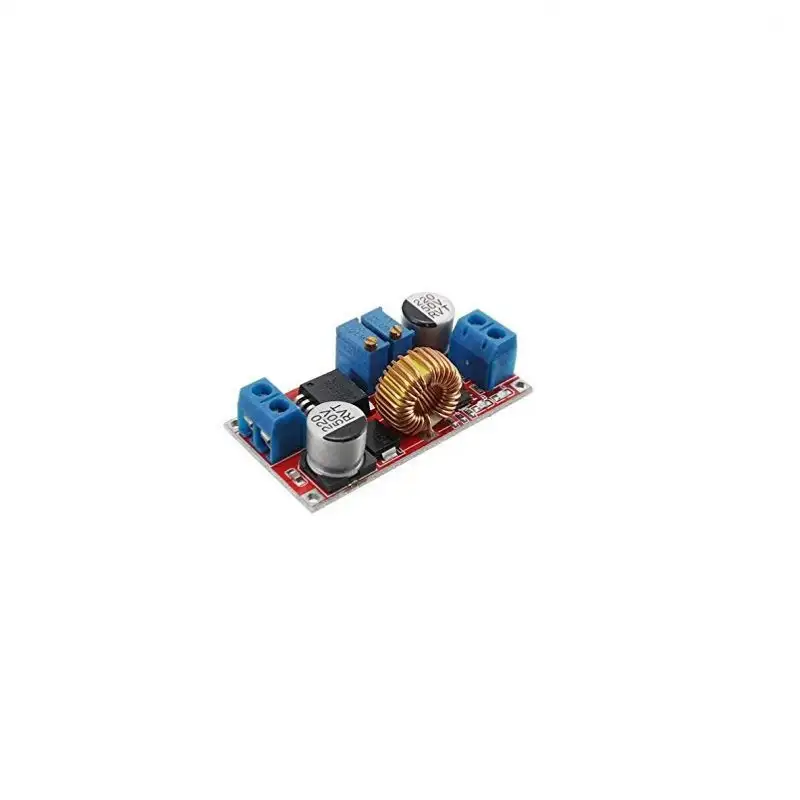

5A Constant Current / Voltage LED Drives Lithium Battery Charging Module

In Stock

Brand: Generic   |   SKU: 6471989

155.00

₹ 224.00

Save 31%
Tax Included and Shipping Rate Calculated at Checkout

Enter your pincode to check delivery options

Offer & Other Details

  • Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
  • Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
  • Sales Assistance: Contact us +91 8903831010 for personalized advice.

Description

This Buck converter can be used as a normal step-down module with overcurrent protection capability for various applications. It is used as a charger for various voltage lithium batteries, batteries, nickel-cadmium nickel-hydrogen batteries (battery packs), for solar panels, wind turbines, etc. This buck converter can also be used as a high power LED driver module.

The module comes with two modes of constant voltage and constant current, and there are indicators to indicate which mode the module is currently in. When used as a lithium battery charger, you can set the float voltage and charge current to show it is charging or already full. With current limiting protection, the module will not burn out even if the output is short-circuited.


Features:

  1. Short circuit protection: Yes(limited current 8A)
  2. Over-temperature protection: Yes (automatically turn off the output after over temperature)
  3. Input reverse connection protection: None, (If necessary, please input a large current diode in the input string)
  4. Installation method: 4 3mm silk
  5. Wiring method: terminal block or soldering terminal,
  6. V-IN is input.

Package Includes:

1 x 5A Constant Current / Voltage LED Drives Lithium Battery Charging Module



Specifications:

Input voltage Range

4-38V

Output voltage Range

1.25-36V continuously adjustable

Output current

adjustable, up to 5A

Output power

up to 75W

Working temperature(°C)

-40 ~ + 85 degrees

Working frequency

180KHz

Conversion efficiency

up to 96%

Length (mm)

50

Width (mm)

26

Height (mm)

12

Weight (gm)

33
