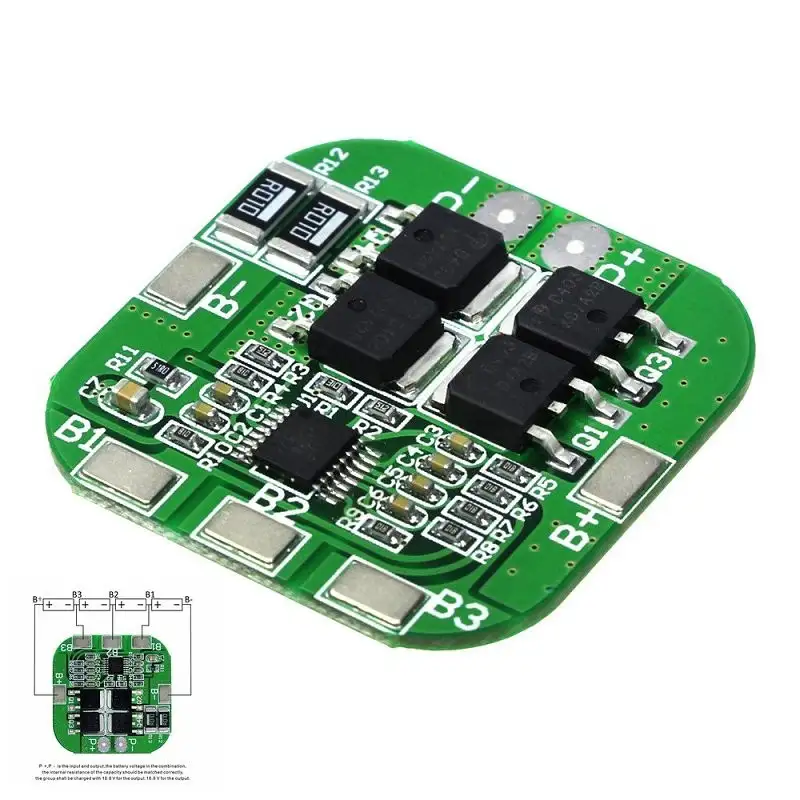

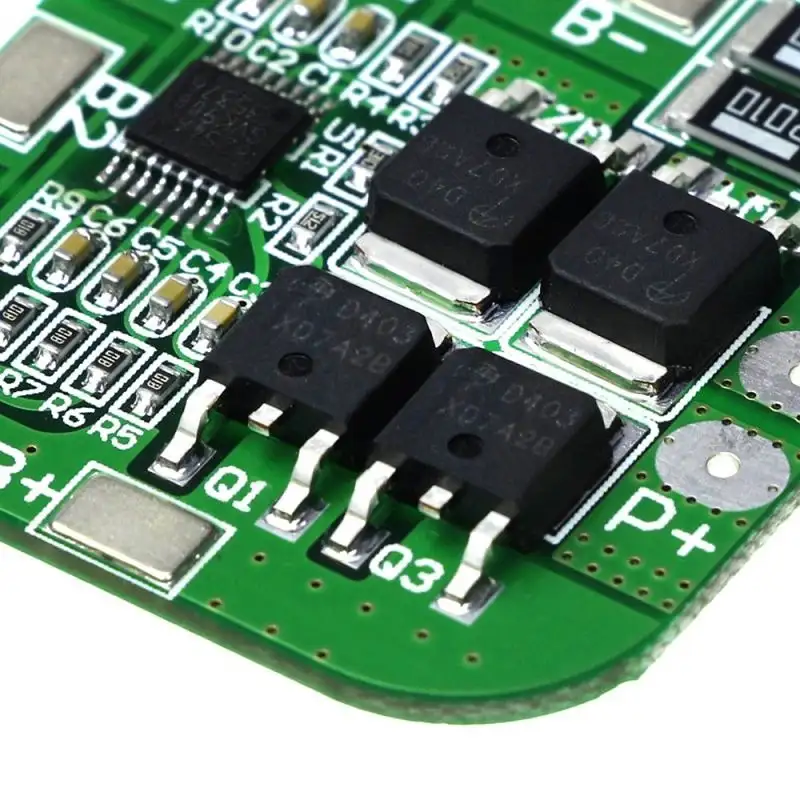

4S 15A 18650 Lithium Battery Protection Board

In Stock

Brand: Generic   |   SKU: 7829602

248.00

₹ 438.00

Save 43%
Tax Included and Shipping Rate Calculated at Checkout

Enter your pincode to check delivery options

Offer & Other Details

  • Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
  • Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
  • Sales Assistance: Contact us +91 8903831010 for personalized advice.

Description

Battery protection board, as the name suggests battery protection board is mainly rechargeable (Refers to the lithium battery) and protects the integrated circuit board. As the lithium battery, its material determines itself can not be overcharge, over-discharge, overcurrent, short circuit, and ultra-high temperature charge and discharge, so lithium battery lithium components will always follow A protective plate with sampling resistor, and a current fuse.

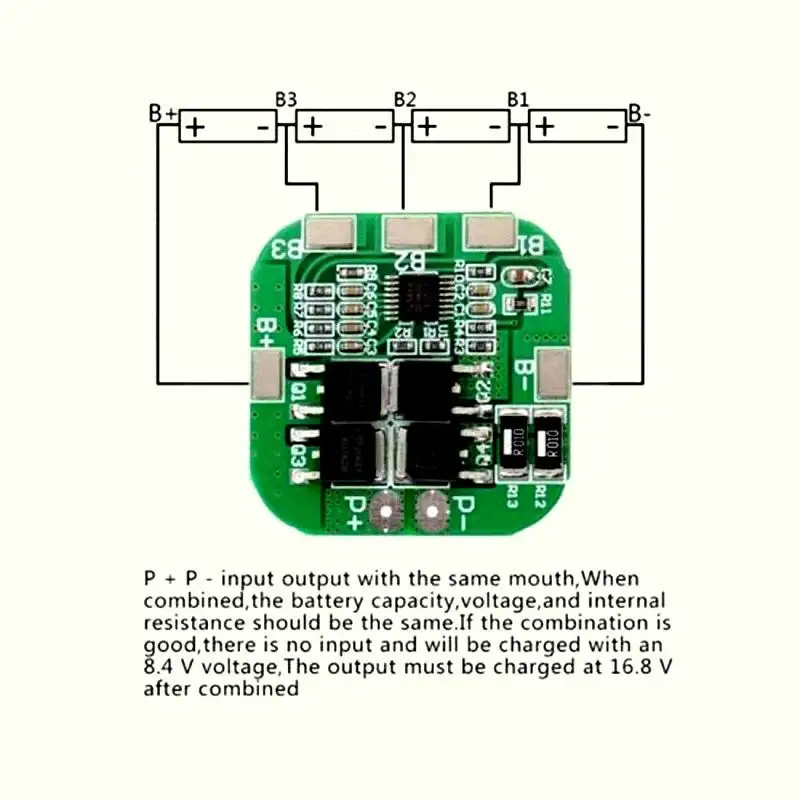

Providing all above features this 4S BMS board can combine 4 x 18650 battery to form a battery pack to provide up to 15V DC output at 15A current which can be used for heavy applications.


Features:

  1. Overcharging and Over Discharging Protection
  2. Short circuit protection: Yes
  3. Applicable assembly: Nominal 3.7V Batteries / 4 strings.

Package Includes:

1 x 4S 15A 18650 Lithium Battery Protection Board



Specifications:

Model

HX-4S-D20 Rev 1.1

Charging voltage range

16.8V

Over-discharge recovery voltage

2.5v ± 0.05v,

Over-Discharge-Delay-Time

144ms

Maximum Working Current

10A

Maximum Peak current

15A

Static current

Less than 8uA

Resistance

Less than 4m

Length (mm)

35

Width (mm)

35

Weight (gm)

6
