- 3S 20A 18650 Lithium Battery Protection Board
Click Image to Preview

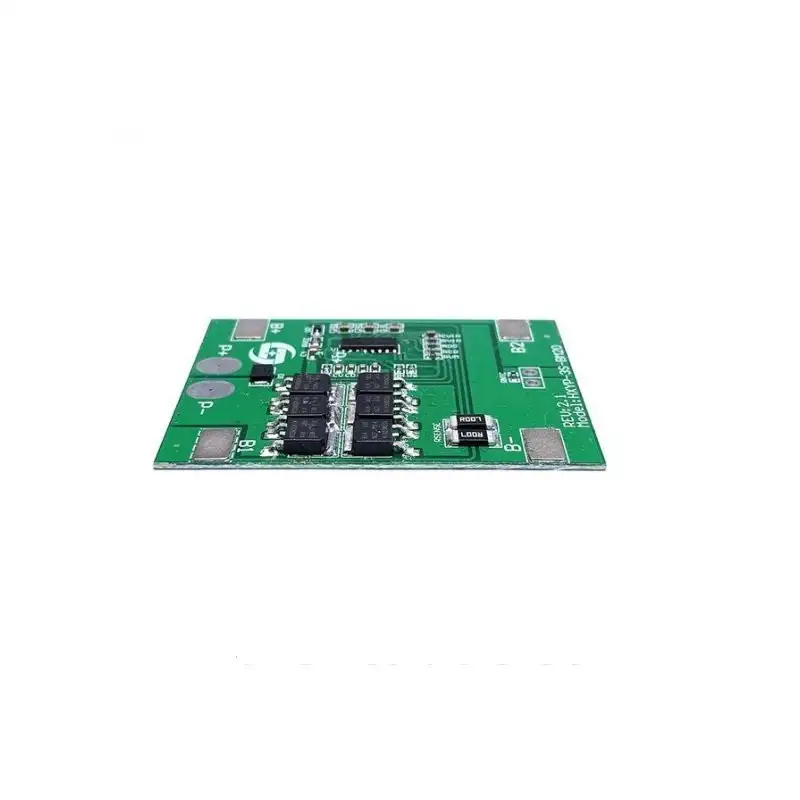

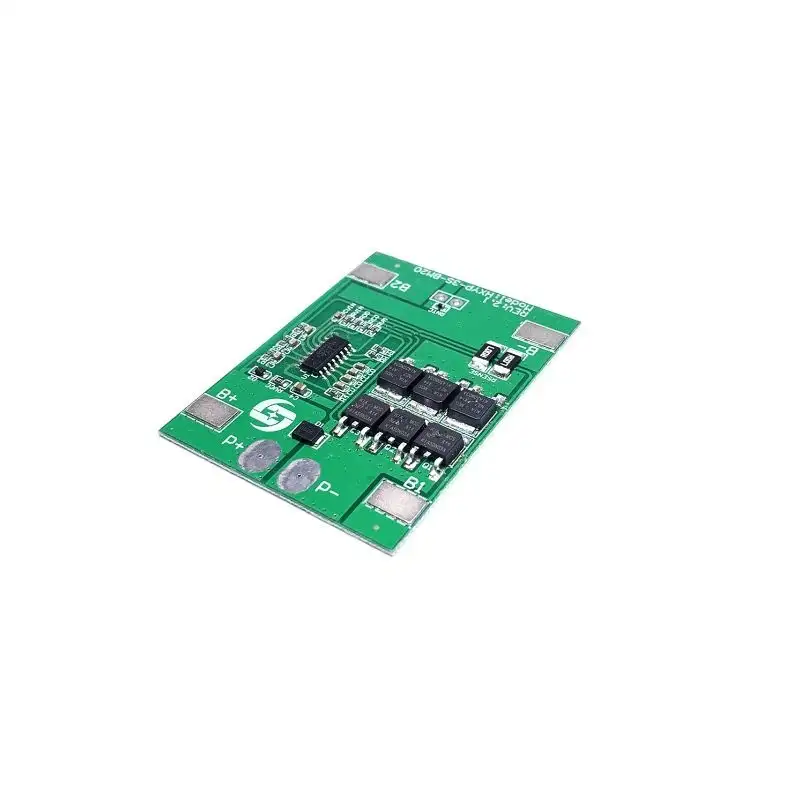

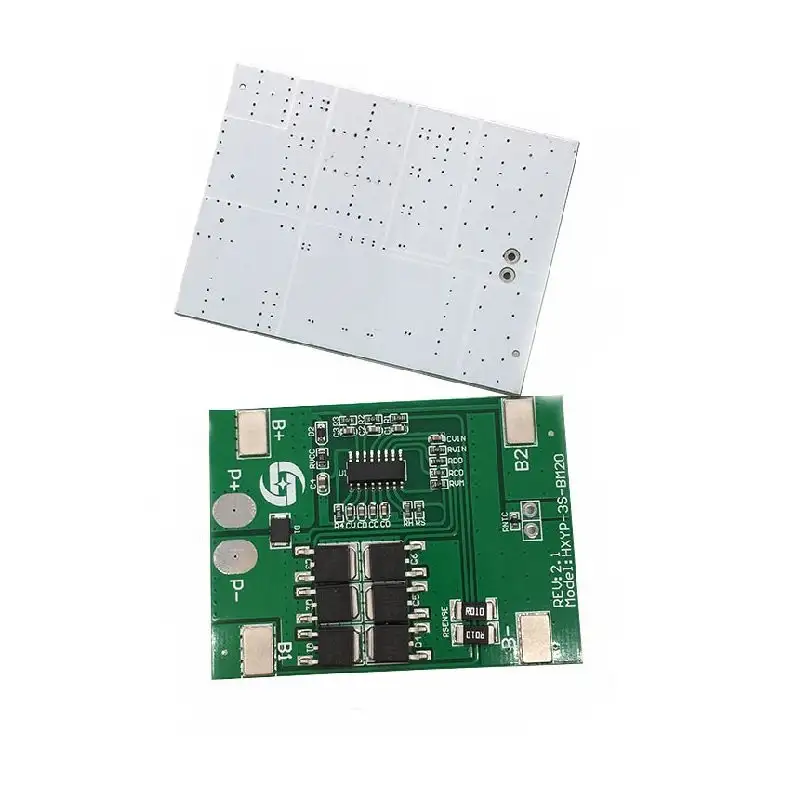

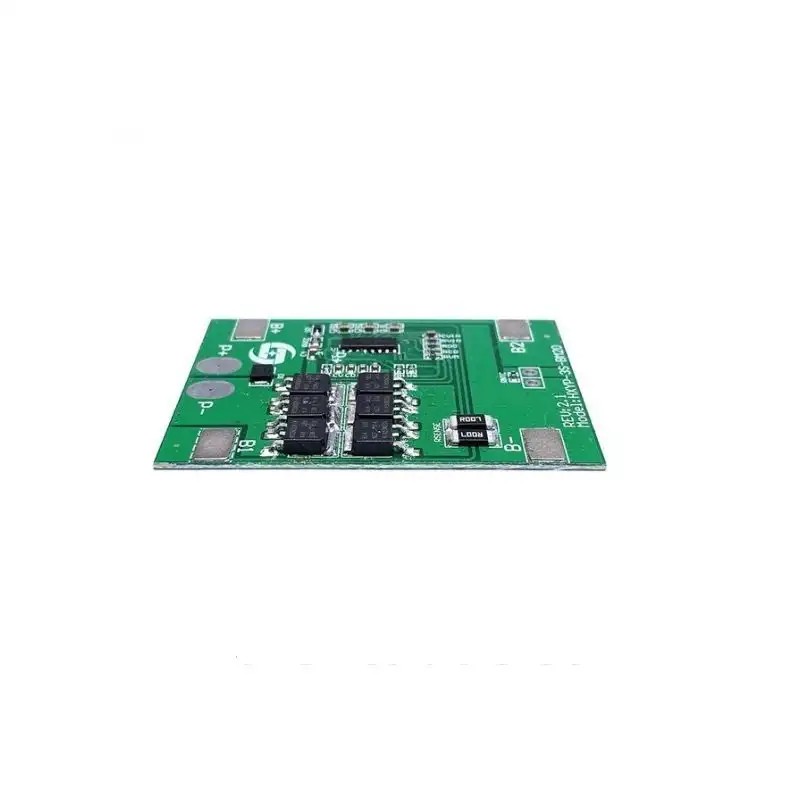

3S 20A 18650 Lithium Battery Protection Board
Brand: Generic | SKU: 3644051
₹ 299.00
₹ 461.00
Enter your pincode to check delivery options
Offer & Other Details
- Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
- Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
- Sales Assistance: Contact us +91 8903831010 for personalized advice.
Description
Battery protection board, as the name suggests battery protection board is mainly rechargeable (Refers to the lithium battery) and protects the integrated circuit board. As the lithium battery, its material determines itself cannot be overcharge, over-discharge, short circuit, ultra-high temperature charge, etc. So lithium battery lithium components will always follow A protective plate with a sampling resistor, and a current fuse.
Providing all the above features this 3S BMS board can combine 3 x 18650 battery to form a battery pack to provide up to 15V DC output at 20A current which can be used for heavy applications.
Features:
- Overcharging and Over Discharging Protection
- Short circuit protection: Yes
- Applicable assembly: Nominal 4.5V Batteries / 3 strings.
Package Includes:
1 x 3S 20A 18650 Lithium Battery Protection Board
Specifications:
| Model |
HXYP-3S-BM20 |
| Charging voltage(V) |
12.6V-13.6V |
| Over-Discharge recovery voltage |
3±0.05V |
| Over Discharge Delay Time(ms) |
150 |
| Maximum Working Current(A) |
20 |
| Maximum Peak Current(A) |
30 |
| Length (mm) |
65 |
| Width (mm) |
47 |
| Height (mm) |
10 |
| Weight (gm) |
12 |
|
|
