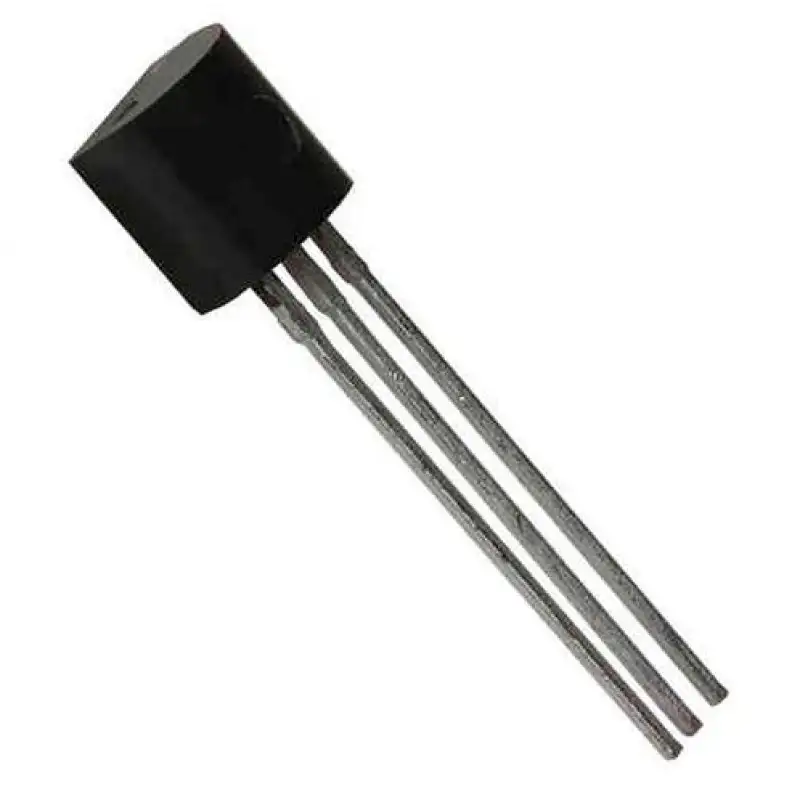

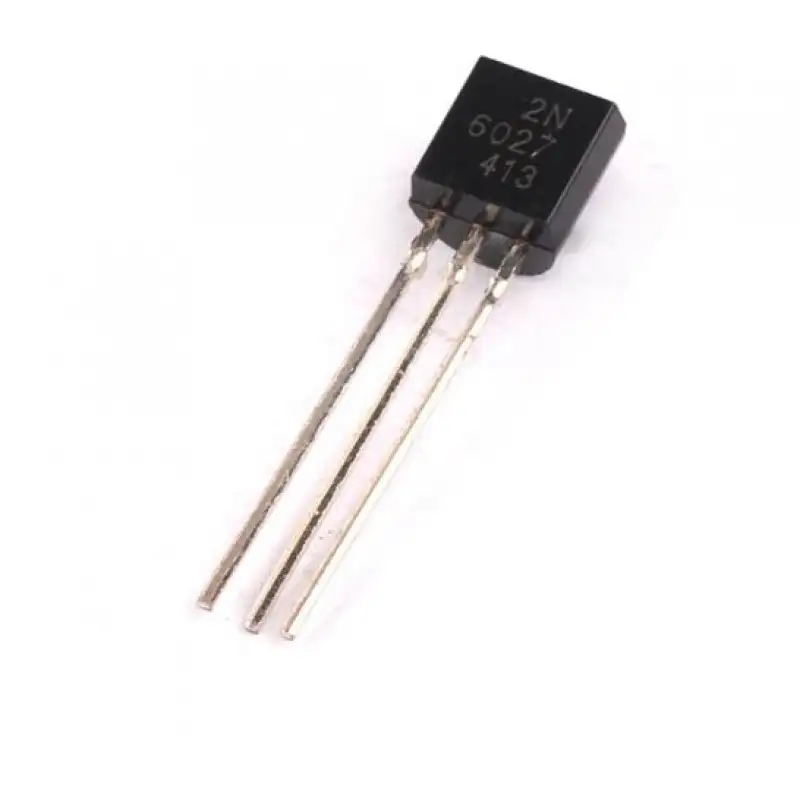

2N6027 Programmable Unijunction Transistor (UJT) 40V 300mW TO-92 Package

In Stock

Brand: Generic   |   SKU: 8483935

35.00

₹ 43.00

Save 19%
Tax Included and Shipping Rate Calculated at Checkout

Enter your pincode to check delivery options

Offer & Other Details

  • Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
  • Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
  • Sales Assistance: Contact us +91 8903831010 for personalized advice.

Description

2N6027 is Designed to enable the engineer to “program’’ unijunction characteristics such as RBB, IV and IP by merely selecting two resistor values. Application includes thyristor−trigger, oscillator, pulse and timing circuits. These devices may also be used in special thyristor applications due to the availability of an anode gate. Supplied in an inexpensive TO−92 plastic package for high−volume requirements, this package is readily adaptable for use in automatic insertion equipment.


Features:-

• Advanced process technology

• Low error voltage

• Fast switching speed

• Full-voltage operation

• High power and current handling capability


Detailed Specifications:-

Gate to Cathode Forward Voltage (VGKF) 40V
Gate to Cathode Reverse Voltage (VGKR) 5V
Gate to Anode Reverse Voltage (VGAR) 40V
Anode to Cathode Voltage (VAK) 40V
Offset Voltage (VT) 1.6V
DC Forward Anode Current (IT) 150mA
DC Gate Current (IG) 50mA
Non−Repetitive Peak Forward Current (ITSM) 5A
Operating Temperature Range -50 - 100°C
Power Dissipation (PD) 300mW


Related Documents:-

2N6027 UJT Datasheet
