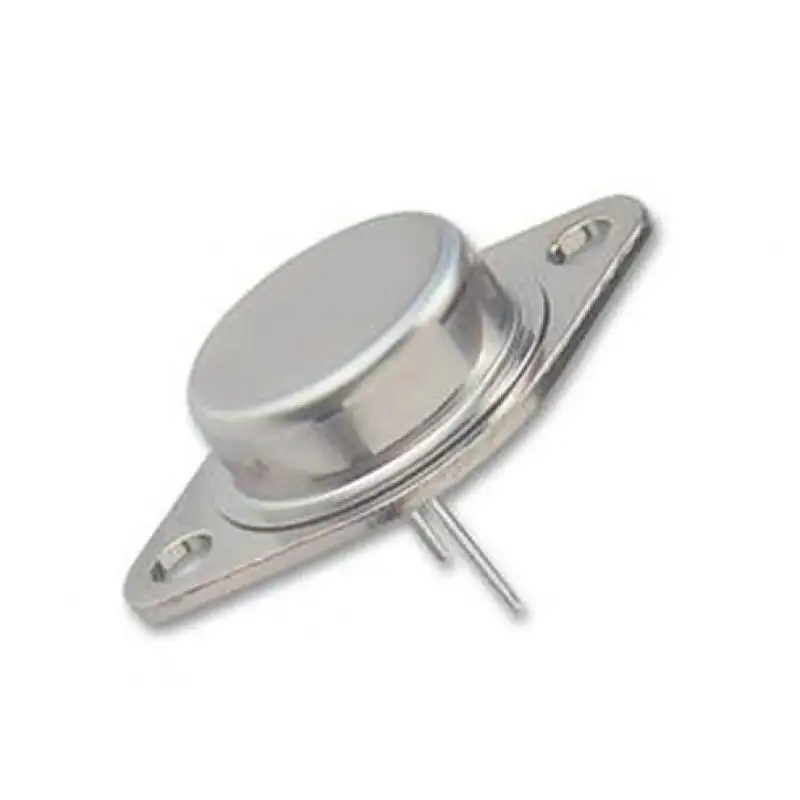

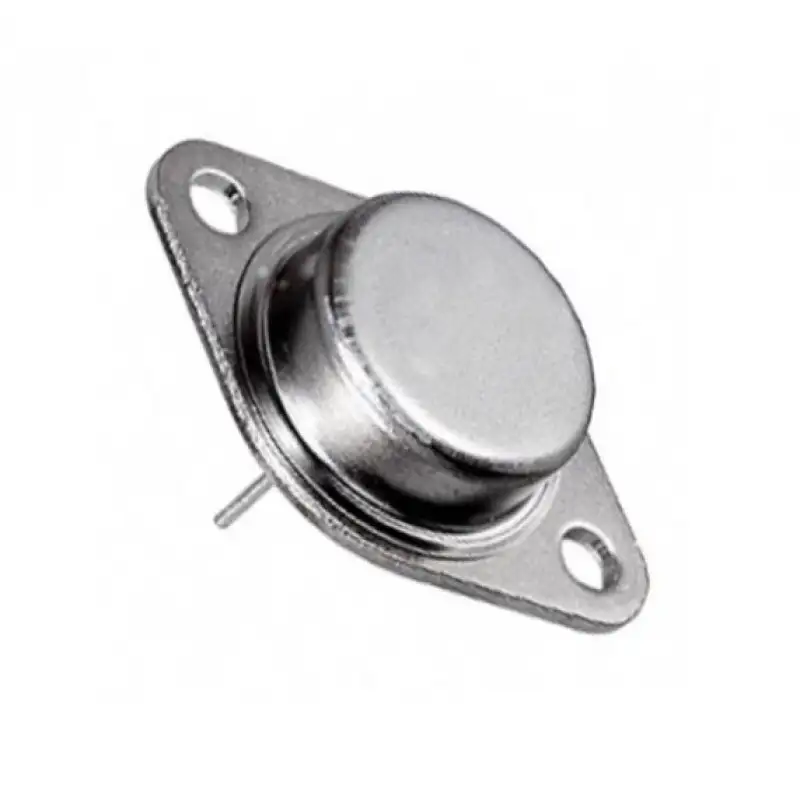

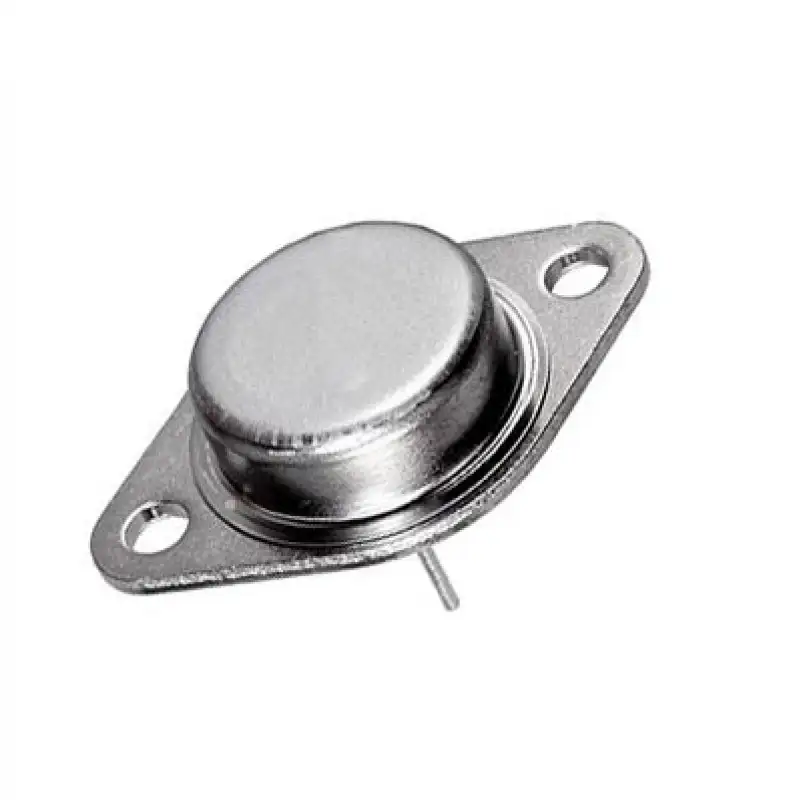

2N3773 NPN High Power Transistor 140V 16A TO-3 Metal Package

2N3773 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits.

Features:-

• Metal TO-3 CAN case

• High power dissipation

• Advanced process technology

• Low error voltage

• Fast switching speed

• Full-voltage operation

• High power and current handling capability

Detailed Specifications:-

Related Documents:-

2N3773 Transistor Metal Datasheet
