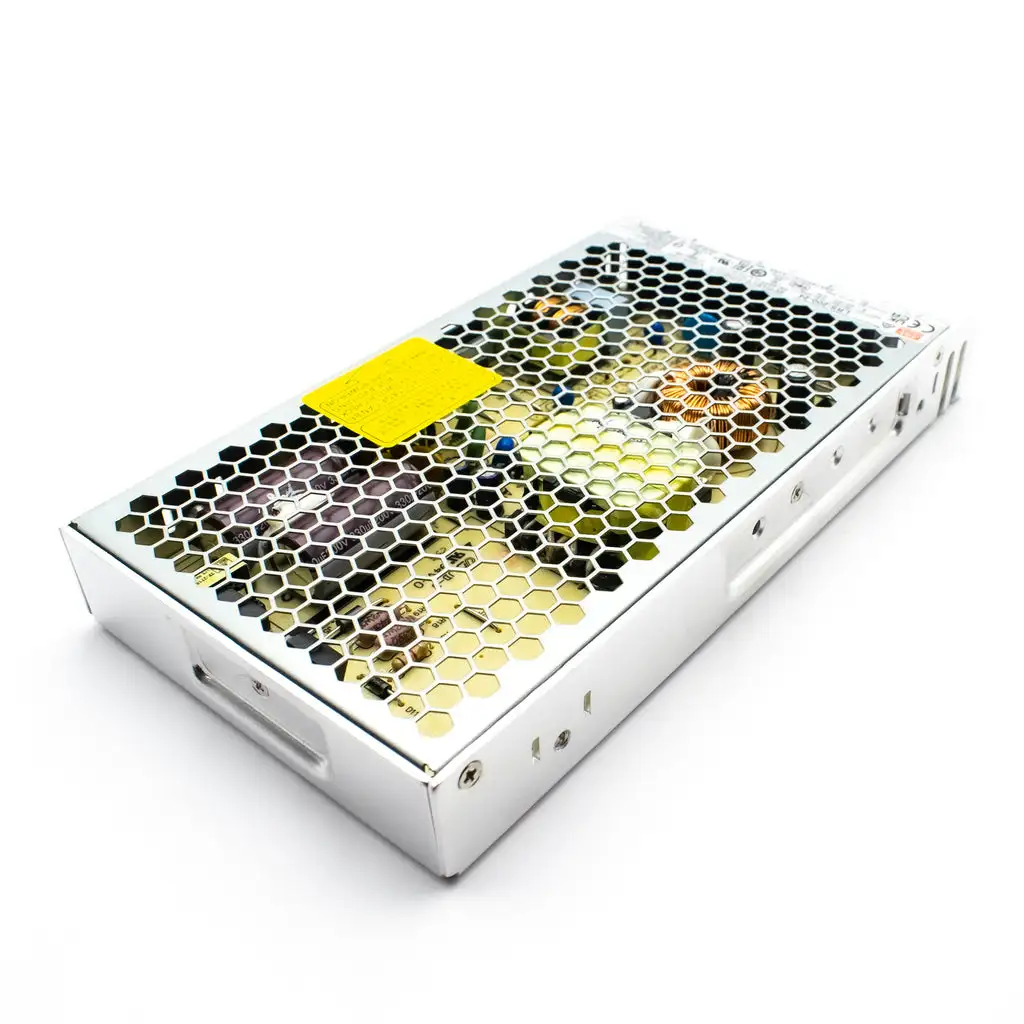

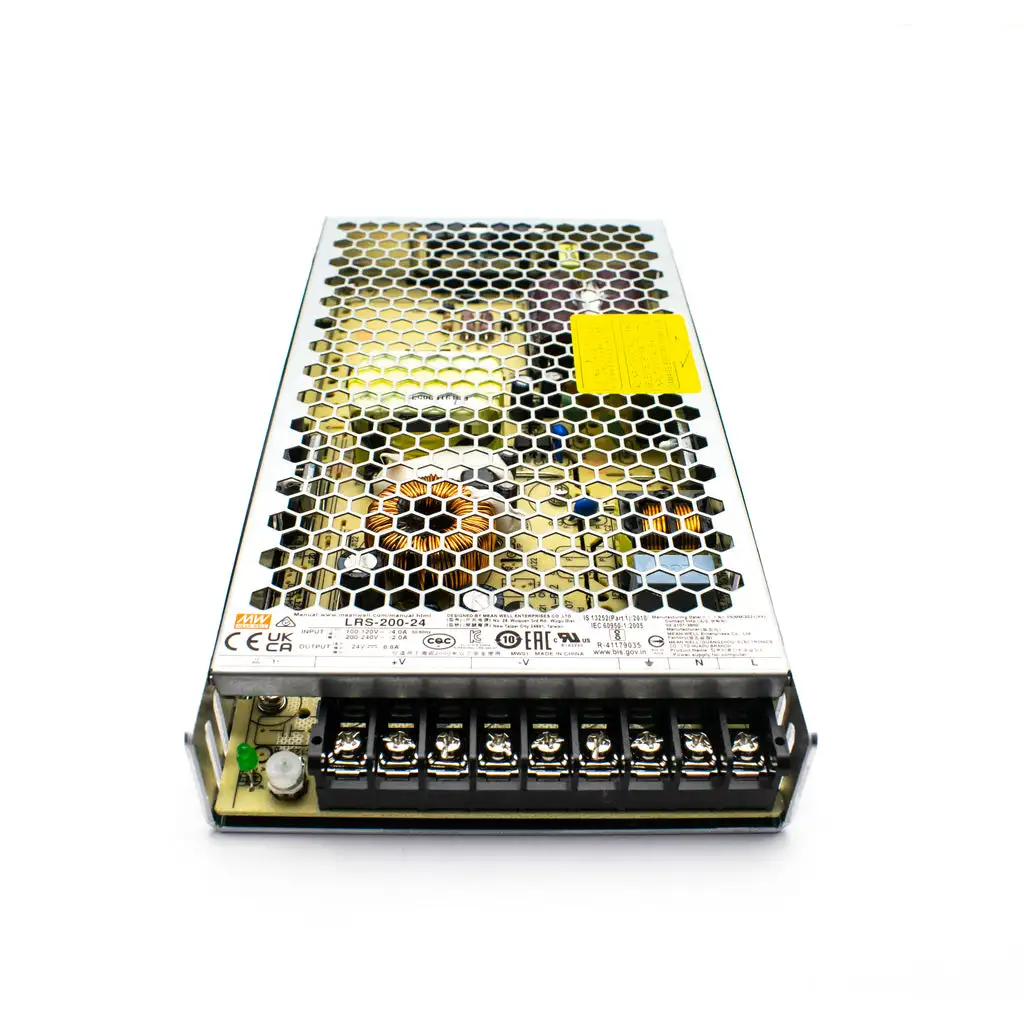

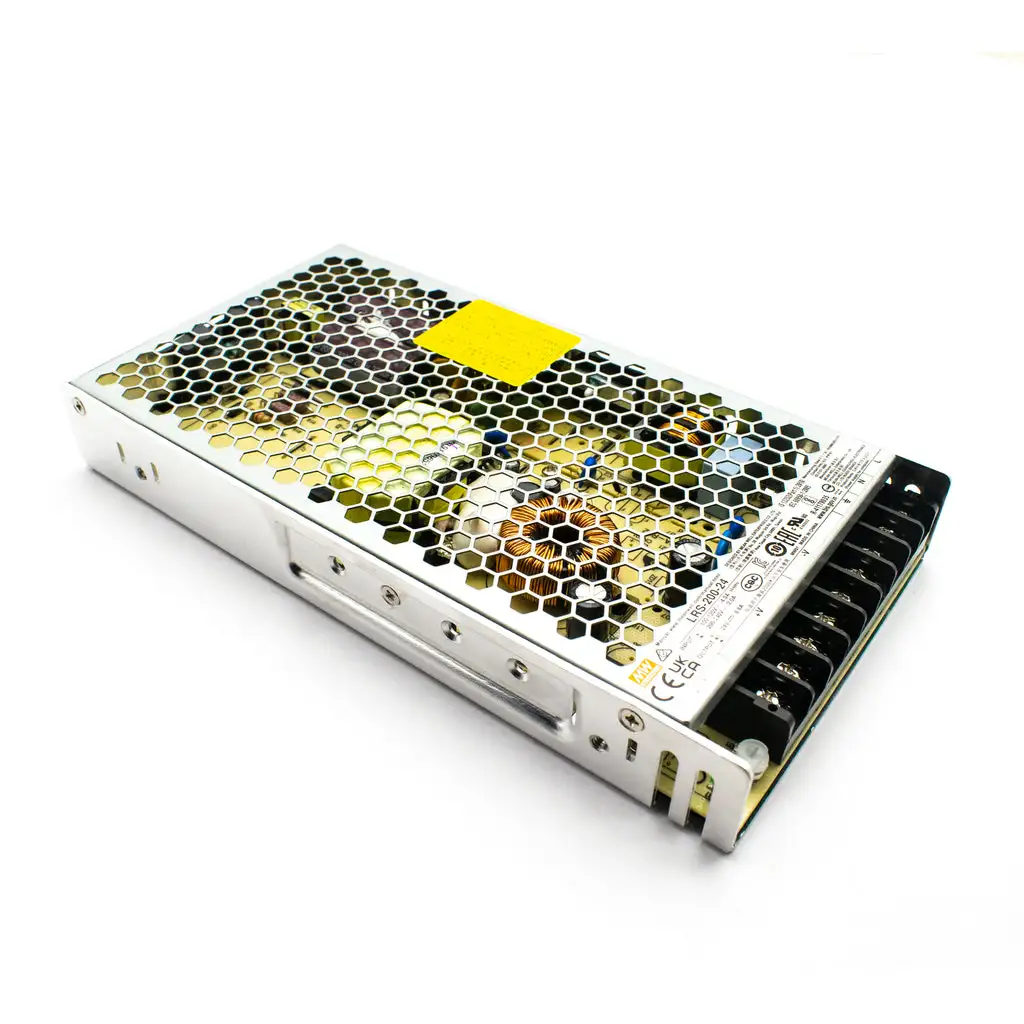

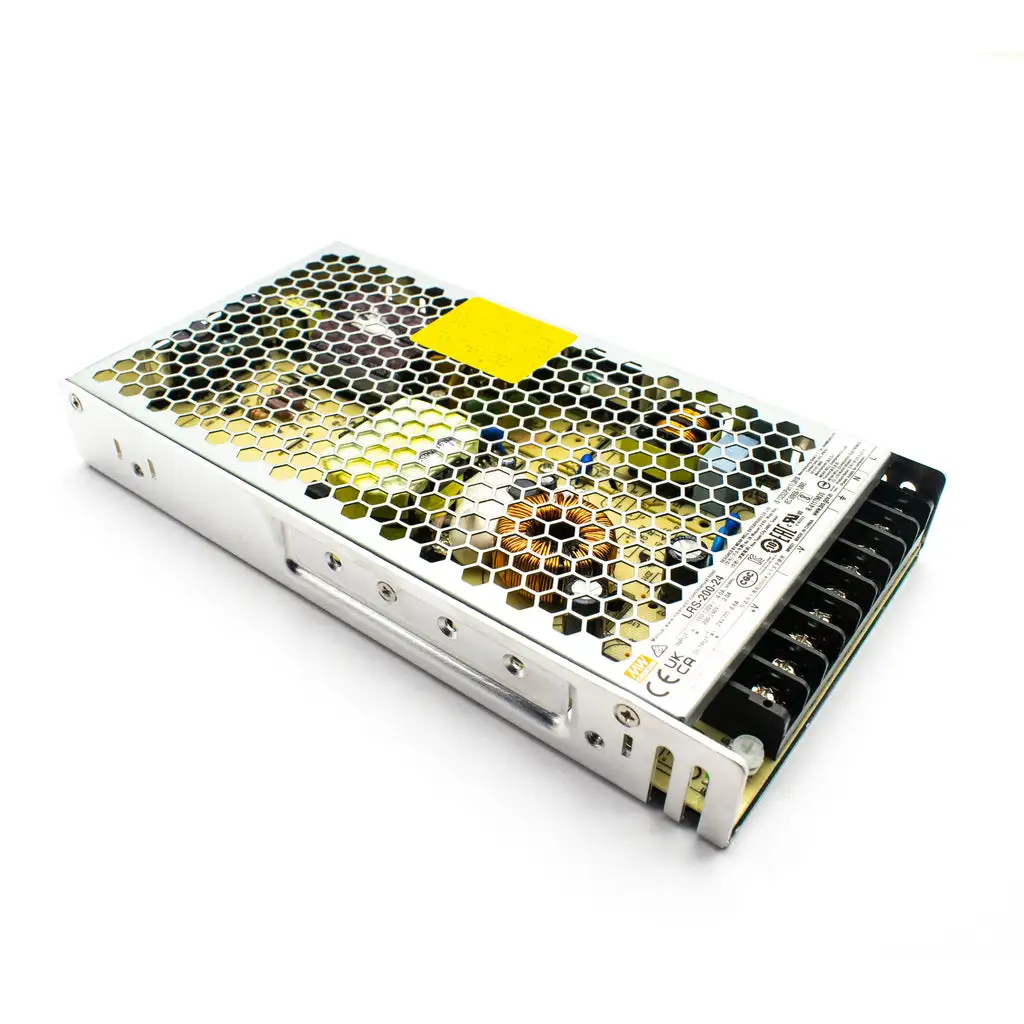

24V 200W Meanwell SMPS (LRS-200-24)

LRS-200-24 is a 211W 24V 8.8A single-output enclosed type power supply with 30mm of low profile design. It supports input power of 100-120V AC @4A, 200-240V AC @2.0A and provides a 24V output with a maximum load current of 8.8A. In addition to the high efficiency of up to 90%, the design of the metallic case enhances the heat dissipation of LRS-200-24 that operates from -25°C to 70°C under air convection without a fan. Delivering an extremely low no-load power consumption (less than 0.75W), allows the end system to easily meet the worldwide energy requirement. Meanwell's LRS-200-24 has complete protection functions and 5G anti-vibration capability; it complies with the international safety regulations such as UL 60950-1. Meanwell's LRS-200-24 is a high-quality Industrial Grade SMPS. The LRS200-24 SMPS is a 200 watt SMPS that outputs 24 volts. Meanwell's LRS-200 -24 switching power supply has a mesh casing and is simple to install.

Feature

16ms/230V AC, 12ms/115V AC at full load

90~132V AC/ 180~264V AC by switch 240~370V DC (switch on 230V AC)

47~63Hz

89.5%

4A/115V AC, 2.0A/240V AC

28.8V~33.6V

-25°C to 70°C

20~90%

215x115x30mm
