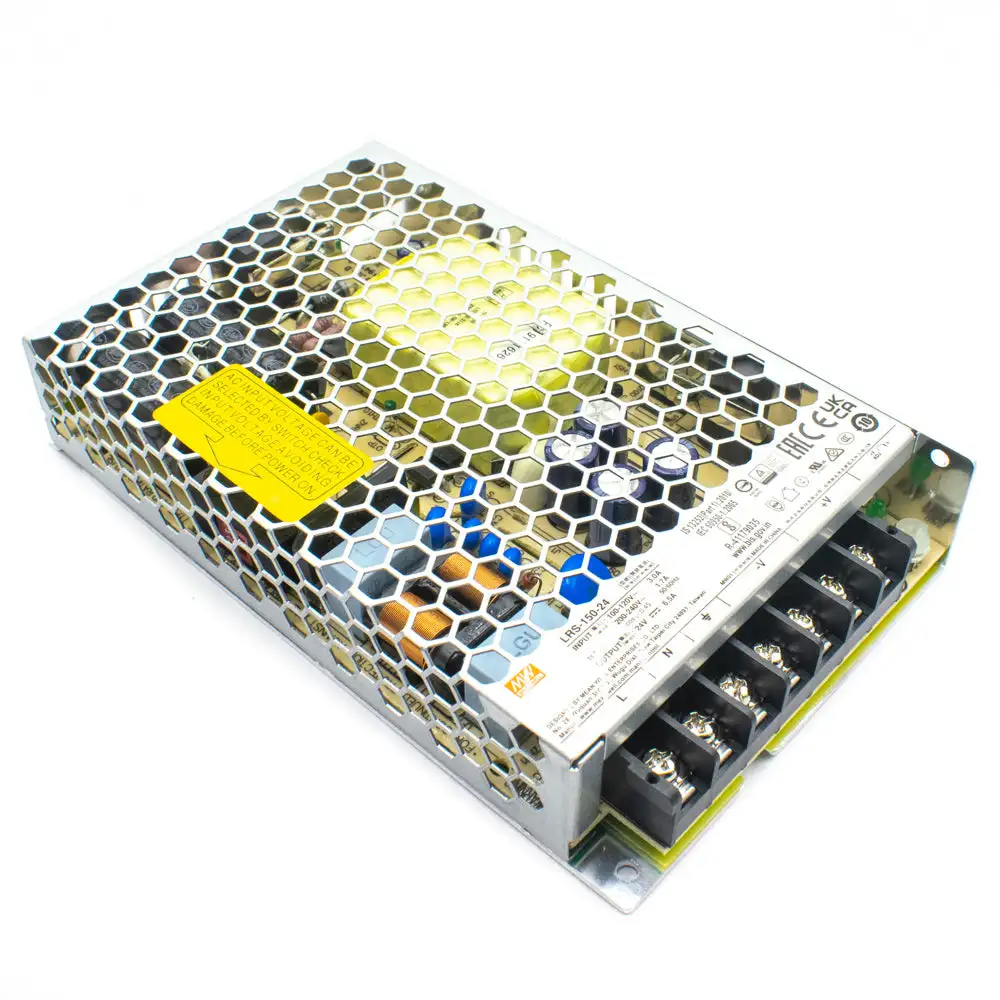

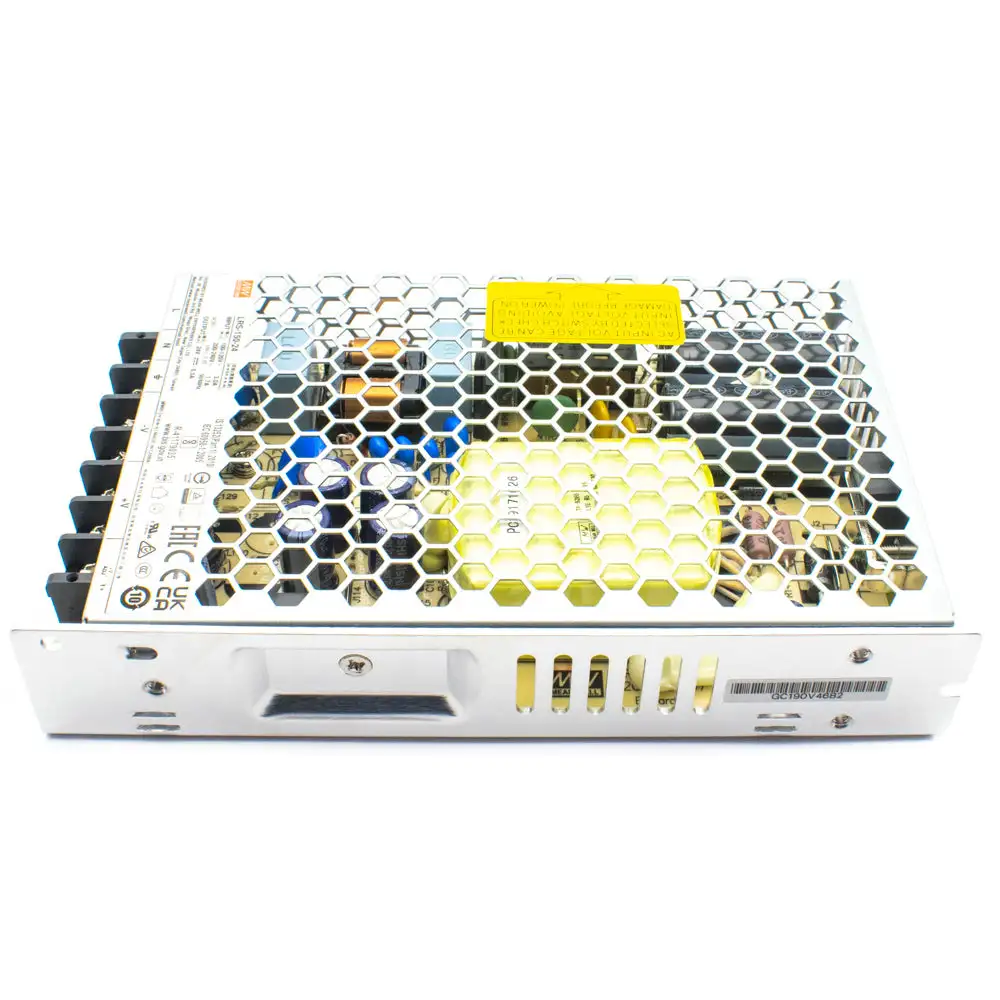

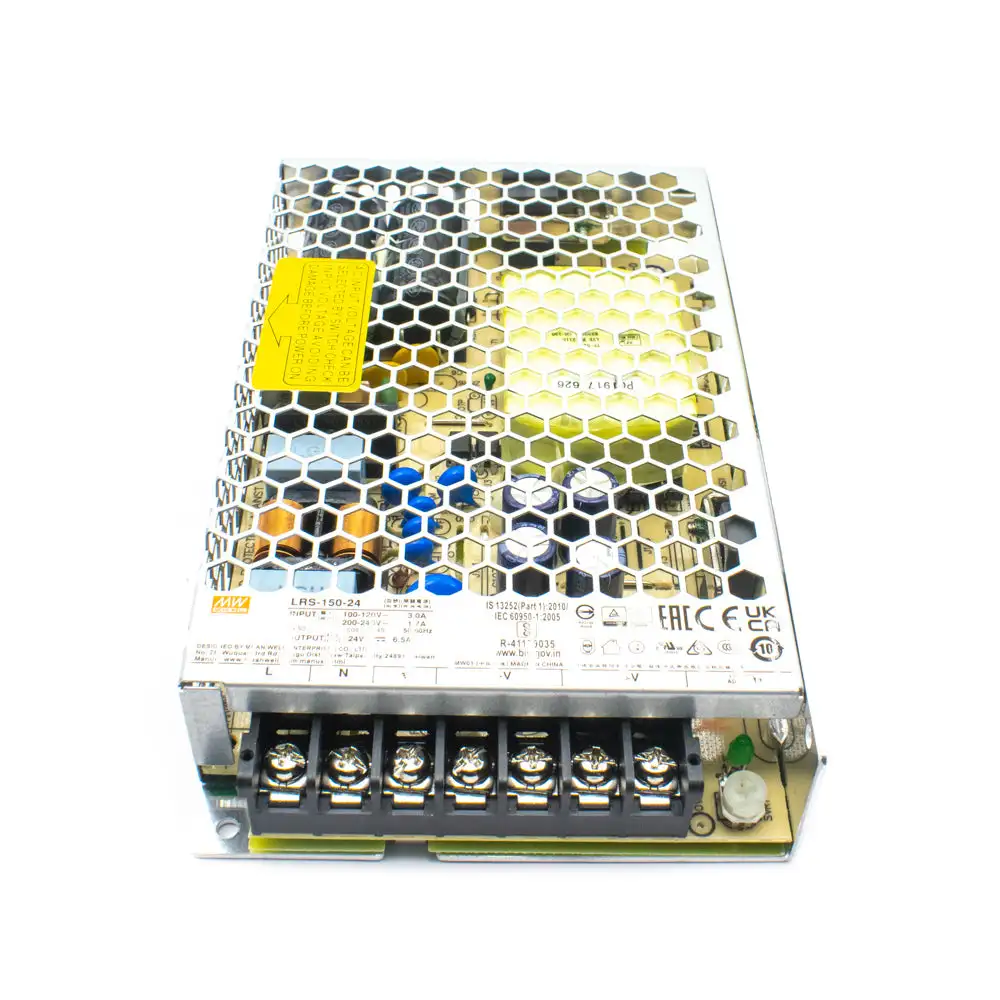

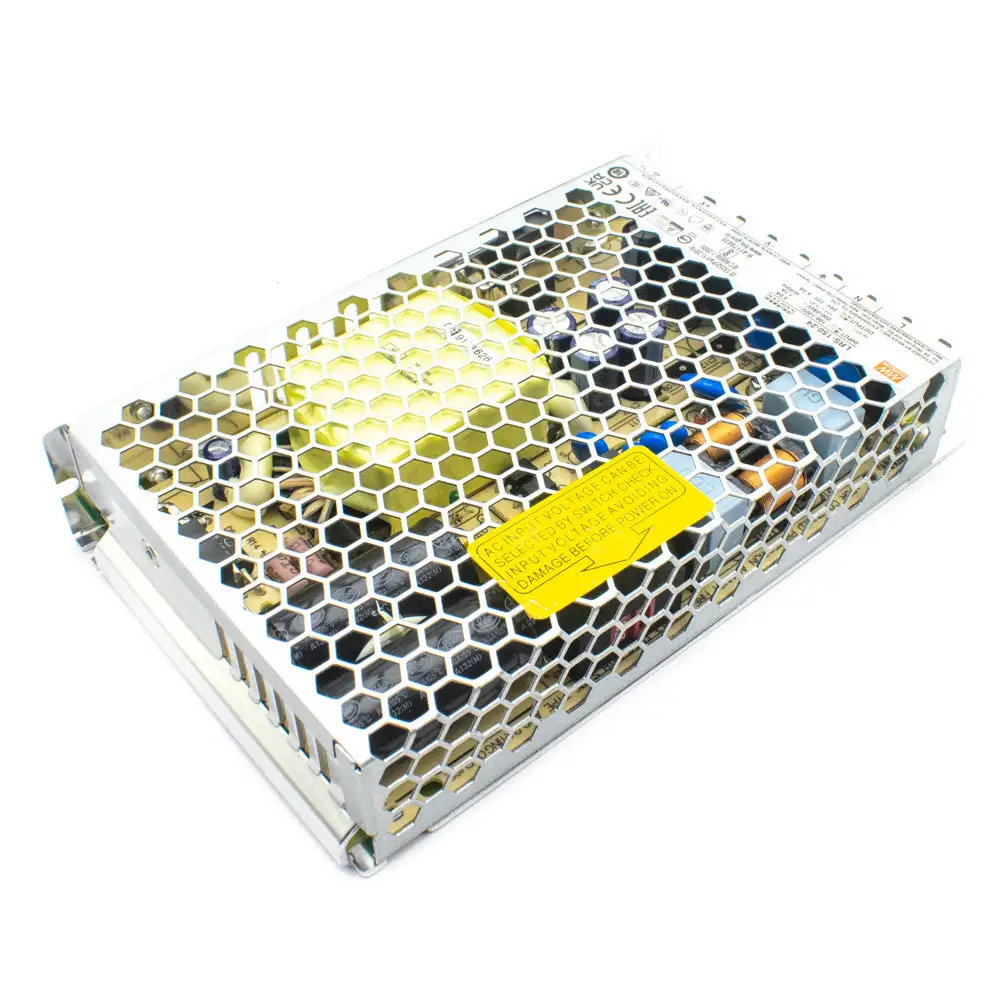

24V 150W Meanwell SMPS (LRS-150-24)

Meanwell's LRS-150 series is a 150W single-output enclosed type power supply with 30mm of low profile design. The AC input is  85~264VAC which could be directly supplied from the house supplied voltage. The output from SMPS will be 24V. The SMPS has high efficiency up to 89%, the design is of metallic mesh case which enhances the heat dissipation of  LRS-150 that the whole series operates from -30°C through 70°C under air convection without a fan. It has extremely low no-load power consumption (less than 0.5W), which allows the end system to easily meet the worldwide energy requirement. Meanwell's  LRS-150 has complete protection functions and 5G antivibration capability; it complies with international safety regulations such as TUV EN60950-1, EN60335-1,EN61558-1/-2-16, UL60950-1 and GB4943. LRS-150 series can be used for many purposes with the best performance from it.

Pinout

Features
