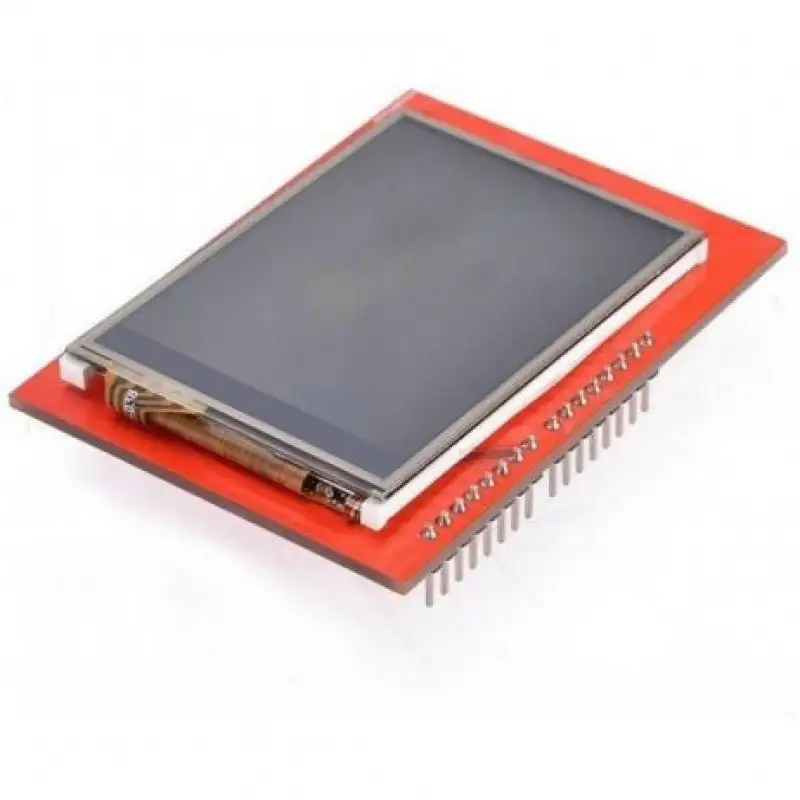

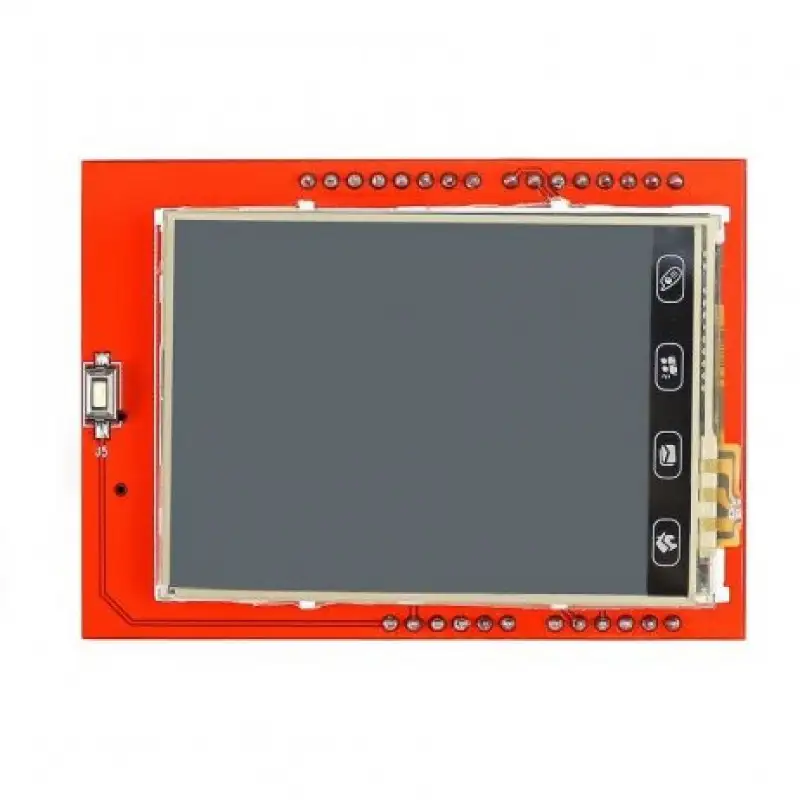

2.4 Inch Touch Screen TFT Display Shield for Arduino UNO Mega

2.4 Inch Touch Screen TFT Display Shield adds a touch up to your Arduino project with a beautiful large touchscreen display shield with built-in micro SD card connection. This TFT display is big (2.4 diagonal) bright and colorful! 240320 pixels with individual pixel control. It has way more resolution than a black and white 12864 display.

Features:

1. 2.4 diagonal Touch LCD TFT display
2. 240320 resolution, 18-bit (262,000) color
3. 8-bit digital interface, plus 4 control lines
4. 5V compatible! Use with 3.3V or 5V logic
5. Onboard 3.3V 300mA LDO regulator
6. Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3, and analog 4 and 5. Pin 12 is available if not using the microSD
7. Works with any Arduino Uno and mega compatible boards

Package Includes:

1 x 2.4 Inch Touch Screen TFT Display Shield for Arduino UNO Mega

1 x Stylus Pen
