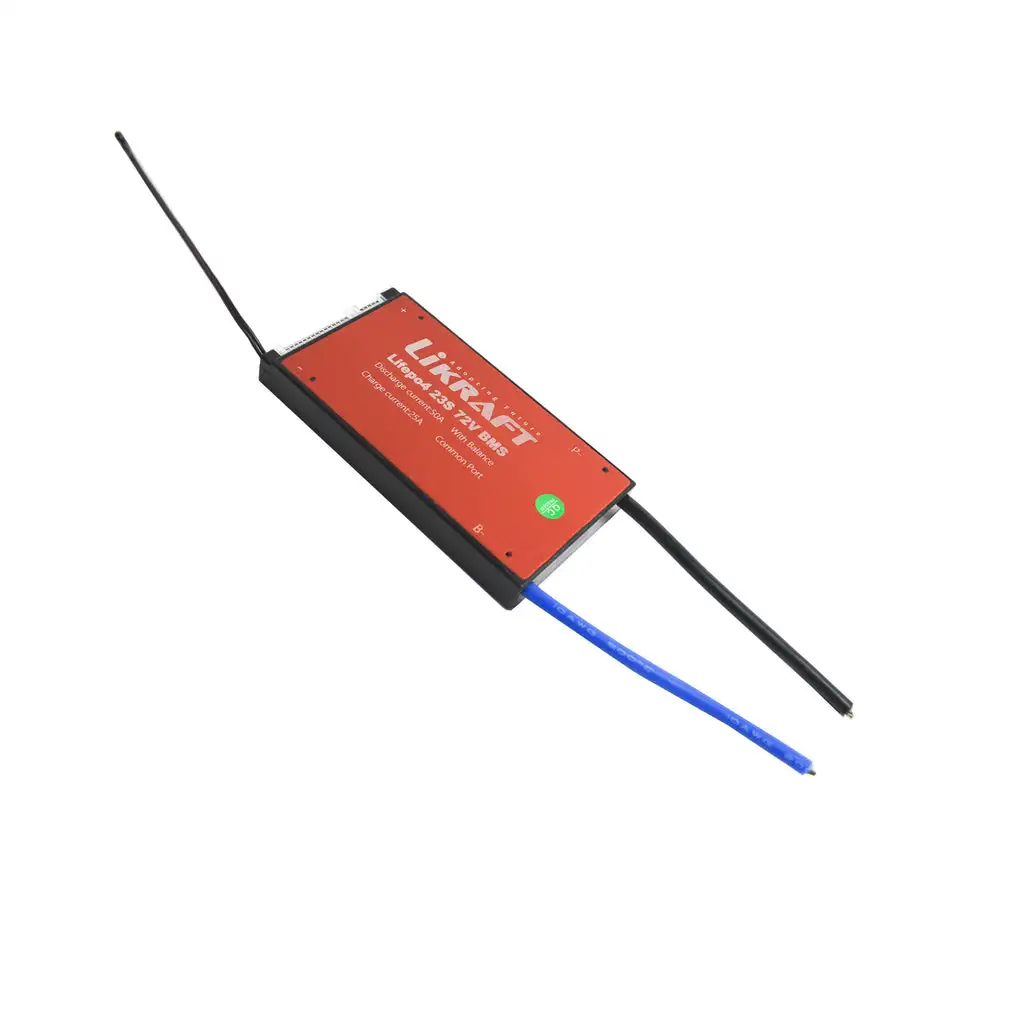

23S 72V 50A LiFePO4 Battery BMS Waterproof with Balance Charging

This is a 23S 72V 50A Lithium Battery Protection Board (PCM BMS)for balance charging. A-level protective integrated circuit IC is used. It is a dependable alternative for battery packs thanks to its large load capacities and 50A continuous discharge current performance. It has a power MOSFET with low internal resistance and high voltage resistance. The heat sink will help with cooling greatly.

This charge-discharge controller module can be simultaneously connected to a sequence of 23 rechargeable batteries. The circuit is straightforward and reliable, but the IC itself contains a power balancing feature. For each cell, it has standard voltage detection. As a result, overcharging or over-discharging of each battery will be avoided.This BMS has a reliable Over current and short circuit protection function due to which a long time short circuit of the load won't affect the PCB and the battery.  Continuous temperature monitoring through NTC and thermal protection during charging and discharging. Extremely low power consumption and the current consumption of the whole device is less than 100uA. This BMS uses a high anti-corrosion, high water resistance, and high impedance ESD conformal coating.

Features
