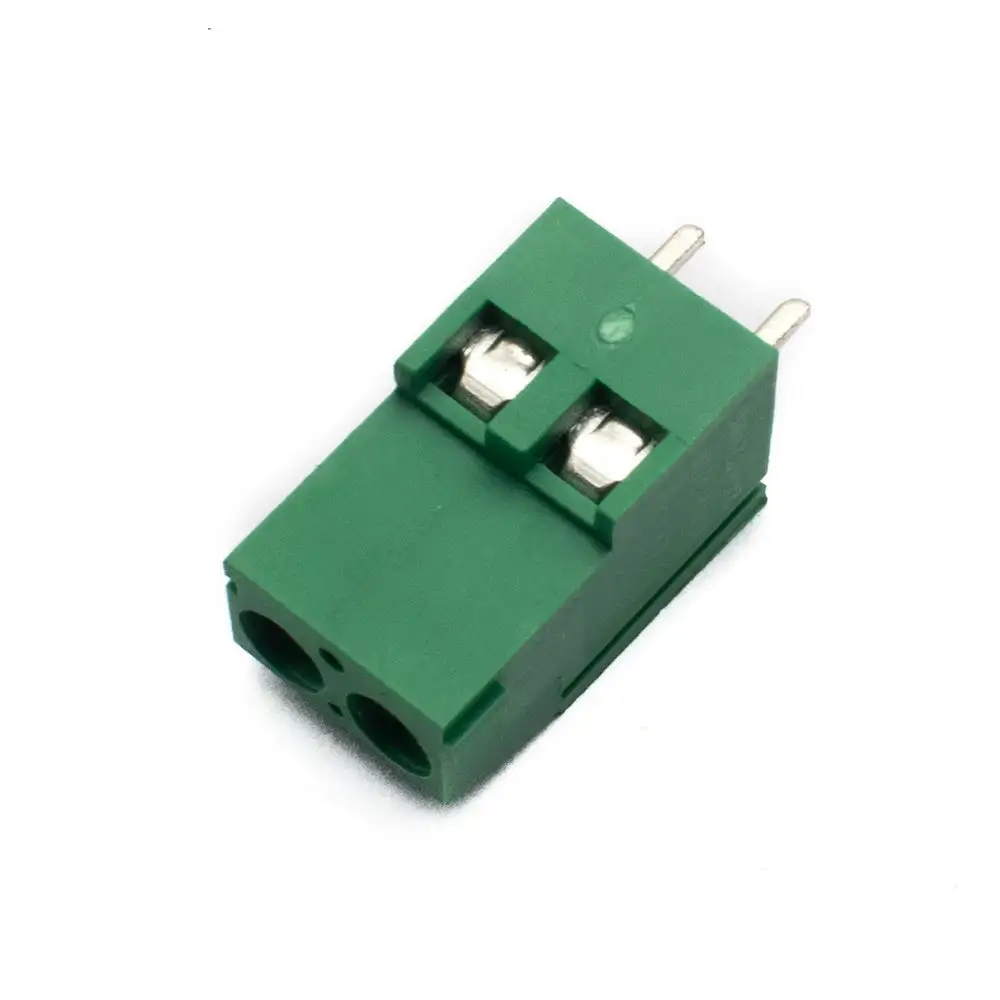

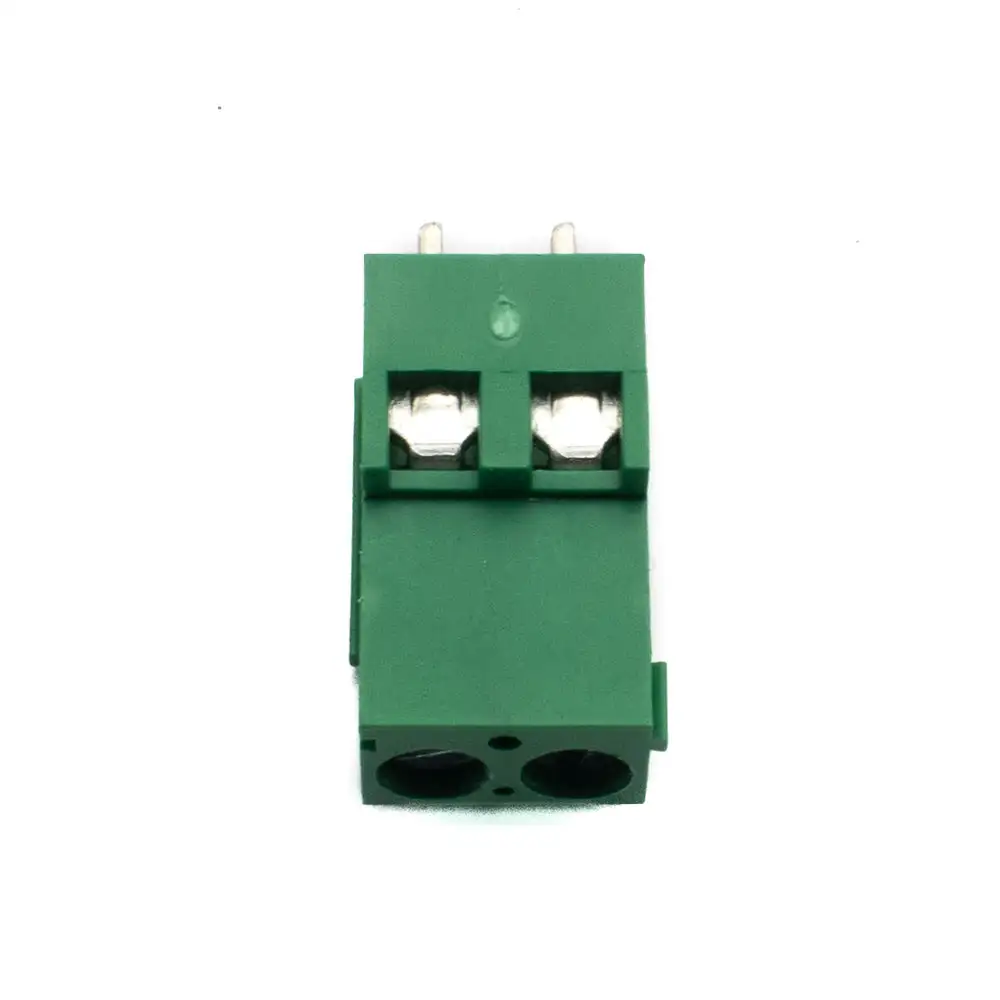

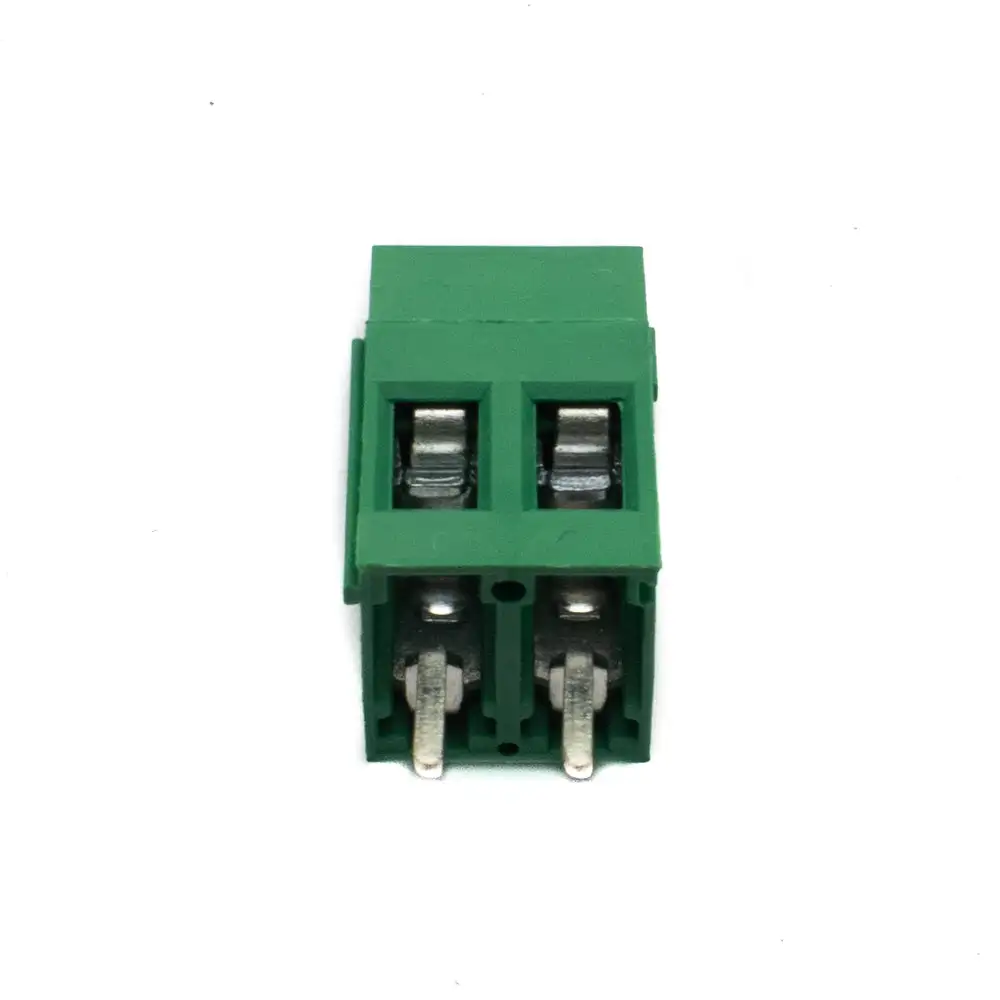

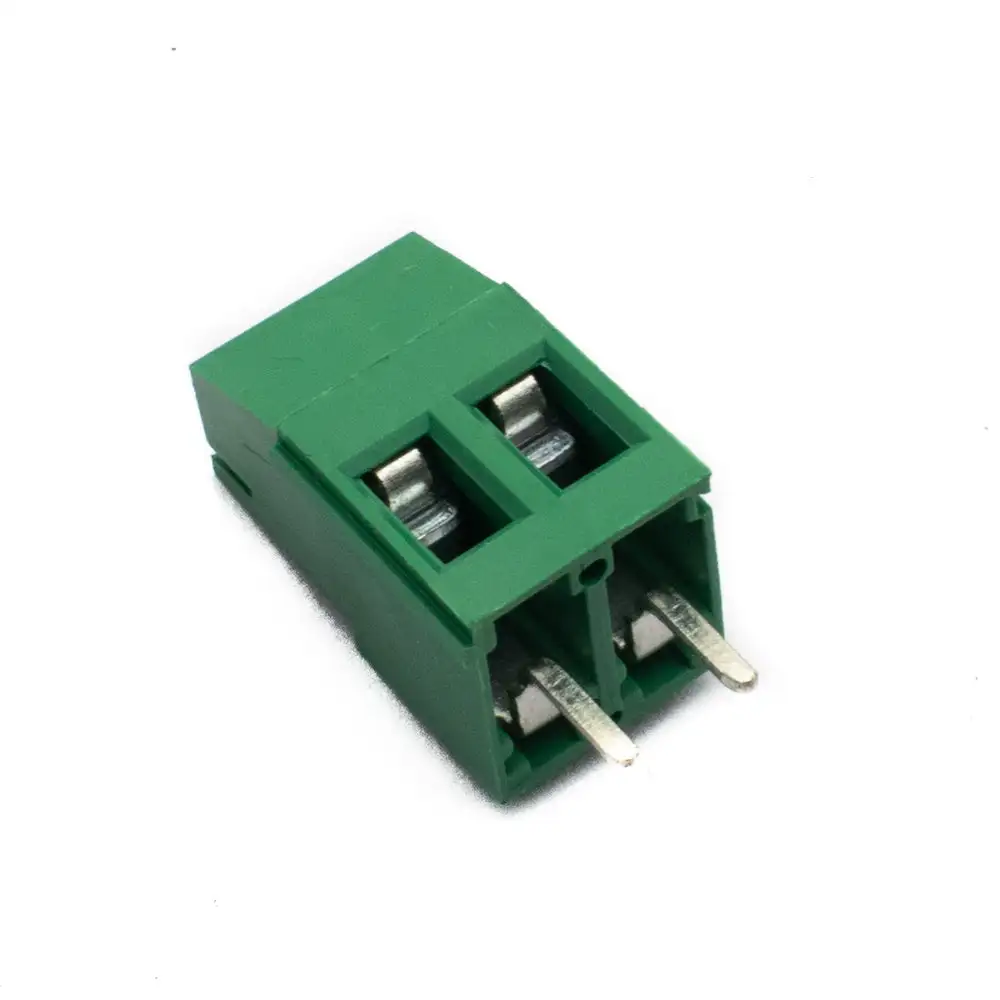

2 Pin PCB Terminal Block 5mm Pitch 20A Rating ZB129
Brand: Generic | SKU: 9332319
₹ 5.00
₹ 6.00
Enter your pincode to check delivery options
Offer & Other Details
- Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
- Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
- Sales Assistance: Contact us +91 8983831010 for personalized advice.
Description
Terminal blocks (also known as screw terminals) are electrical connectors that allow you to connect wires in the same circuit without cutting or splicing them. Screw with 2 pins. The Terminal Block is a multifunctional and small terminal block. It's used to connect wires to the circuit board. The terminal block's small size allows it to connect two conductors on a PCB where space is at a premium. The wires are held in place by screws on this terminal block. It can hold wires ranging in size from 24 to 12 AWG Allowed wire size.This terminal block is perfect for tiny rack systems or telecoms equipment that requires a lot of contacts. Each terminal has a single corresponding pin separated every (5mm) (if there is sufficient clearance from nearby components). It has tin-plated brass for pin header and has nickel-plated brass contacts. The connector is made of PBT (Polybutylene terephthalate) which is mechanically strong, heat resistant (UL94-0), and has good insulation properties.
Max. Operating Current
20A
Max. Voltage
300V
Material Used
Metal and plastic
Allowed Wire Size (AWG)
24 ~ 12
No. of contacts
2
L*B*H
10.6*10.4*18mm
