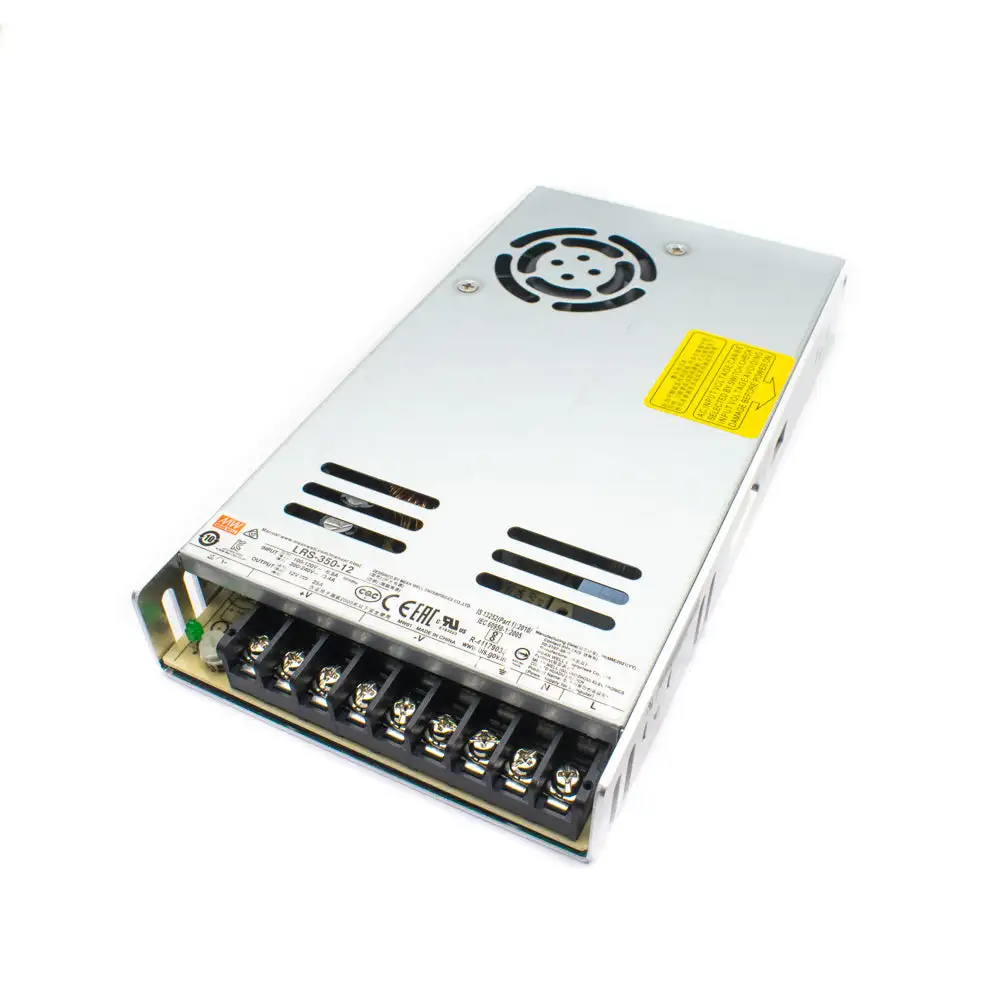

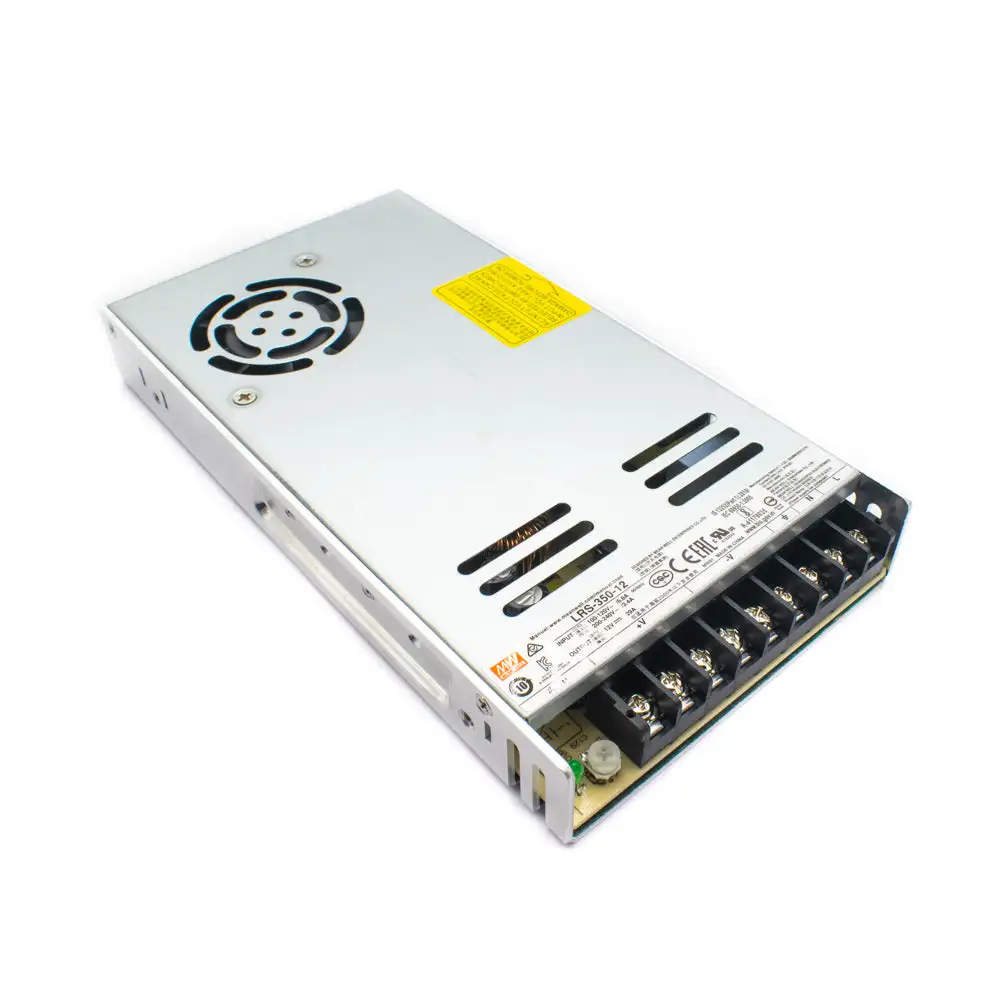

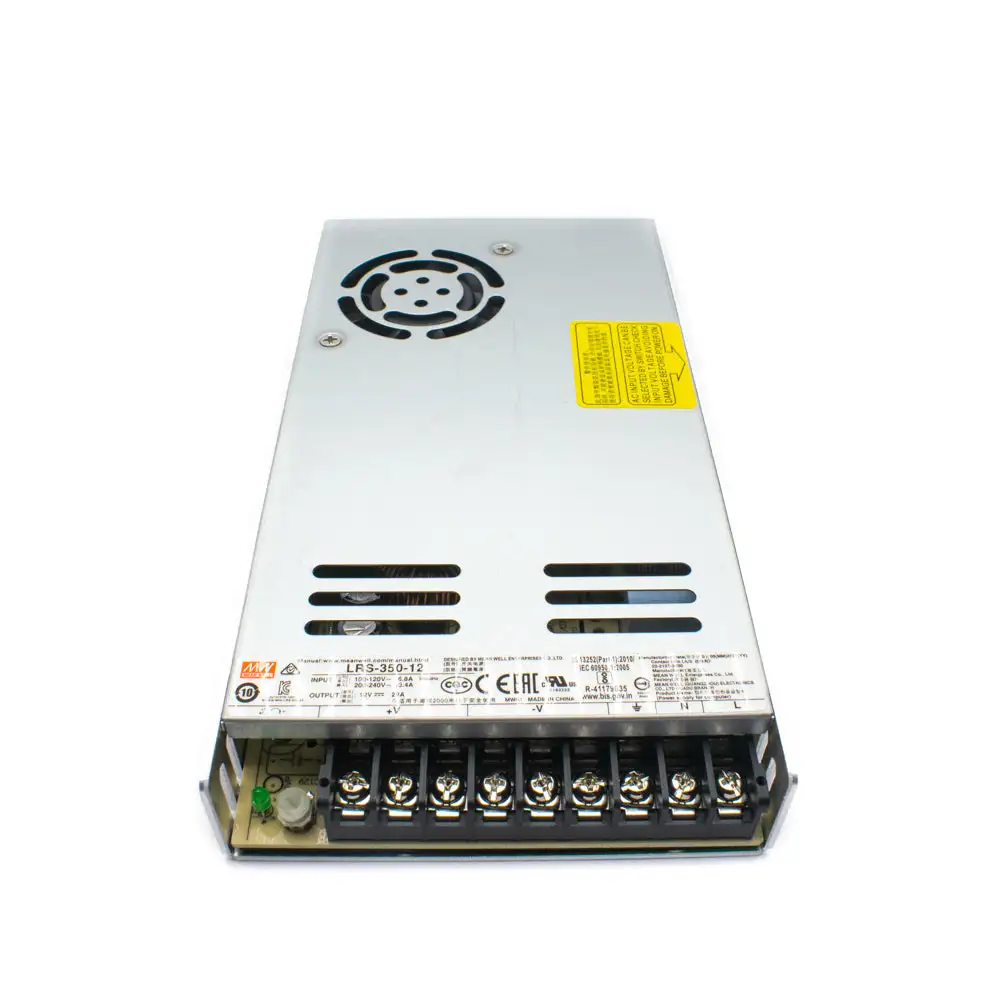

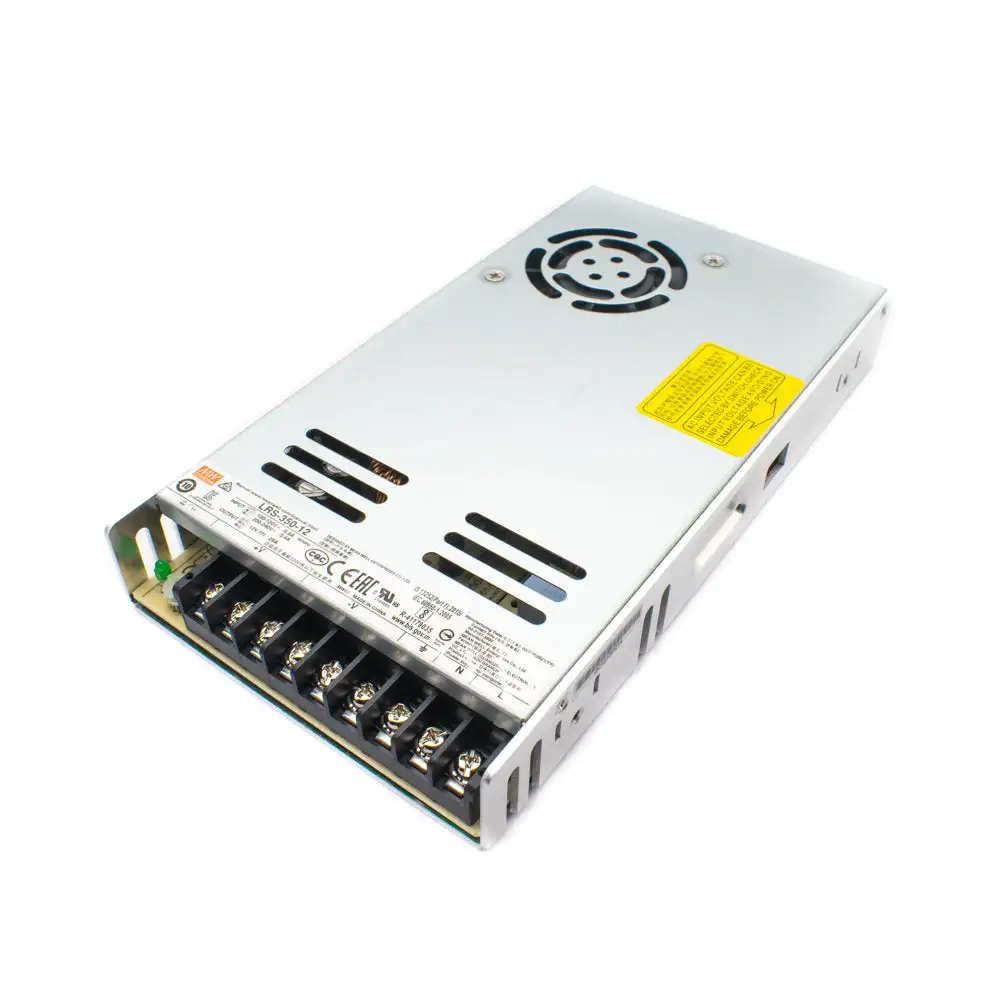

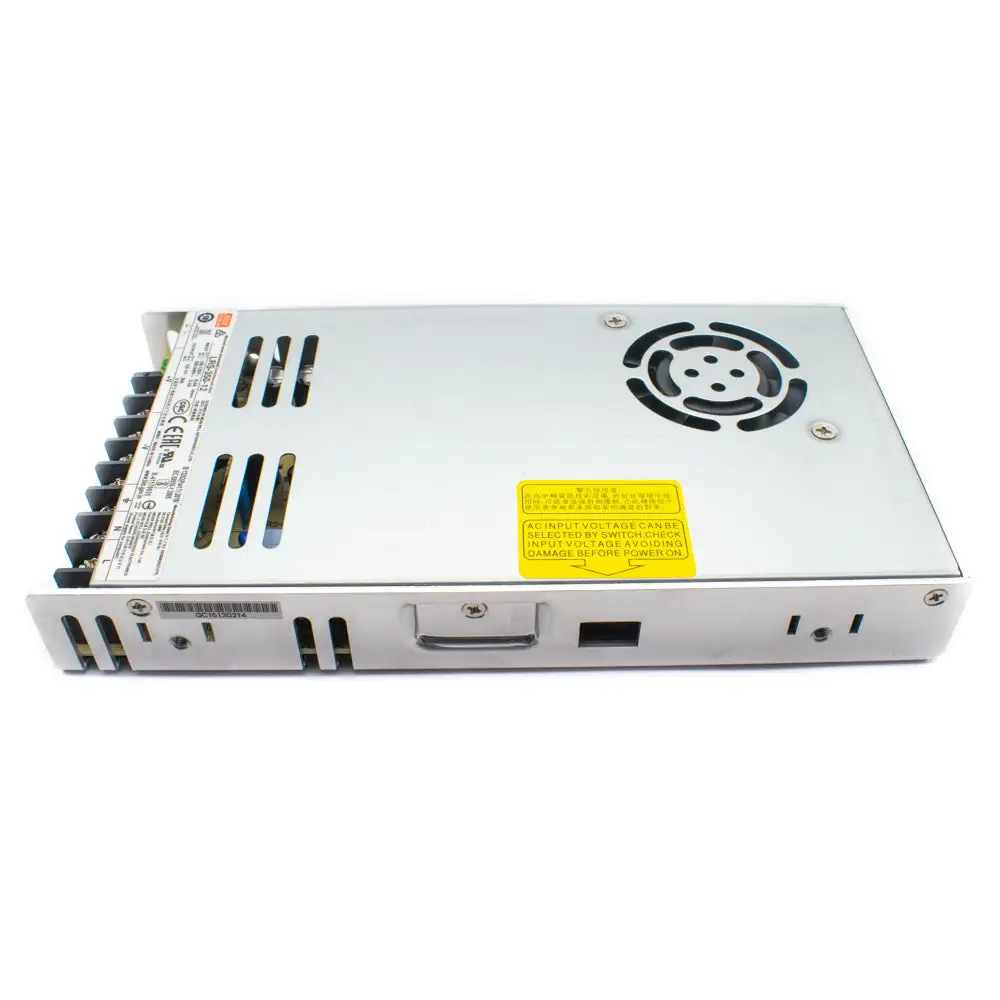

12V 348W Meanwell SMPS (LRS-350-12)

LRS-350 series is a 350W single-output enclosed type power supply with 30mm of low profile design. The AC input is 85~264VAC which could be directly supplied from the house supplied voltage. The output from SMPS will be 12V. The SMPS has high efficiency up to 85%, the design is of metallic mesh case which enhances the heat dissipation of LRS-350 that the whole series operates from -25°C through +70°C. It has extremely low no-load power consumption (less than 0.75W), which allows the end system to easily meet the worldwide energy requirement. LRS-350 has complete protection functions and 5G antivibration capability; it complies with international safety regulations such as UL60950-1. LRS-350 series can be used for many purposes with the best performance from it.

Feature:

Applications:

16ms/230VAC 12ms/115VAC at full load

47~63Hz

-30°C to 70°C

20~90%

215*115*30mm (L*W*H)
