11R154C RLB Series Radial Lead Inductors

Inductors, like capacitors, can hold a charge or power within them after a certain time and can maintain that power source even when an outside supply is removed. An inductor stores energy in the form of a magnet. The defining feature of an inductor is a resistance to change in current

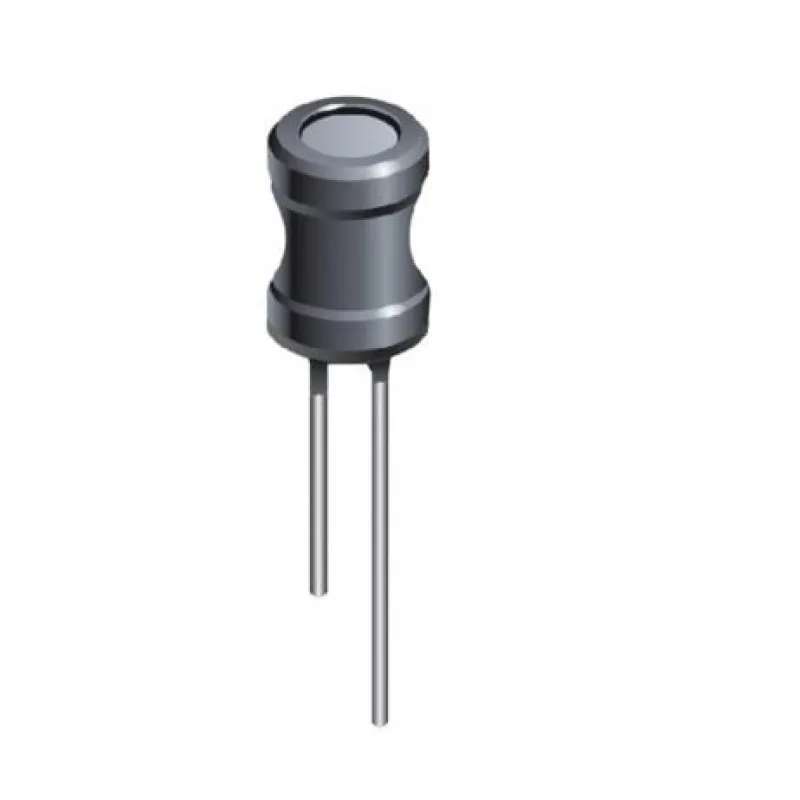

A radial inductor has a similar design to radial electrolytic capacitors whereby the inductor stands upright on the PCB and has two legs protruding from the bottom

Applications:

1. Power supplies
2. DC/DC converters
3. General use

Note: For more information refere Datasheet

Specifications:

1. Inductance: 470 uH
2. Tolerance: 10 %
3. Maximum DC Current: 500 mA
4. Maximum DC Resistance: 1.3 Ohms
5. Operating Temperature: 20 C to + 80 C
6. Self Resonant Frequency: 1.8 MHz
7. Termination: Standard
8. Mounting Style: PCB Mount
9. Core Material: Ferrite

Packages Includes:

1 x 11R154C RLB Series Radial Lead Inductors
