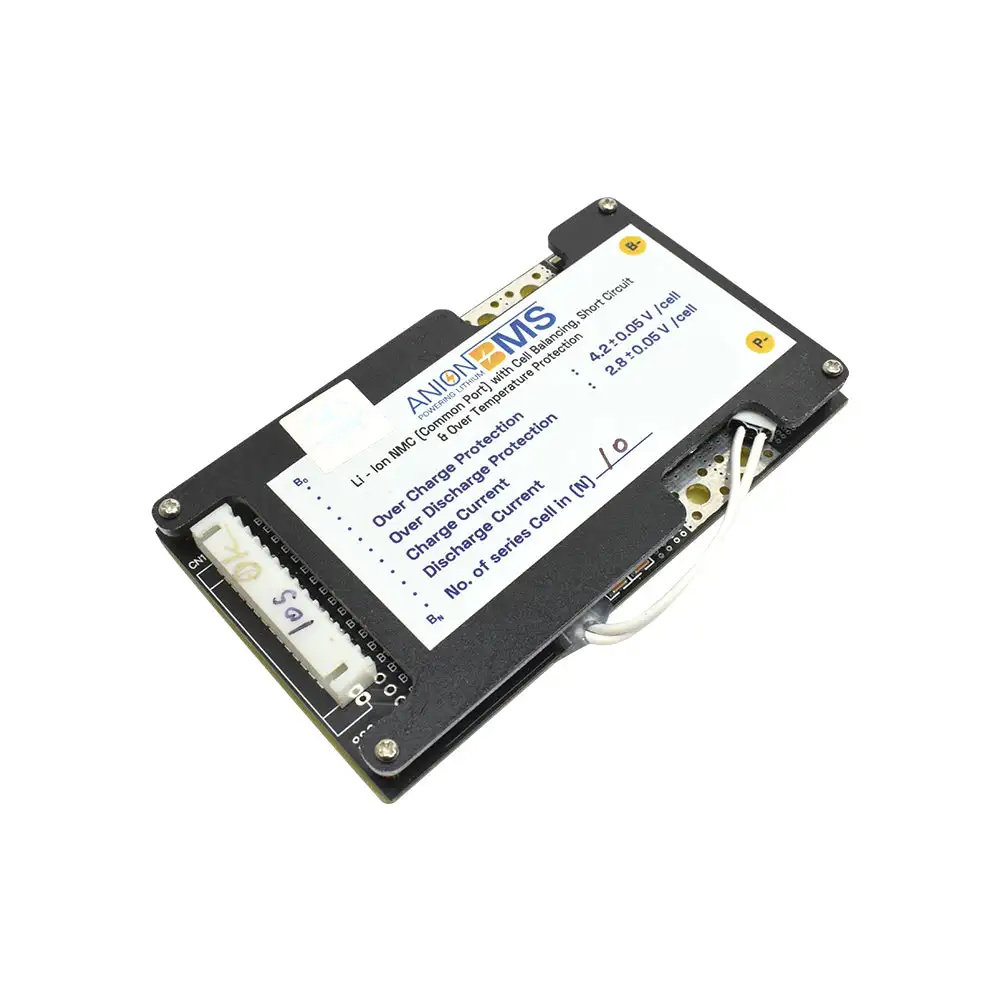

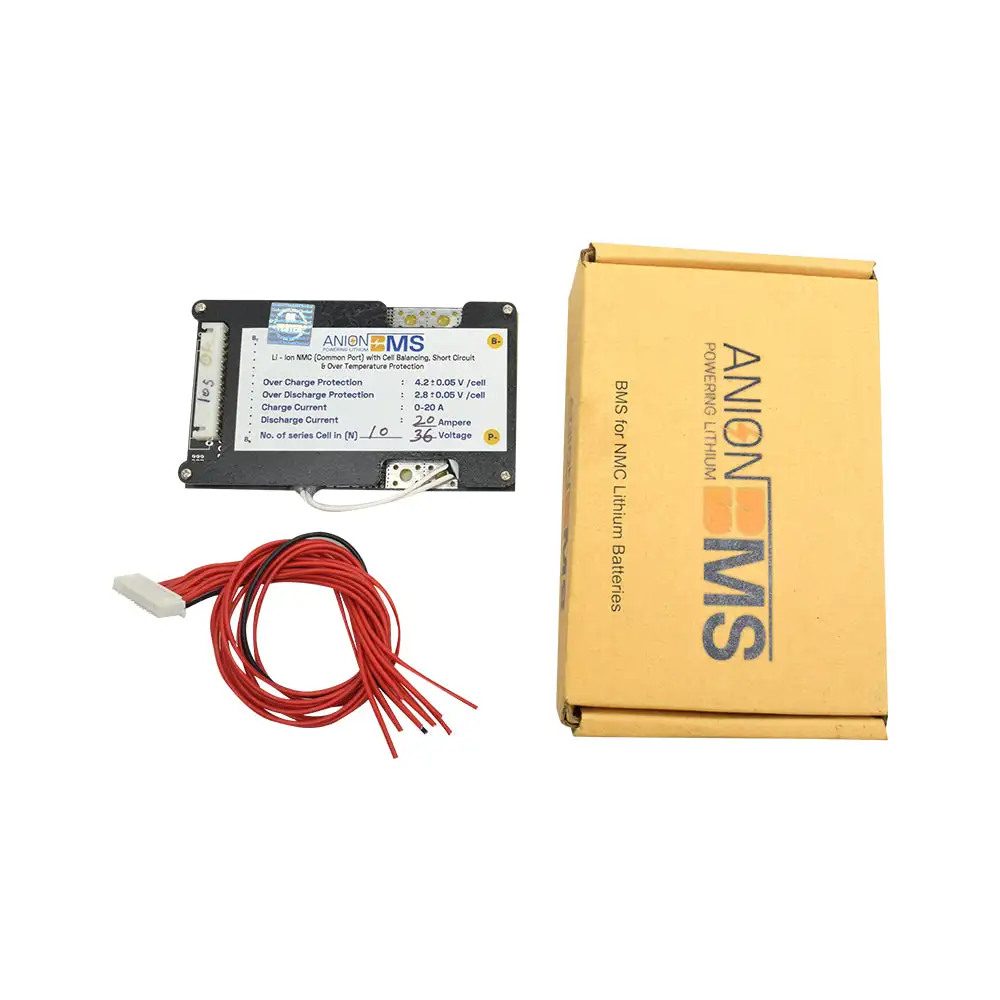

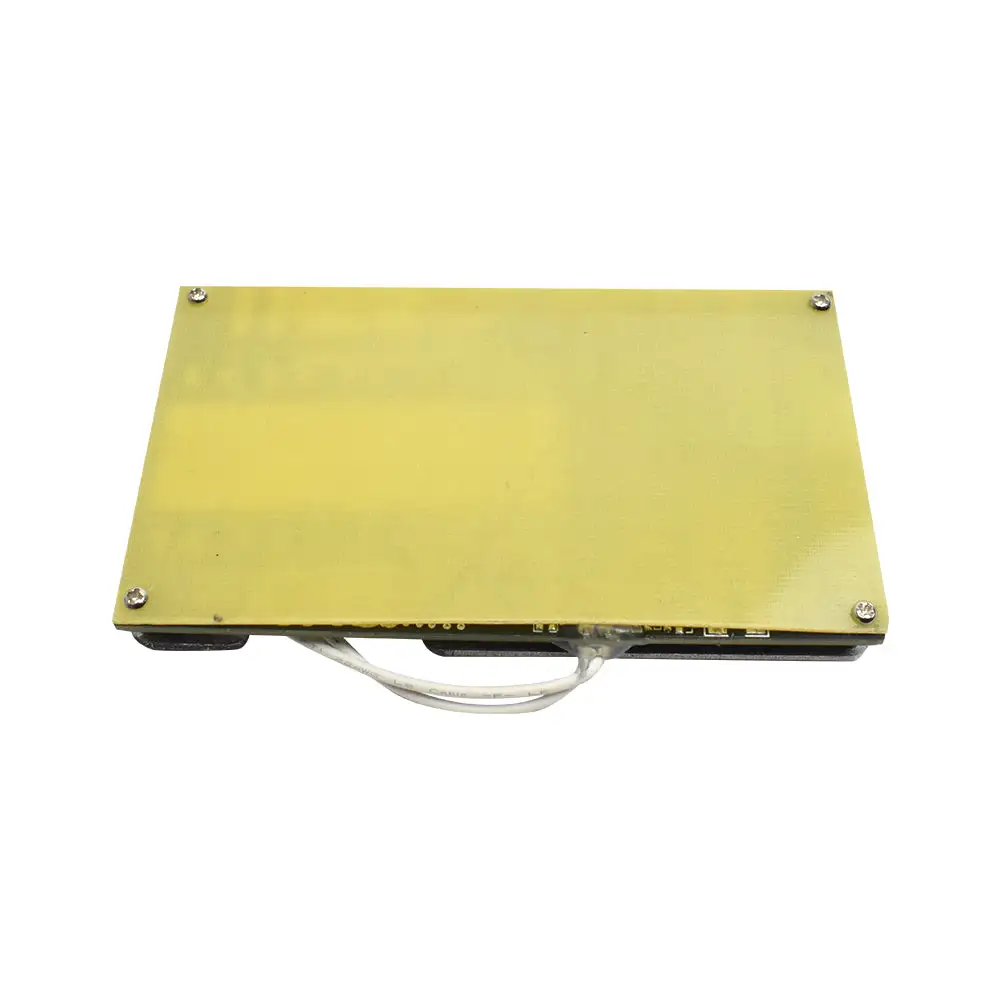

10S 37V 20A Anion BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port)

A BMS or protection board is any electronic control circuit that monitors, manages, and regulates the charging and discharging of any rechargeable battery (cell or combination of cells called a battery). The lithium-ion batteries can be used only in specified conditions called the safe operating area. Therefore BMS is necessary to monitor the battery state, ensure the safety of operation, and ensure long battery life. The battery characteristics to be monitored include its state of charge, safe operating area, voltage, current, temperature, individual cell voltage, battery capacity and many more.

The main task of battery management systems is to ensure the optimal use of the residual energy in a battery. To avoid loading of batteries, BMS protects the battery from:

Protection:This BMS offers below mentioned protection of utmost importance.

Applications:This protection board is widely used in 18650 Li-ion battery packs and offers multi-scenario applications.
