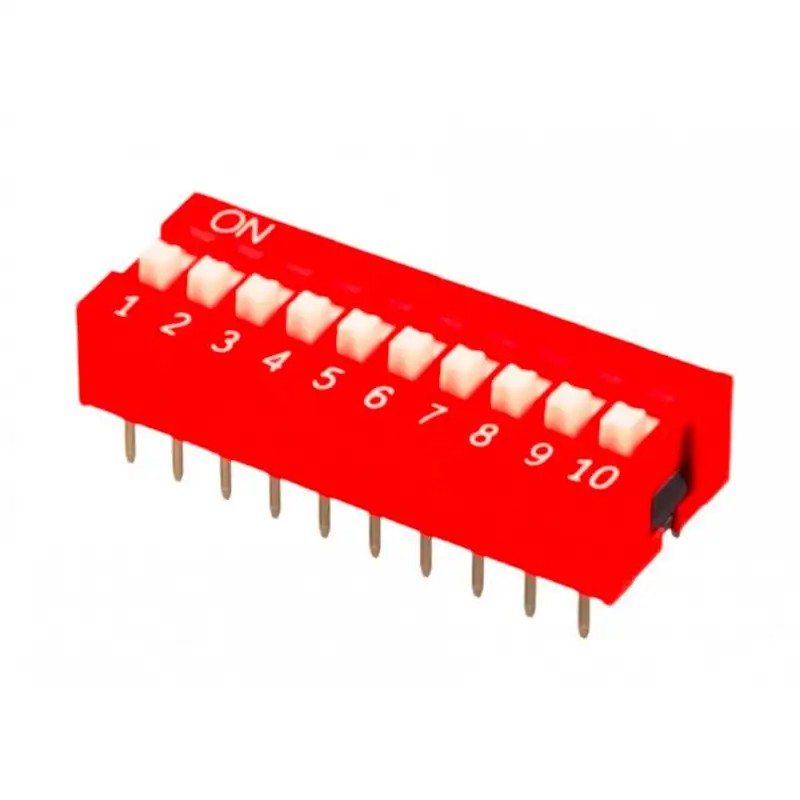

10 Way DIP Switch

An electronic switch is an electronic component or device that can switch an electrical circuit, interrupting the current or diverting it from one conductor to another. 10 positions or 10 in 1, Dual In-Line Package (DIP) SPDT slide switch, namely the more traditional toggle switch is a set of electrical switches which is packed in a small box or housing. This DIP single pole double throw (SPDT) switch forces the operator to choose between connecting to either one of two terminals as such the switch will remain connected to one or the other, and the two terminals will never be connected. This switch is designed to be easily mounted on printed circuit boards to provide various ranges of input to the electronic device. You can easily control the input by using the DIP switch.

Features and Specifications:-

• No of Pins : 10 way
• Type : 10 DIP (Dual-In-Line)
• Max Operating Voltage : 50 VDC
• Max Current (Carrying Capacity) : 150 mA DC
• Max Switching : 0.8 W
• Contact Resistance : <100 mΩ
• Insulation Resistance (at 100 VDC) : >100 mΩ
• Test Voltage (1 minute) : 500 VAC
• Life Expectancy : 2000 operations
• Operating Temperature : -20 to +80 C
• Mounting Type : Through Hole
• Pitch: 2.54 mm

Package Includes:-

1 x 10 Way DIP Switch
